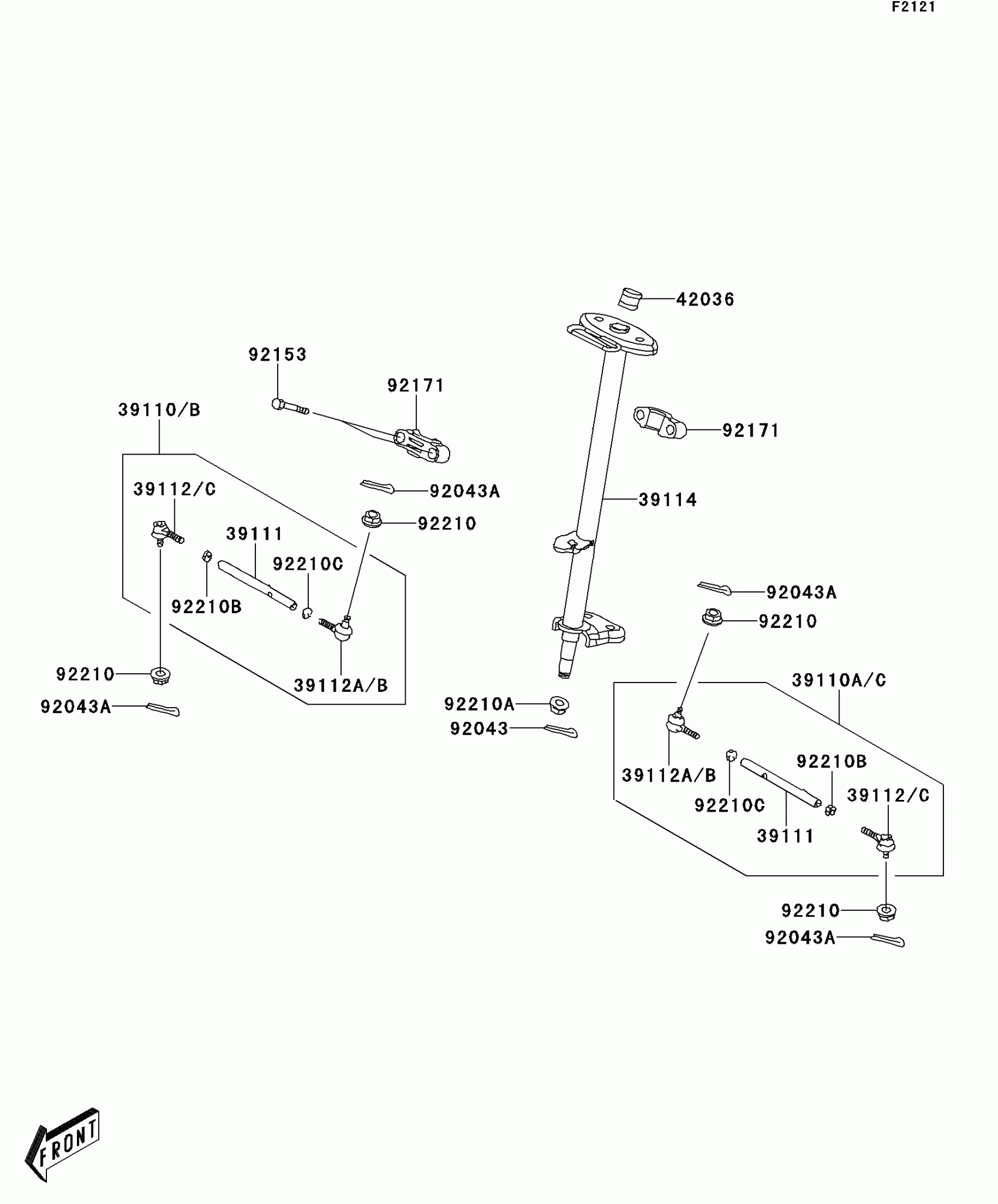

Kawasaki KFX®90 Steering Shaft Diagram

Description

Price

39110B

ROD-ASSY-TIE,RH

39110-Y003

$75.53

39110C

ROD-ASSY-TIE,LH

39110-Y004

$75.53

39111

ROD-TIE

39111-Y001

$18.75

39112B

RODEND-TIE

39112-Y003

$37.46

39112C

RODEND-TIE

39112-Y004

$37.46

39114

SHAFT-COMP-STRG

39114-Y001

$75.67

42036

SLEEVE

42036-Y001

$2.51

92043

PIN,3X25

92043-Y009

$0.76

92043A

PIN,2.5X20

92043-Y010

$0.75

92153

BOLT,FLANGE,8X65

92153-Y040

Unavailable

92171

CLAMP,STEERING SHAFT

92171-Y006

$8.69

92210

NUT,10MM

92210-Y010

$3.23

92210A

NUT,14MM

92210-Y012

$7.28

92210B

NUT,10MM

92210-Y021

$1.90

92210C

NUT,10MM

92210-Y022

$1.90
