Description

Price

13061

BOSS,STARTER CLUTCH

13061-Y001

$48.47

13107

SHAFT,STARTER REDUCTION

13107-Y005

$11.83

13193

CLUTCH-ASSY-ONEWAY

13193-Y001

$62.02

13280

HOLDER,STARTER REDUCTION

13280-Y003

$14.53

16085

GEAR,OIL PUMP

16085-Y001

$7.93

16085A

GEAR,STARTER

16085-Y008

$50.10

16165

SEPARATOR,OIL

16165-Y001

$2.63

21163

STARTER-ELECTRIC

21163-Y002

$158.88

39076

LIMITER,STARTER REDUCTION

39076-Y001

$58.51

49042

PUMP-OIL

49042-Y001

$47.20

92033

RING-SNAP

92033-Y008

$3.24

92043

PIN,DOWEL,4X65

92043-Y015

$0.97

92045A

BEARING-BALL,6005LLUC3/L542

92045-Y012

Unavailable

92057

CHAIN,OIL PUMP

92057-Y003

$23.88

92122

ROLLER

92122-Y004

$1.83

92122A

ROLLER,10.2X11.5

92122-Y005

$2.29

92122B

ROLLER,6X10

92122-Y006

$1.71

92145

SPRING

92145-Y010

$0.87

92153

BOLT,FLANGE,6X12

92153-Y046

$0.83

92153A

BOLT,FLANGE,6X25

92153-Y051

$0.90

92153B

BOLT,SOCKET,6X12

92153-Y059

$1.15

92172

SCREW,3X10

92172-Y006

$0.81

92200

WASHER,24X8.5

92200-Y013

$1.11

92210

NUT,24MM

92210-Y001

$3.34

92210A

NUT,6MM

92210-Y027

$0.80

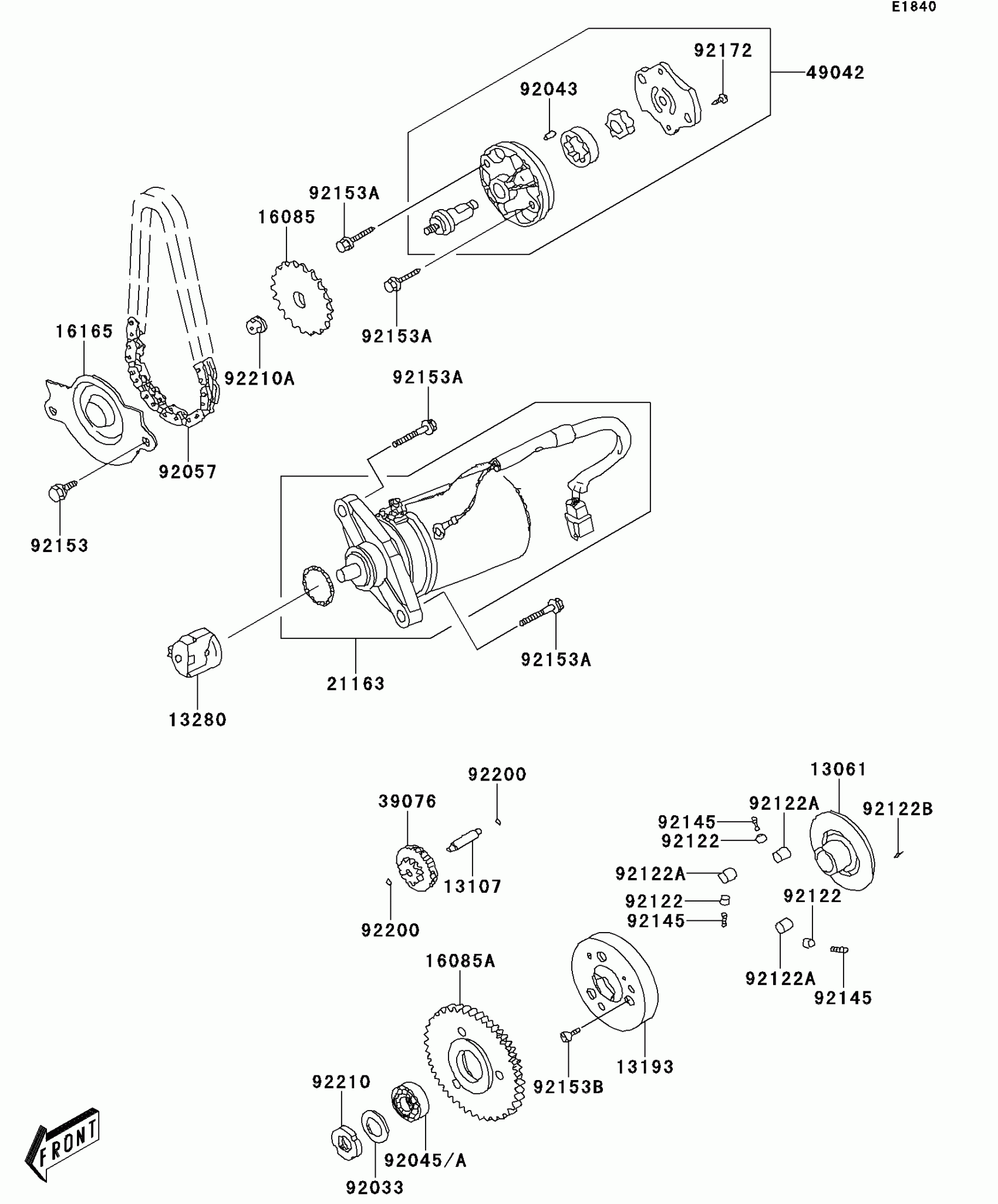

Kawasaki KFX®90 Starter Motor Diagram
