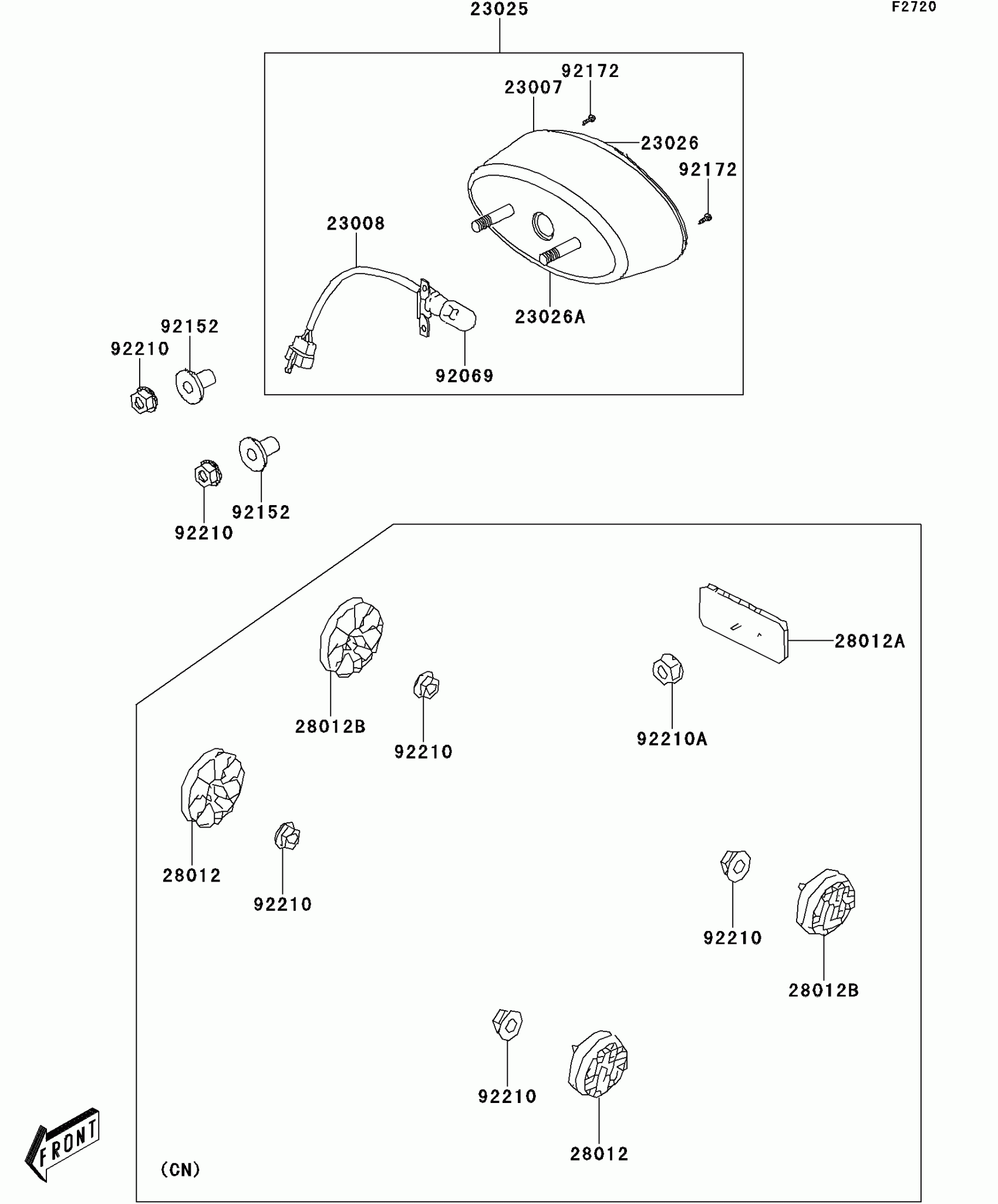

Kawasaki KFX®90 Taillight(s) Diagram

Description

Price

23007

LENS-COMP,TAIL LAMP

23007-Y001

$22.52

23008

SOCKET-ASSY,TAIL LAMP

23008-Y001

Unavailable

23025

LAMP-TAIL

23025-Y001

Unavailable

23026

LENS,TAIL LAMP

23026-Y001

$18.32

23026A

LENS,LICENSE

23026-Y002

$3.52

28012

REFLECTOR-REFLEX

28012-Y002

$7.73

28012A

REFLECTOR-REFLEX

28012-Y003

$5.75

28012B

REFLECTOR-REFLEX

28012-Y004

$7.73

92069

BULB

92069-Y001

$4.93

92152

COLLAR

92152-Y013

$0.87

92172

SCREW,4X16

92172-Y026

$0.97

92210

NUT,6MM

92210-Y027

$0.80

92210A

NUT,FLANGE,5MM

92210-Y033

$0.76

92210

NUT,6MM

92210-Y027

$0.80
