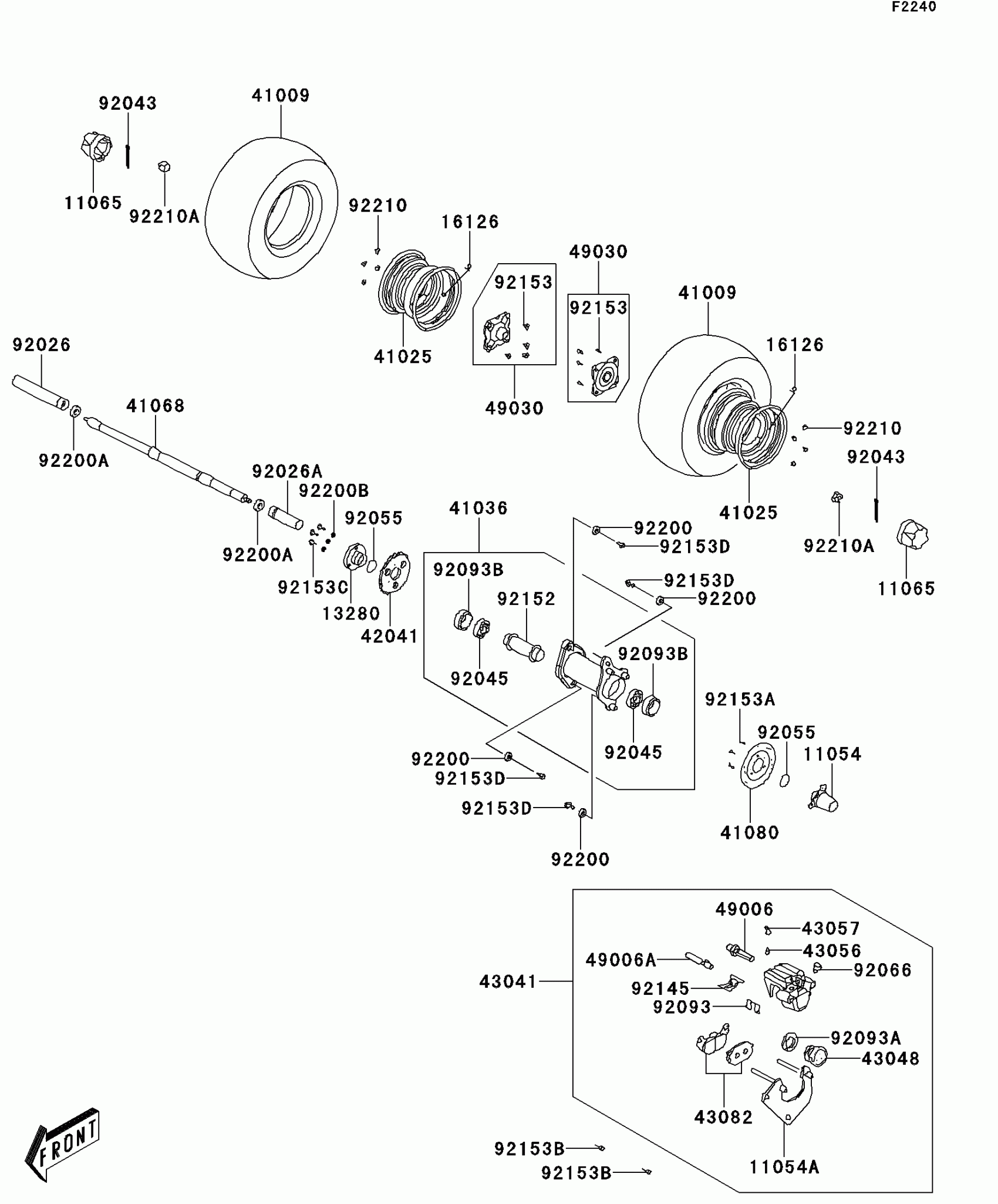

Kawasaki KFX®90 Rear Hub Diagram

#

Description
Price

11054

BRACKET,BRAKE DISK

11054-Y005

$61.06

11054A

BRACKET

11054-Y008

$26.69

11065

CAP,WHEEL

11065-Y002

$3.10

13280

HOLDER,SPROCKET

13280-Y004

Unavailable

16126

VALVE,RIM

16126-Y001

$5.69

41009

TIRE,RR

41009-Y001

$120.81

41025

RIM,SILVER

41025-Y001-936

$82.09

41036

HUB-ASSY,RR,BLACK

41036-Y001-935

$129.41

41068

AXLE,RR

41068-Y001

$153.91

41080

DISC,RR

41080-Y001

$94.74

42041

SPROCKET-HUB

42041-Y001

Unavailable

43041

CALIPER-ASSY,RR

43041-Y001

$177.83

43048

PISTON-CALIPER

43048-Y001

$8.80

43056

BREATHER-BRAKE

43056-Y001

$3.14

43057

CAP-BREATHER

43057-Y001

$1.63

43082

PAD-ASSY-BRAKE

43082-Y001

$21.45

49006

BOOT

49006-Y001

$9.42

49006A

BOOT

49006-Y002

$2.93

49030

HUB,RR

49030-Y001

$65.75

92026

SPACER,REAR AXLE,RH

92026-Y005

Unavailable

92026A

SPACER,REAR AXLE,LH

92026-Y006

Unavailable

92043

PIN,3X25

92043-Y011

$0.78

92045

BEARING-BALL,6006

92045-Y008

$28.03

92055

RING-O,30MM

92055-Y015

$1.86

92066

PLUG

92066-Y001

$1.42

92093

SEAL,DUST

92093-Y005

$1.42

92093A

SEAL,PISTON

92093-Y006

$5.81

92093B

SEAL,DUST

92093-Y009

$3.94

92145

SPRING,PAD

92145-Y012

$3.54

92152

COLLAR

92152-Y007

$15.80

92153

BOLT

92153-Y005

$2.19

92153A

BOLT

92153-Y007

$3.98

92153B

BOLT,FLANGE,8X28

92153-Y012

$2.25

92153C

BOLT,FLANGE,8X20

92153-Y033

$1.14

92153D

BOLT,FLANGE,12X28

92153-Y044

$3.78

92200

WASHER,12.2X28X4

92200-Y012

$1.57

92200A

WASHER,14MM

92200-Y014

$3.20

92200B

WASHER,8MM

92200-Y019

$0.80

92210

NUT,10MM

92210-Y010

$2.20

92210A

NUT,14MM

92210-Y025

$4.71
