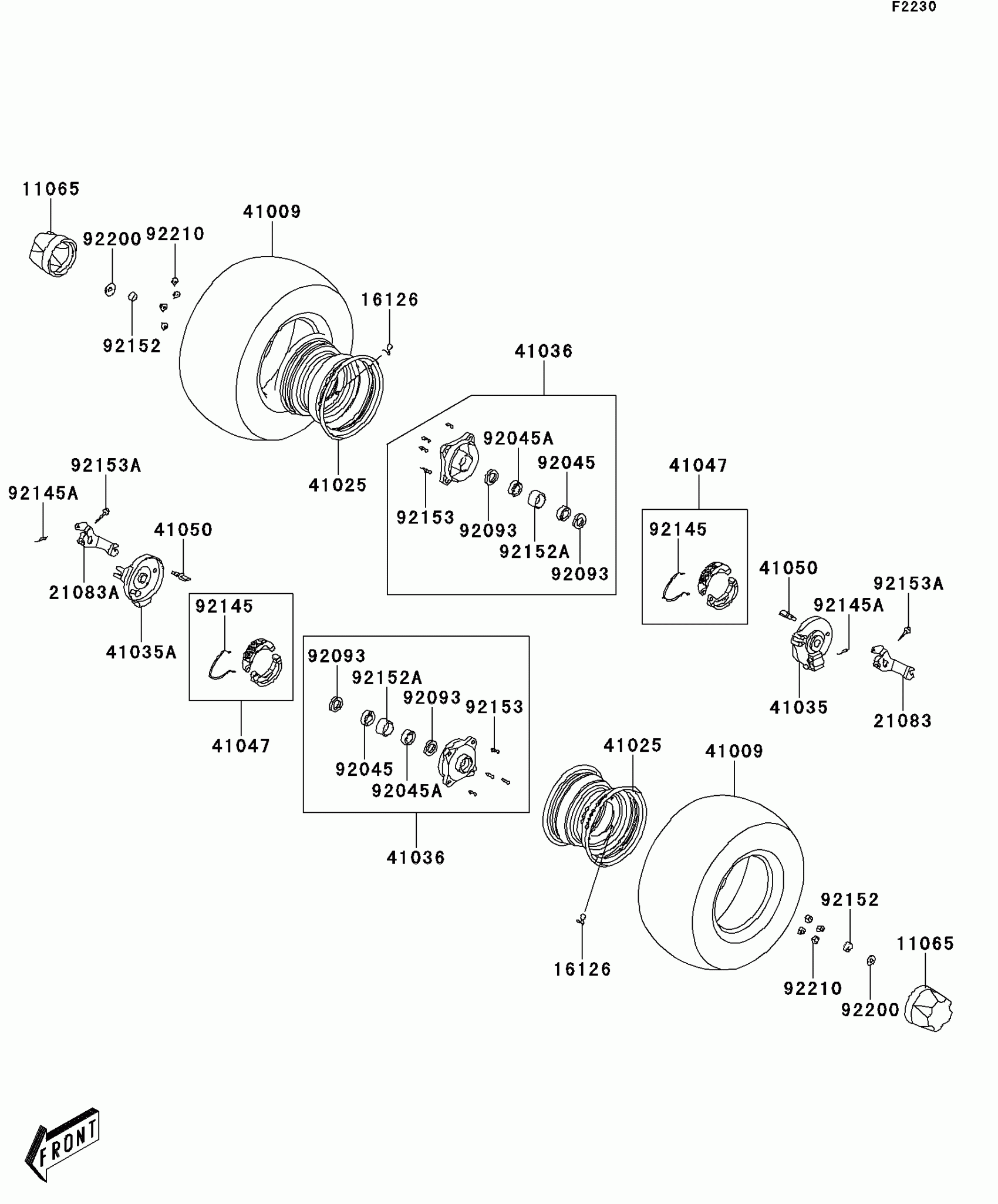

Kawasaki KFX®90 Front Hub Diagram

#

Description
Price

11065

CAP,WHEEL

11065-Y002

$3.10

16126

VALVE,RIM

16126-Y001

$5.69

21083

ARM,BRAKE,RH

21083-Y001

$10.75

21083A

ARM,BRAKE,LH

21083-Y002

$10.75

41009

TIRE,FR

41009-Y003

$112.60

41025

RIM,SILVER

41025-Y003-936

$80.62

41035

PANEL-ASSY-BRAKE,FR,RH,SILVER

41035-Y001-934

$57.98

41035A

PANEL-ASSY-BRAKE,FR,LH,SILVER

41035-Y002-934

$57.98

41036

HUB-ASSY,FR,SILVER

41036-Y002-936

$68.24

41047

SHOE-ASSY-BRAKE,FR

41047-Y001

$22.76

41050

CAM-BRAKE

41050-Y001

$12.53

92045

BEARING-BALL,6002

92045-Y010

Unavailable

92045A

BEARING-BALL,6003

92045-Y011

$12.51

92093

SEAL,22X35X7

92093-Y008

$1.24

92145

SPRING,BRAKE SHOE

92145-Y013

$2.51

92145A

SPRING,RETURN

92145-Y014

$1.42

92152

COLLAR

92152-Y008

$2.32

92152A

COLLAR

92152-Y009

$5.05

92153

BOLT,STUD,10X17

92153-Y017

$2.54

92153A

BOLT,FLANGE,5X24

92153-Y021

$1.61

92200

WASHER,12MM

92200-Y011

$3.34

92210

NUT,10MM

92210-Y010

$2.20
