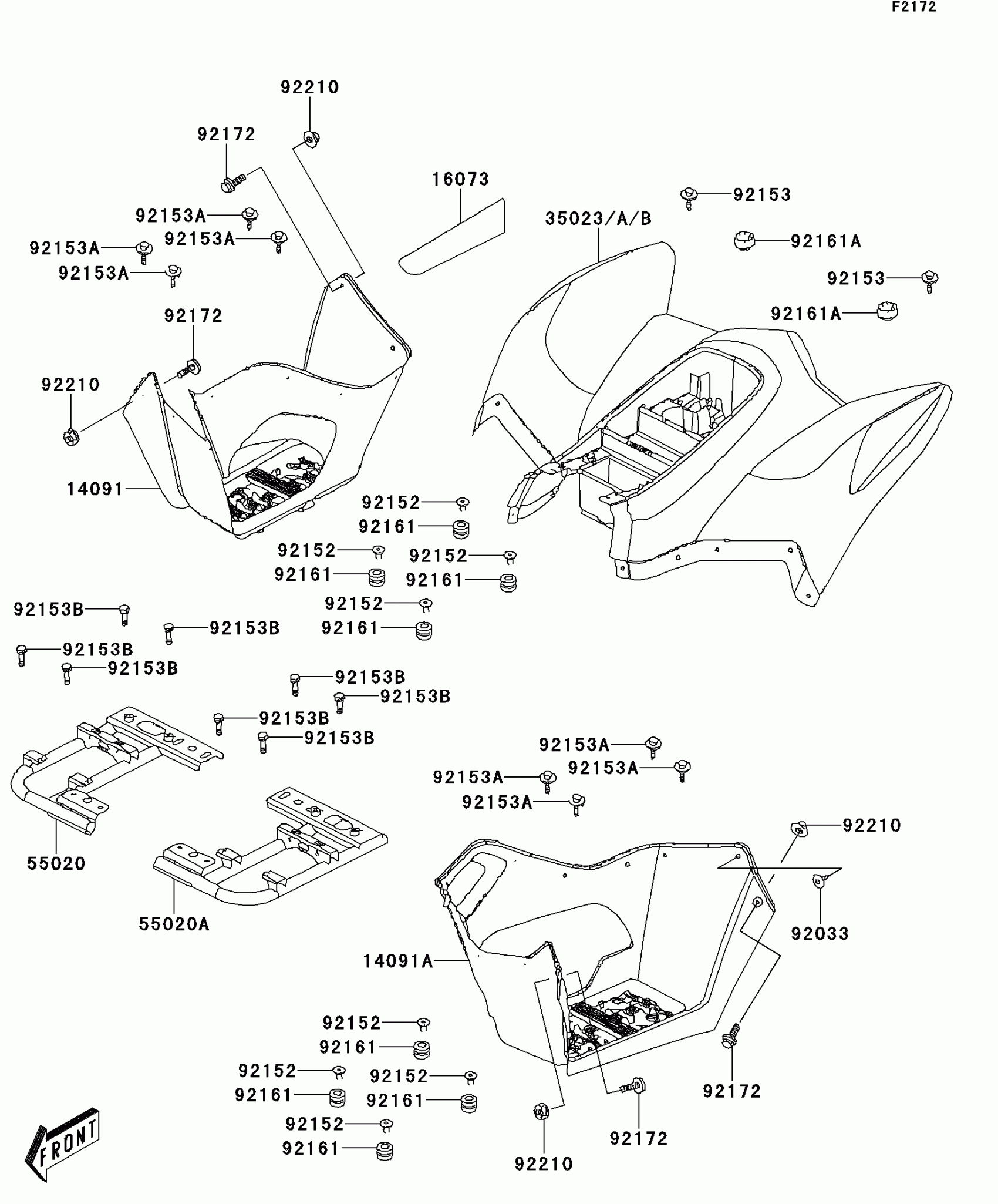

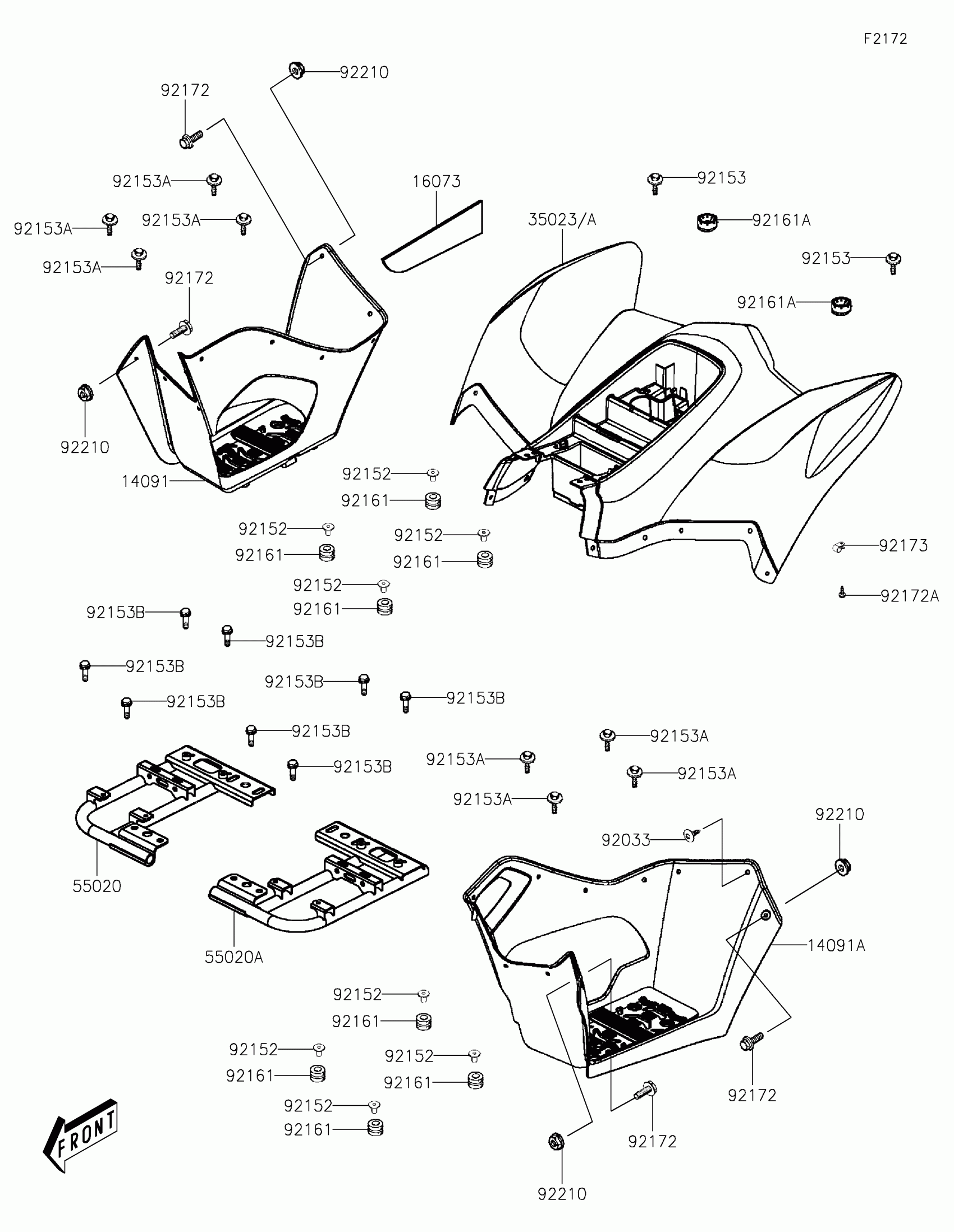

Kawasaki KFX®90 Rear Fender(s) Diagram

Description

Price

14091

COVER,SIDE,RH,S.BLACK

14091-Y017-933

$106.11

14091A

COVER,SIDE,LH,S.BLACK

14091-Y018-933

$106.11

16073

INSULATOR

16073-Y003

$10.71

35023

FENDER-REAR,L.GREEN

35023-Y005-930

$102.07

35023A

FENDER-REAR,B.WHITE

35023-Y005-932

$102.07

55020

GUARD,SIDE,RH

55020-Y002

$52.78

55020A

GUARD,SIDE,LH

55020-Y003

$52.78

92033

RIVET

92033-Y010

$1.63

92152

COLLAR

92152-Y014

$1.90

92153

BOLT,6X16

92153-Y018

$1.30

92153A

BOLT,6X20

92153-Y019

$1.30

92153B

BOLT,FLANGE,8X16

92153-Y032

$1.47

92161

DAMPER

92161-Y003

$1.65

92161A

DAMPER

92161-Y005

$1.74

92172

SCREW,6X16

92172-Y004

$3.20

92172A

SCREW,4X12

92172-Y019

$1.02

92173

CLAMP

92173-Y088

$2.60

92210

NUT

92210-Y031

$1.90
