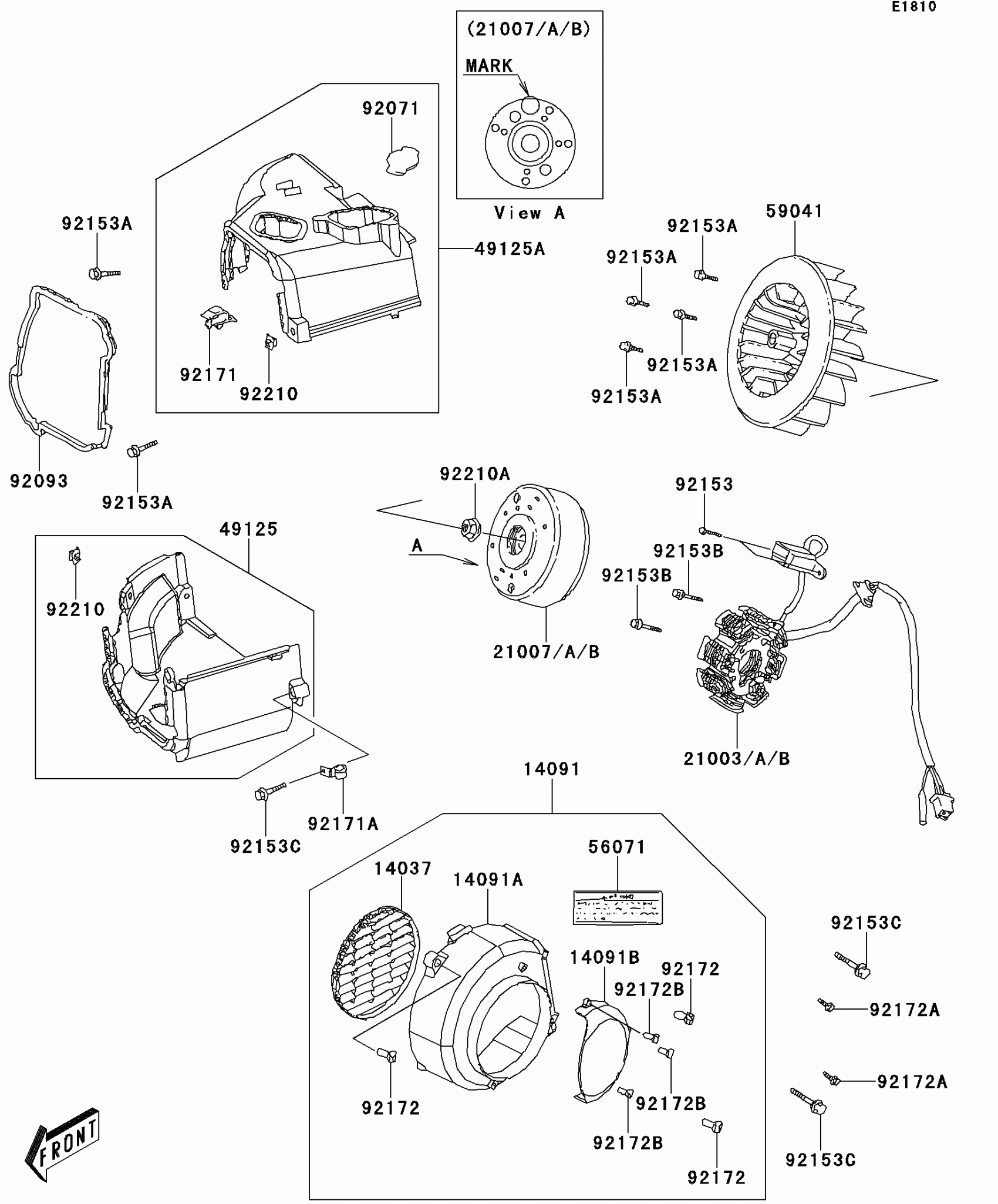

Kawasaki KFX®90 Generator Diagram
#
Description
Price
14037
SCREEN
14037-Y002
$6.00
14091
COVER,FAN
14091-Y003
$20.84
14091A
COVER,FAN
14091-Y011
$14.01
14091B
COVER
14091-Y012
$14.01
21003
STATOR,D402
21003-Y002
$117.83
21003A
STATOR,D406
21003-Y005
$117.83
21003B
STATOR,D414
21003-Y006
$117.83
21007
ROTOR,D402
21007-Y001
$102.93
21007A
ROTOR,D406
21007-Y005
$102.93
21007B
ROTOR,D414
21007-Y006
$102.93
49125
SHROUD,LWR
49125-Y002
$18.66
49125A
SHROUD,UPP
49125-Y004
$20.66
56071
LABEL-WARNING
56071-Y002
$4.67
59041
FAN
59041-Y001
$14.19
92071
GROMMET
92071-Y001
$1.63
92093
SEAL,SHROUD
92093-Y004
$11.58
92153
BOLT,5X12
92153-Y015
$0.82
92153A
BOLT,FLANGE,6X16
92153-Y047
$2.60
92153B
BOLT,FLANGE,6X20
92153-Y049
$0.85
92153C
BOLT,FLANGE,6X25
92153-Y051
$1.14
92171
CLAMP
92171-Y001
$1.63
92171A
CLAMP
92171-Y002
$1.92
92172
SCREW,4X12
92172-Y019
$1.02
92172A
SCREW,5X16
92172-Y021
$0.79
92172B
SCREW,4X10
92172-Y024
$0.76
92210
NUT,6MM
92210-Y011
$1.40
92210A
NUT,10MM
92210-Y029
$1.58
