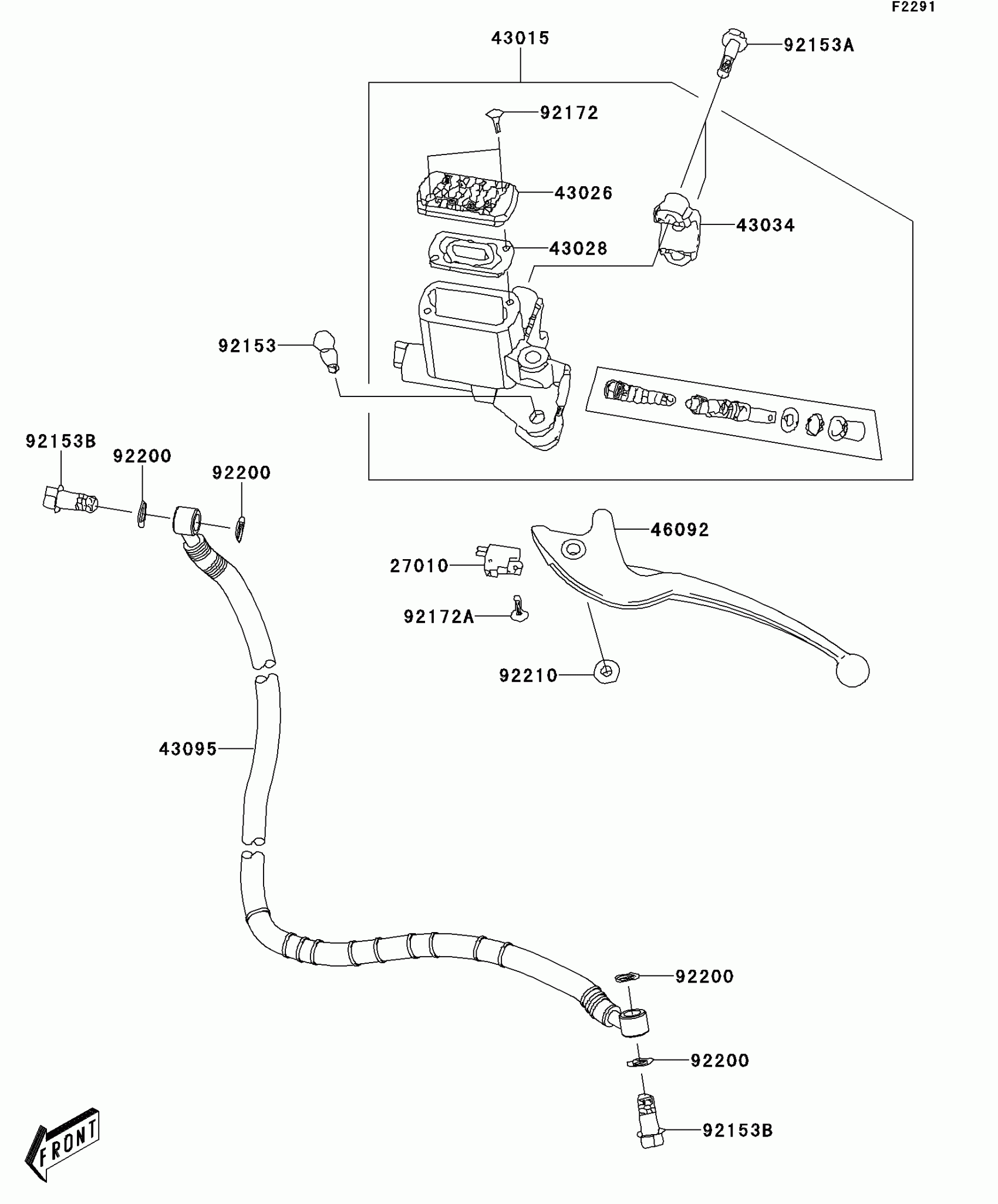

Kawasaki KFX®90 Front Master Cylinder Diagram

Description

Price

27010

SWITCH,STOP

27010-Y004

$15.33

43015

CYLINDER-ASSY-MASTER

43015-Y001

$150.48

43026

CAP-BRAKE

43026-Y001

$7.16

43028

DIAPHRAGM

43028-Y001

$11.64

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-Y002

$6.00

43095

HOSE-BRAKE

43095-Y001

$106.63

46092

LEVER-GRIP,LH

46092-Y003

$17.70

92153

BOLT

92153-Y008

$1.02

92153A

BOLT,SOCKET,6X23

92153-Y010

$3.12

92153B

BOLT,10X22

92153-Y062

$3.74

92172

SCREW,4X12

92172-Y011

$1.90

92172A

SCREW,4X12

92172-Y014

$0.76

92200

WASHER

92200-Y015

$3.49

92210

NUT,6MM

92210-Y026

$1.40
