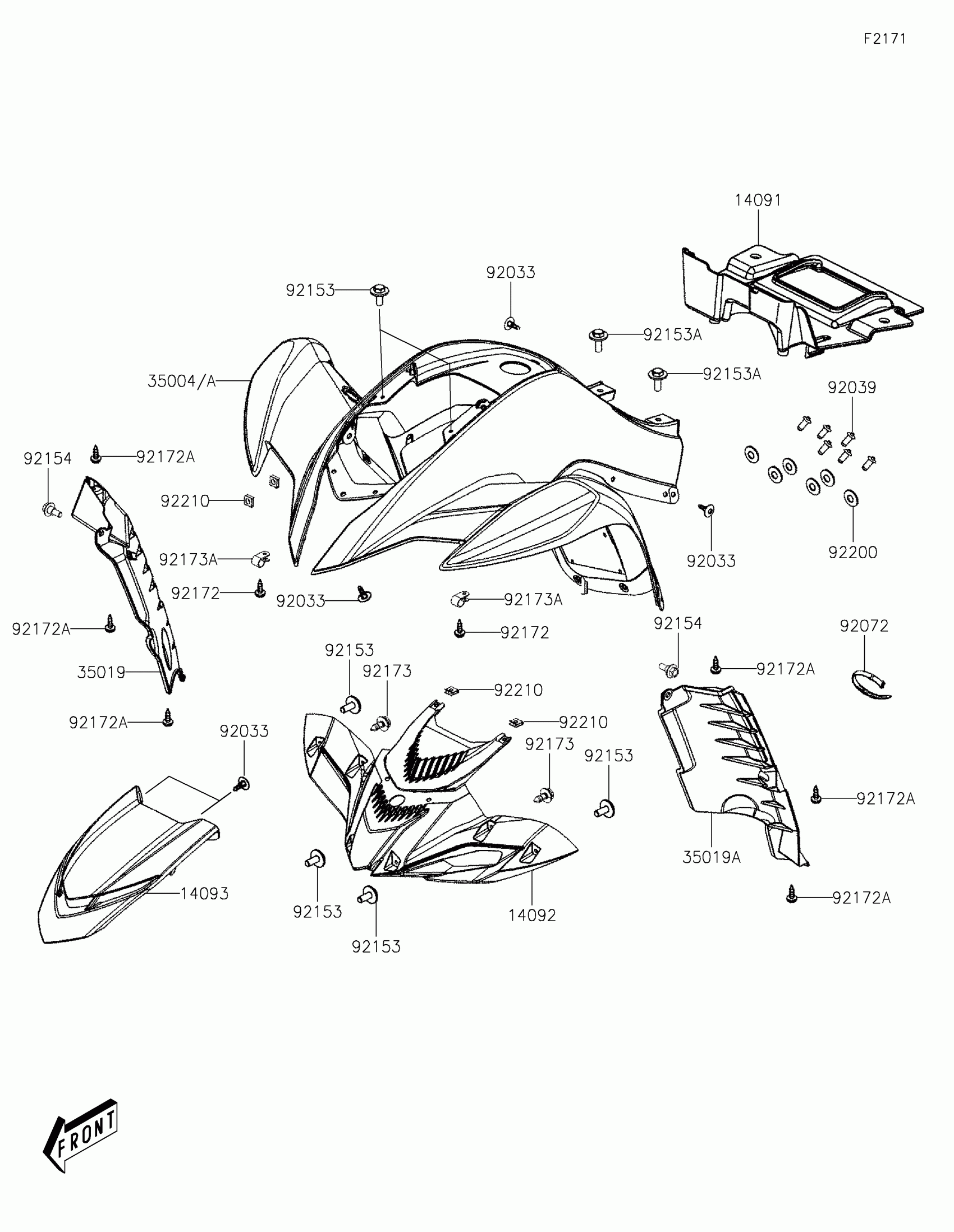

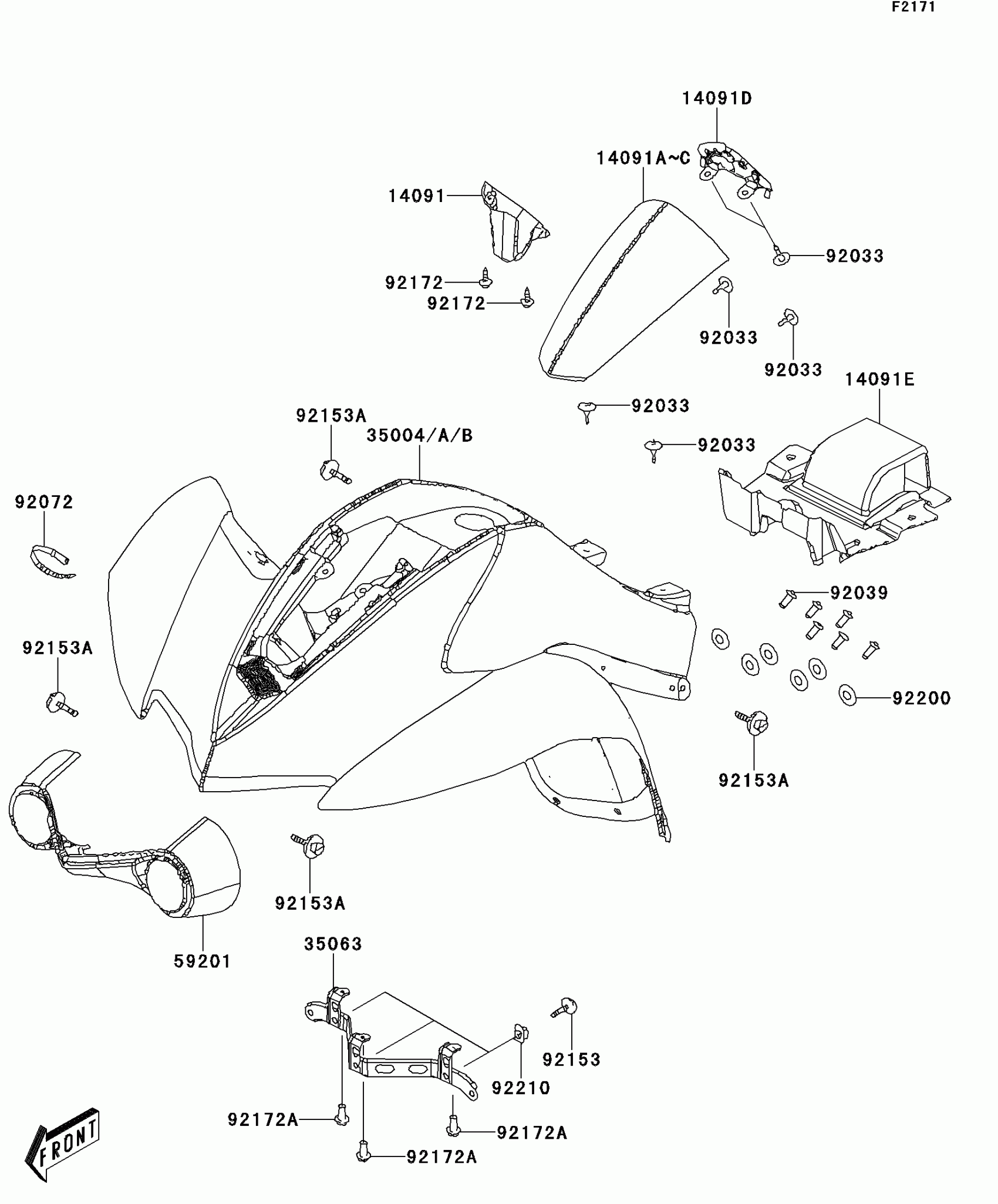

Kawasaki KFX®90 Front Fender(s) Diagram

Description

Price

14091

COVER,INNER,BLACK

14091-Y013-933

$4.20

14092

COVER,HEAD LAMP,S.BLACK

14092-Y067-933

$34.98

14093

COVER,CENTER,S.BLACK

14093-Y060-933

$28.81

35004

FENDER-FRONT,L.GREEN

35004-Y014-930

$112.95

35004A

FENDER-FRONT,B.WHITE

35004-Y014-932

$112.95

35019

FLAP,MUDGUARD,RH,S.BLACK

35019-Y006-933

$54.64

35019A

FLAP,MUDGUARD,LH,S.BLACK

35019-Y007-933

$54.64

92033

RIVET

92033-Y010

$1.63

92039

RIVET,3.2X9.8

92039-Y001

$0.76

92072

BAND

92072-Y003

$1.90

92153

BOLT,5X16

92153-Y013

$0.76

92153A

BOLT,6X16

92153-Y018

$1.30

92154

BOLT,FLANGE,6MM

92154-Y181

$8.44

92172

SCREW,4X12

92172-Y019

$1.02

92172A

SCREW,TAPPING,5X16

92172-Y020

$1.63

92173

CLAMP

92173-Y019

$1.74

92173A

CLAMP

92173-Y088

$2.60

92200

WASHER,3MM

92200-Y017

$0.76

92210

NUT,5MM

92210-Y016

$1.40
