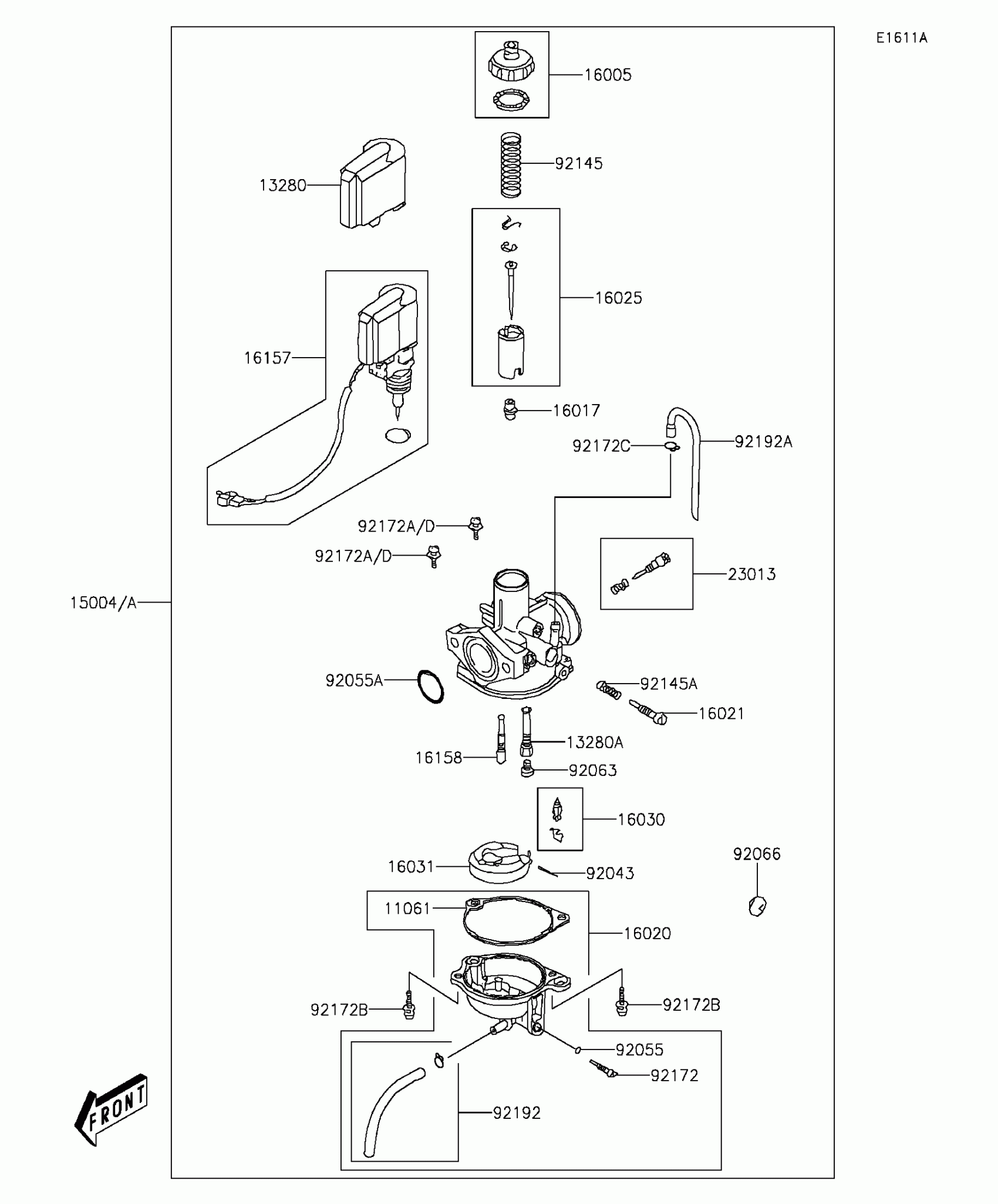

Kawasaki KFX®90 Carburetor(ADF-AGF) Diagram

#

Description
Price

11061

GASKET,FLOAT CHAMBER

11061-Y021

$3.14

13280

HOLDER,CAP

13280-Y008

$1.63

13280A

HOLDER,NEEDLE JET

13280-Y012

$56.95

15004A

CARBURETOR-ASSY

15004-Y008

$280.98

16005

TOP-CHAMBER

16005-Y001

$27.29

16017

JET-NEEDLE

16017-Y001

$30.87

16020

CHAMBER-FLOAT

16020-Y001

$102.75

16021

SCREW-THROTTLE STOP

16021-Y001

$2.92

16025

VALVE-THROTTLE

16025-Y004

$73.66

16030

VALVE-FLOAT,ASSY

16030-Y002

$14.69

16031

FLOAT

16031-Y001

$47.76

16157

JET-STARTER

16157-Y001

$118.39

16158

JET-SLOW

16158-Y001

$11.77

23013

SCREW-ASSY,ADJUST

23013-Y001

$3.10

92043

PIN

92043-Y002

$1.51

92055

RING-O

92055-Y001

$1.47

92055A

RING-O

92055-Y016

$1.51

92063

JET-MAIN

92063-Y001

$18.68

92066

PLUG

92066-Y008

$1.32

92145

SPRING

92145-Y002

$1.90

92145A

SPRING

92145-Y004

$0.80

92172

SCREW,DRAIN

92172-Y001

$4.10

92172B

SCREW

92172-Y013

$0.75

92172C

CLAMP

92172-Y023

$1.15

92172D

SCREW,4X8

92172-Y065

$1.93

92192

TUBE,ASSY

92192-Y006

$2.51

92192A

TUBE

92192-Y011

$4.58
