Description

Price

13271

PLATE

13271-Y001

Unavailable

13280

HOLDER,CAP

13280-Y008

$1.90

13280B

HOLDER,NEEDLE JET

13280-Y012

$55.86

15004A

CARBURETOR-ASSY

15004-Y003

Unavailable

16005

TOP-CHAMBER

16005-Y001

$29.48

16017

JET-NEEDLE

16017-Y001

$33.66

16017A

JET-NEEDLE

16017-Y002

$35.91

16020

CHAMBER-FLOAT

16020-Y001

$101.58

16021

SCREW-THROTTLE STOP

16021-Y001

$3.54

16025

VALVE-THROTTLE

16025-Y001

$99.72

16030

VALVE-FLOAT,ASSY

16030-Y002

$18.69

16157

JET-STARTER

16157-Y001

$115.97

16158

JET-SLOW

16158-Y001

$14.87

23013

SCREW-ASSY,ADJUST

23013-Y001

$3.55

92033

RING-SNAP

92033-Y003

$1.87

92043

PIN

92043-Y002

$1.76

92055

RING-O

92055-Y001

$1.71

92055A

RING-O

92055-Y016

$1.76

92063

JET-MAIN

92063-Y001

$21.43

92066

PLUG

92066-Y008

$1.48

92145

SPRING

92145-Y002

$2.30

92145A

SPRING

92145-Y004

$0.79

92172

SCREW,DRAIN

92172-Y001

$4.66

92172A

SCREW

92172-Y012

$0.82

92172B

SCREW

92172-Y013

$0.71

92172C

CLAMP

92172-Y023

$1.29

92192

TUBE,ASSY

92192-Y006

$3.12

92192A

TUBE

92192-Y011

$5.18

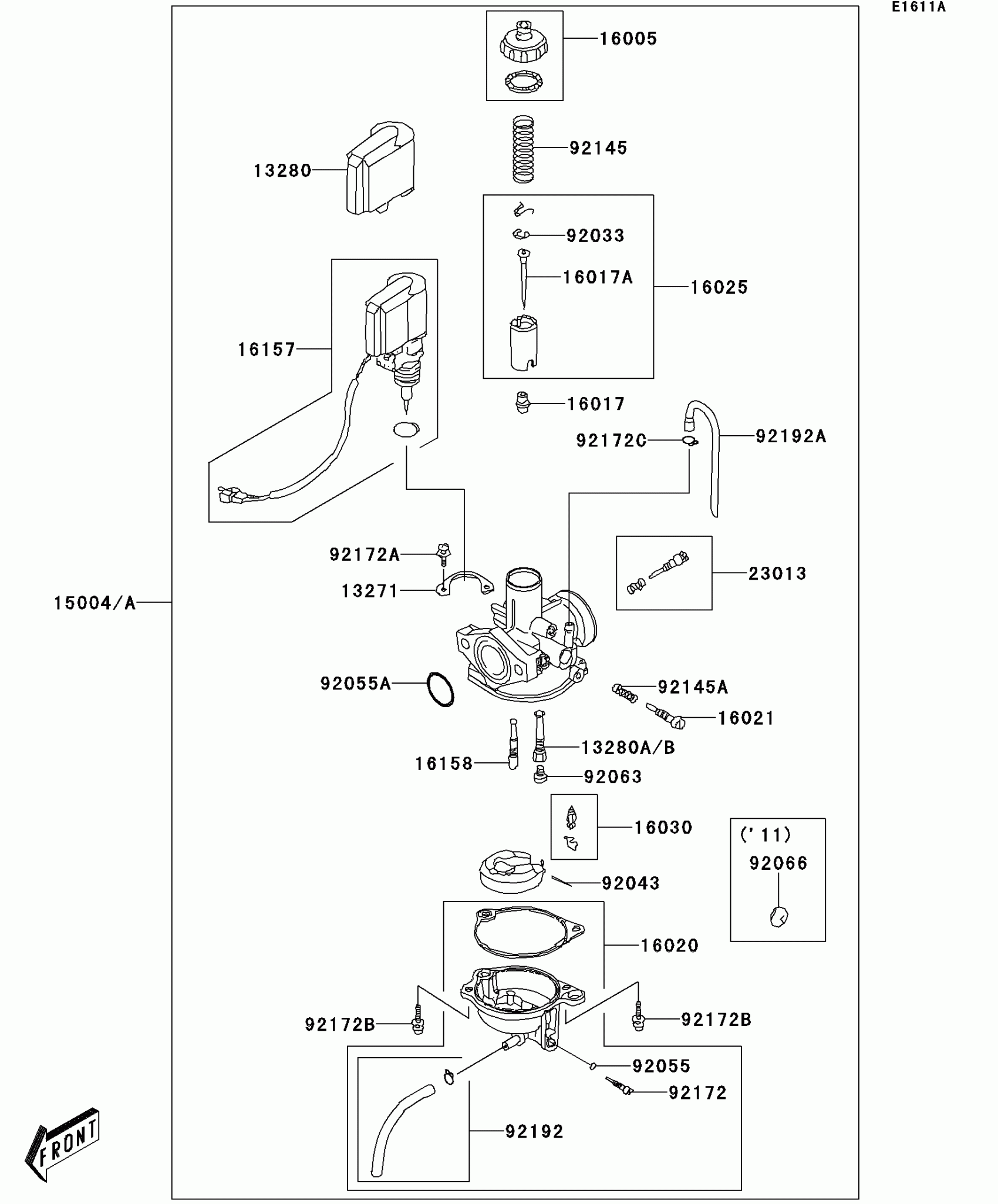

Kawasaki KFX®90 Carburetor(A8F-ABF) Diagram

PLATE

HOLDER,CAP

HOLDER,NEEDLE JET

CARBURETOR-ASSY

TOP-CHAMBER

JET-NEEDLE

JET-NEEDLE

CHAMBER-FLOAT

SCREW-THROTTLE STOP

VALVE-THROTTLE

VALVE-FLOAT,ASSY

JET-STARTER

JET-SLOW

SCREW-ASSY,ADJUST

RING-SNAP

PIN

RING-O

RING-O

JET-MAIN

PLUG

SPRING

SPRING

SCREW,DRAIN

SCREW

SCREW

CLAMP

TUBE,ASSY

TUBE
