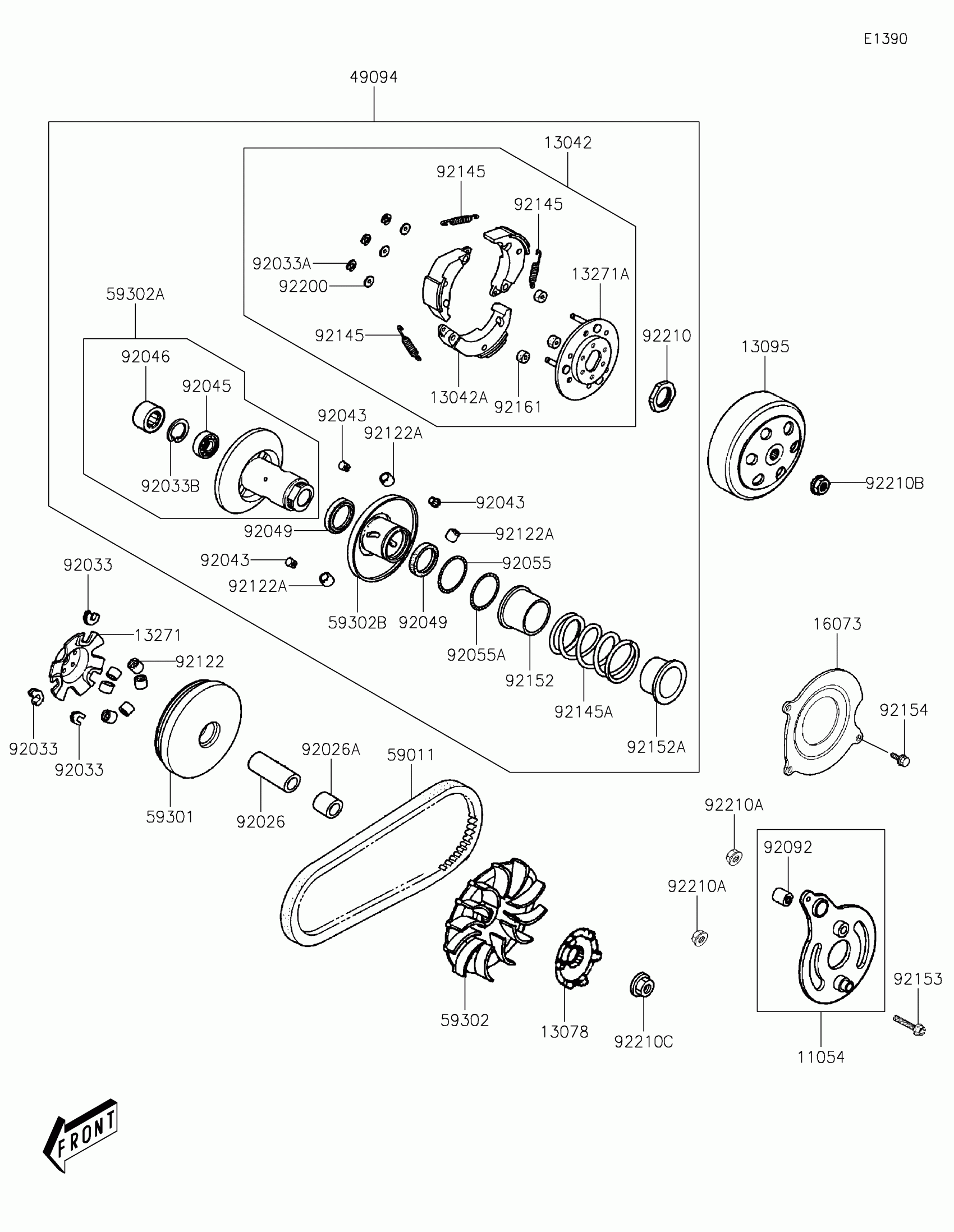

Find the part on the Belt Converter diagram for your 2011 Kawasaki KFX®90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

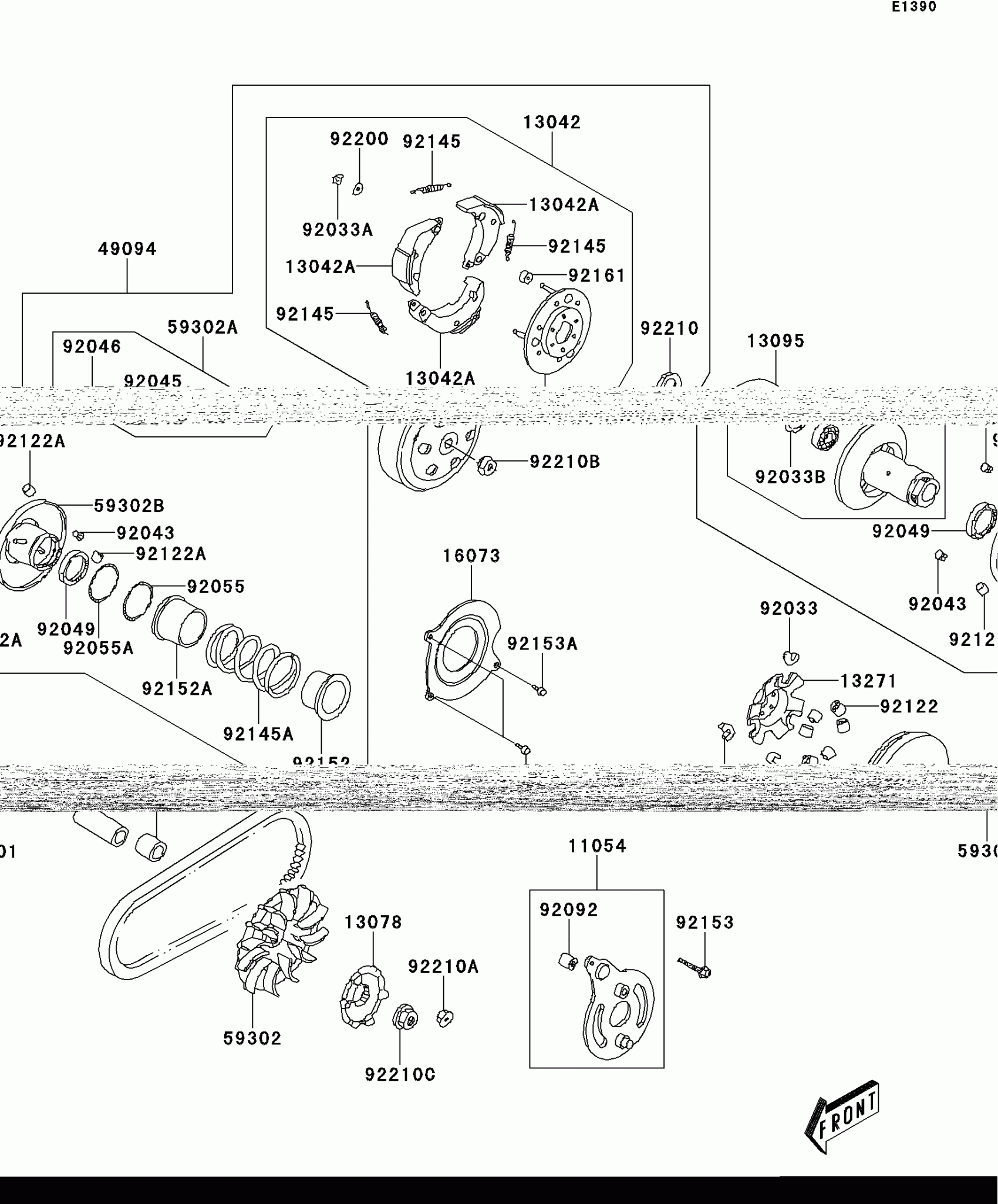

2011 Kawasaki KFX®90 Belt Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,ENG HANGER

11054-Y006

1

$36.85

In stock

13042

WEIGHT,ASSY

13042-Y002

1
Out of stock

13042A

WEIGHT,CLUTCH

13042-Y004

1
Out of stock

13078

RATCHET,KICK STARTER

13078-Y002

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-Y002

1

$49.44

In stock

13271

PLATE,MOVABLE DRIVE

13271-Y003

1

$15.90

In stock

13271A

PLATE,DRIVE COMP

13271-Y006

1

$15.25

In stock

16073

INSULATOR,DUST

16073-Y001

1
Out of stock

49094

CONVERTER-ASSY-DRIVEN

49094-Y001

1
Out of stock

59011

BELT,DRIVE

59011-Y002

1
Out of stock

59301

SHEAVE-MOVABLE

59301-Y002

1
Out of stock

59302

SHEAVE-COMP,FIEXED DRIVE

59302-Y001

1
Out of stock

59302A

SHEAVE-COMP,FIXED

59302-Y004

1
Out of stock

59302B

SHEAVE-COMP,MOVABLE

59302-Y006

1
Out of stock

92026

SPACER

92026-Y002

1
Out of stock

92026A

SPACER

92026-Y004

1
Out of stock

92033

RING-SNAP

92033-Y006

1
Out of stock

92033A

RING-SNAP,6MM

92033-Y009

1
Out of stock

92033B

RING-SNAP

92033-Y013

1
Out of stock

92043

PIN,GUIDE

92043-Y004

1
Out of stock

92045

BEARING-BALL,6901U

92045-Y001

1
Out of stock

92046

BEARING-NEEDLE,17X25X18

92046-Y001

1
Out of stock

92049

SEAL-OIL,34X39X3

92049-Y007

1
Out of stock

92055

RING-O

92055-Y013

1
Out of stock

92055A

RING-O,38.5X2

92055-Y014

1
Out of stock

92092

BUSHING-RUBBER

92092-Y002

1
Out of stock

92122

ROLLER

92122-Y001

1
Out of stock

92122A

ROLLER

92122-Y003

1
Out of stock

92145

SPRING,CLUTCH

92145-Y007

1
Out of stock

92145A

SPRING

92145-Y009

1
Out of stock

92152

COLLAR,SEAL

92152-Y003

1
Out of stock

92152A

COLLAR,SPRING

92152-Y005

1
Out of stock

92153

BOLT,FLANGE,8X50

92153-Y037

1
Out of stock

92153A

BOLT,FLANGE,6X12

92153-Y046

1
Out of stock

92161

DAMPER

92161-Y002

1

$3.35

In stock

92200

WASHER,6MM

92200-Y005

1
Out of stock

92210

NUT,28MM

92210-Y002

1
Out of stock

92210A

NUT,8MM

92210-Y013

1
Out of stock

92210B

NUT,10MM

92210-Y029

1
Out of stock

92210C

NUT,12MM

92210-Y030

1
Out of stock
