Description

Price

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

550

PIN-COTTER,3.0X25

550AA3025

$0.62

13107

SHAFT,KNUCKLE

13107-1507

$69.43

39007

ARM-SUSP,LH,UPP,G.GRAY

39007-1307-HN

$89.12

39007A

ARM-SUSP,RH,UPP,G.GRAY

39007-1309-HN

$89.12

39007B

ARM-SUSP,LH,LWR,G.GRAY

39007-1311-HN

$102.44

39007C

ARM-SUSP,RH,LWR,G.GRAY

39007-1312-HN

$102.44

39186

KNUCKLE,LH

39186-0003

$215.27

39186A

KNUCKLE,RH

39186-0004

$215.27

42036

SLEEVE

42036-1376

$14.71

59266

JOINT-BALL

59266-0013

$65.53

59266A

JOINT-BALL

59266-0014

$72.37

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,12.3X22X1.6

92022-1065

$3.96

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92150

BOLT,FLANGED,10X63

92150-1384

$13.75

92152

COLLAR,10X17X14.5

92152-1455

$9.07

92171

CLAMP,BRAKE HOSE,LH

92171-0094

$9.33

92171A

CLAMP,BRAKE HOSE,RH

92171-0095

$9.33

92210

NUT,CASTLE,12MM

92210-0395

$3.86

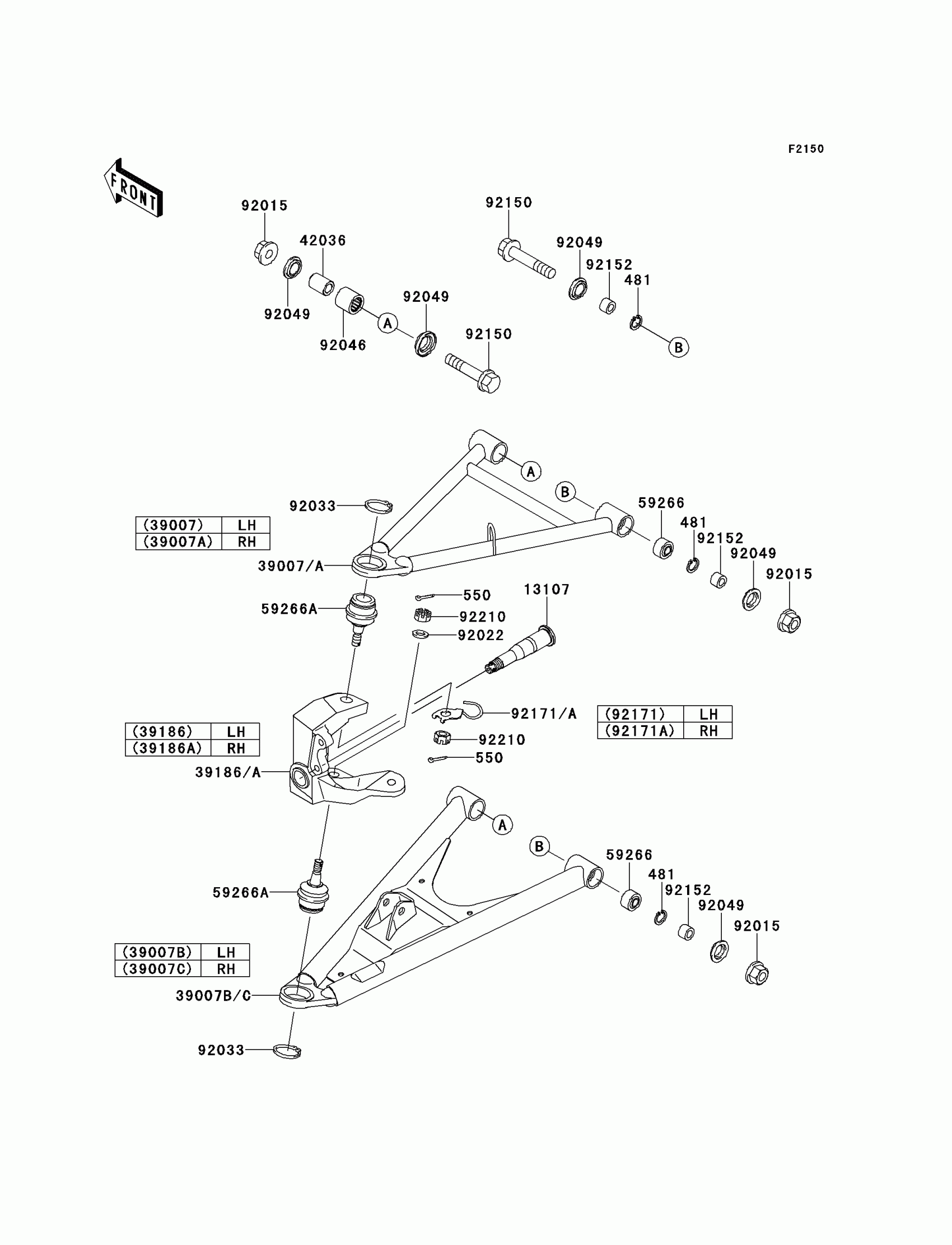

Kawasaki KFX®700 Suspension Diagram

CIRCLIP-TYPE-C,24MM

PIN-COTTER,3.0X25

SHAFT,KNUCKLE

ARM-SUSP,LH,UPP,G.GRAY

ARM-SUSP,RH,UPP,G.GRAY

ARM-SUSP,LH,LWR,G.GRAY

ARM-SUSP,RH,LWR,G.GRAY

KNUCKLE,LH

KNUCKLE,RH

SLEEVE

JOINT-BALL

JOINT-BALL

NUT,FLANGED,10MM

WASHER,12.3X22X1.6

RING-SNAP,C-TYPE,32MM

BEARING-NEEDLE

SEAL-OIL,MHA17245.7F

BOLT,FLANGED,10X63

COLLAR,10X17X14.5

CLAMP,BRAKE HOSE,LH

CLAMP,BRAKE HOSE,RH

NUT,CASTLE,12MM
