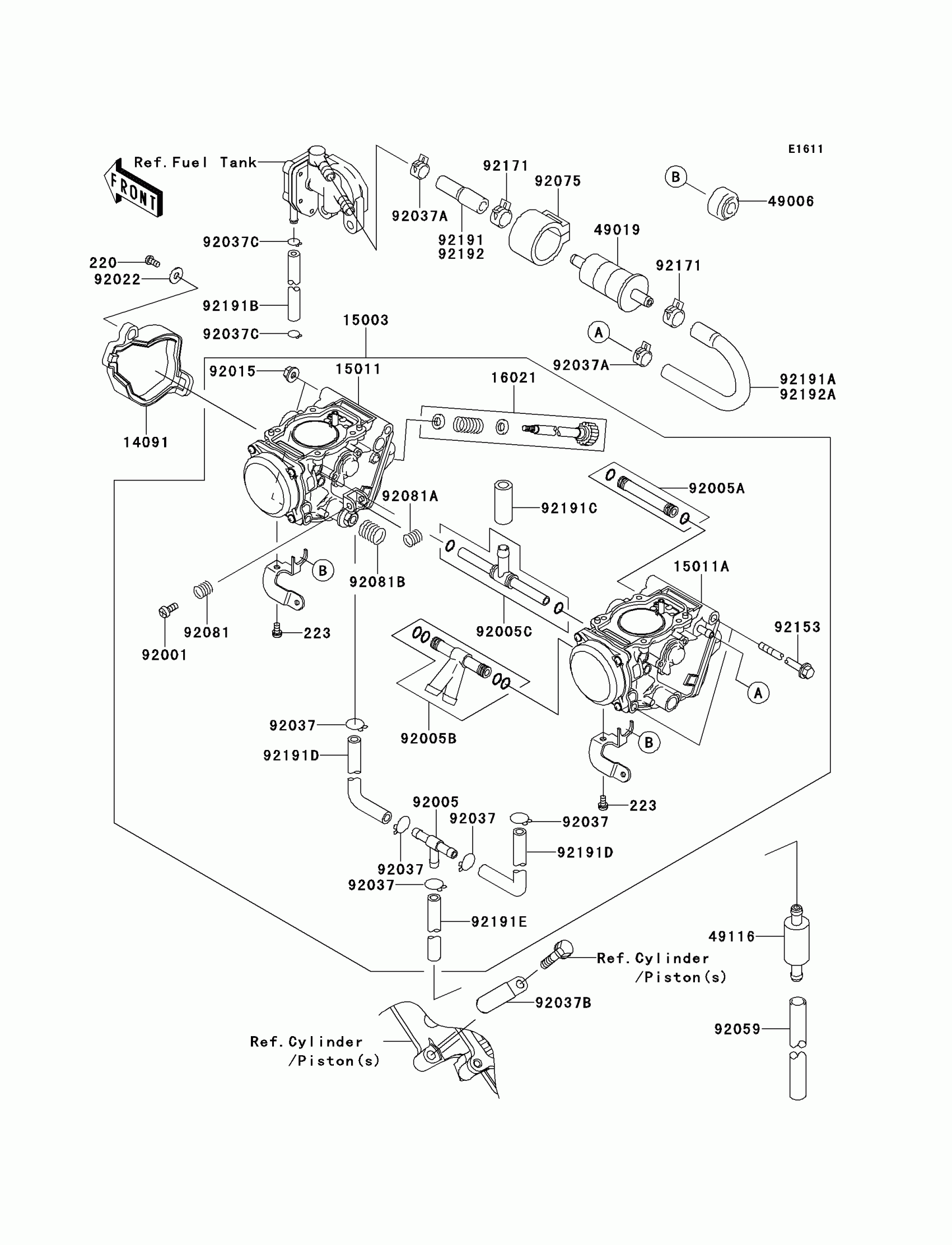

Kawasaki KFX®700 Carburetor Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

223

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.28

14091

COVER,THROTTLE CABLE

14091-1196

$9.78

15003

CARBURETOR-ASSY

15003-0094

$1,393.50

15011

CARBURETOR,FR

15011-0015

Unavailable

15011A

CARBURETOR,RR

15011-0016

$768.09

16021

SCREW-THROTTLE STOP

16021-1223

$69.16

49006

BOOT,STARTER CABLE

49006-1353

$3.97

49019

FILTER-FUEL

49019-1055

$22.97

49116

VALVE-ASSY

49116-1126

$20.77

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,FUEL,T-TYPE

92005-1112

$14.10

92005A

FITTING

92005-1375

$24.28

92005B

FITTING

92005-1376

$22.70

92005C

FITTING

92005-1385

$35.49

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,TUBE

92037-1201

$4.60

92037A

CLAMP,TUBE

92037-1505

$4.76

92037B

CLAMP,L=45

92037-1539

$5.00

92037C

CLAMP

92037-1610

$2.00

92059

TUBE,7X10X100

92059-1736

$4.46

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92153

BOLT,5X143

92153-1068

$8.01

92171

CLAMP

92171-0515

$6.38

92191B

TUBE,4X9X130

92191-1251

$4.14

92191C

TUBE,7X11X25

92191-1672

$4.34

92191D

TUBE,4.5X8X65

92191-1673

$5.18

92191E

TUBE,4.5X8X420

92191-1674

$11.59

92192

TUBE,TAP-FILTER

92192-0499

$17.96

92192A

TUBE,FILTER-CARB.

92192-0500

$33.35
