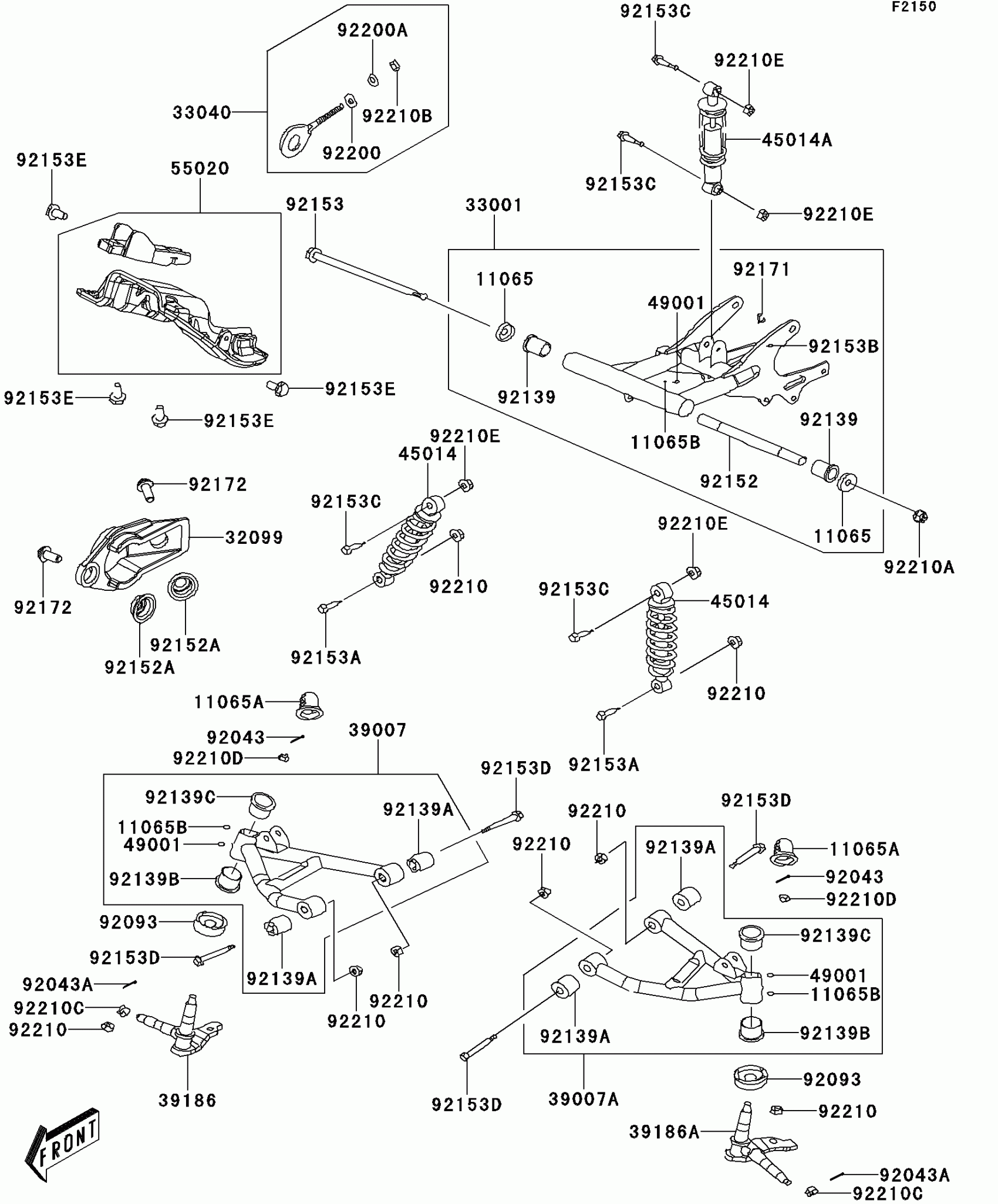

Kawasaki KFX®50 Suspension Diagram
#
11065
CAP
11065-Y003
$5.18
11065A
CAP
11065-Y004
$3.54
11065B
CAP,GREASE NIPPLE
11065-Y005
$0.76
32099
CASE,KICK STARTER
32099-Y001
$14.96
33001
ARM-COMP-SWING
33001-Y001
$131.81
33040
ADJUSTER-CHAIN
33040-Y001
$5.69
39007
ARM-SUSP,RH
39007-Y001
$92.47
39007A
ARM-SUSP,LH
39007-Y002
$92.47
39186
KNUCKLE,RH
39186-Y001
$69.34
39186A
KNUCKLE,LH
39186-Y002
$69.34
45014
SHOCKABSORBER,FR,WHITE
45014-Y001-937
Unavailable
45014A
SHOCKABSORBER,RR,WHITE
45014-Y002-937
$164.20
49001
NIPPLE-GREASE
49001-Y001
$6.26
55020
GUARD
55020-Y001
Unavailable
92043
PIN,2X20
92043-Y008
$0.79
92043A
PIN,3X25
92043-Y009
$0.76
92093
SEAL
92093-Y007
$3.70
92139
BUSHING,RR
92139-Y003
$9.49
92139A
BUSHING,SUSPENSION ARM
92139-Y004
$6.23
92139B
BUSHING,SUSPENSION ARM
92139-Y005
$6.23
92139C
BUSHING,SUSPENSION ARM
92139-Y006
$6.23
92152
COLLAR
92152-Y010
$18.84
92152A
COLLAR
92152-Y011
$1.63
92153
BOLT
92153-Y011
$19.03
92153A
BOLT,10X40
92153-Y016
$4.27
92153B
BOLT,FLANGE,6X10
92153-Y022
$0.79
92153C
BOLT,FLANGE,10X40
92153-Y041
$2.77
92153D
BOLT,FLANGE,10X50
92153-Y042
$3.17
92153E
BOLT,6X16
92153-Y064
$1.02
92171
CLAMP,BRAKE HOSE
92171-Y005
$3.12
92172
SCREW,6X12
92172-Y016
Unavailable
92200
WASHER,8MM
92200-Y016
$0.76
92200A
WASHER,8MM
92200-Y019
$0.79
92210
NUT,10MM
92210-Y009
$3.12
92210A
NUT,14MM
92210-Y012
$7.28
92210B
NUT,8MM
92210-Y018
$0.76
92210C
NUT,12MM
92210-Y023
$3.94
92210D
NUT,10MM
92210-Y024
$2.98
92210E
NUT,10MM
92210-Y029
$1.58
