2009 Kawasaki KFX®50 Rear Fender Diagram

← All diagrams

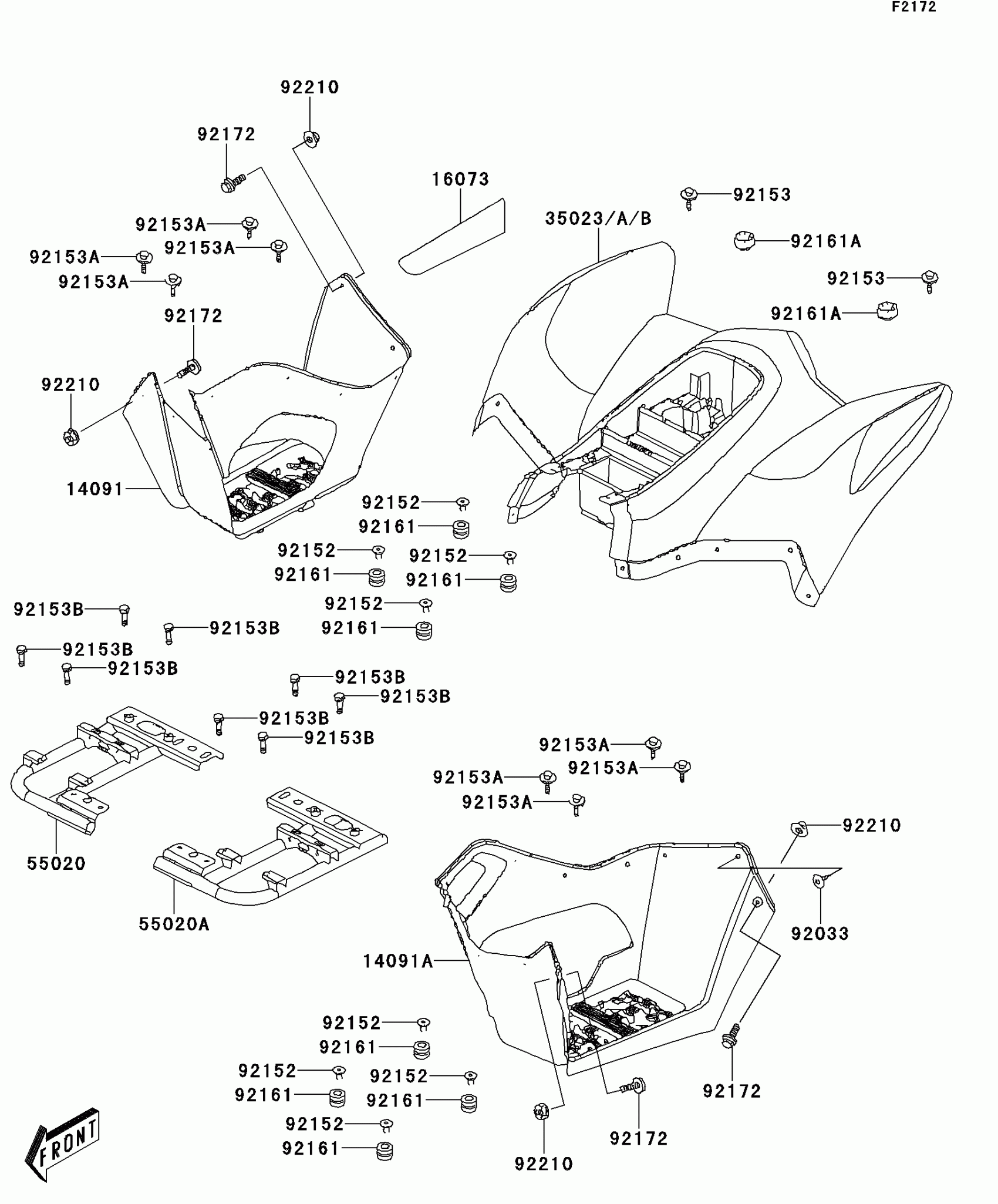

Find the part on the Rear Fender diagram for your 2009 Kawasaki KFX®50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KFX®50 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,SIDE,RH,BLACK

14091-Y009-933

1
Out of stock

14091A

COVER,SIDE,LH,BLACK

14091-Y010-933

1
Out of stock

16073

INSULATOR

16073-Y003

1
Out of stock

35023

FENDER-REAR,GREEN

35023-Y001-930

1
Out of stock

35023B

FENDER-REAR,S.RED

35023-Y001-939

1
Out of stock

55020

GUARD,SIDE,RH

55020-Y002

1
Out of stock

55020A

GUARD,SIDE,LH

55020-Y003

1
Out of stock

92033

RIVET

92033-Y010

1
Out of stock

92152

COLLAR

92152-Y014

1
Out of stock

92153

BOLT,6X16

92153-Y018

1
Out of stock

92153A

BOLT,6X20

92153-Y019

1
Out of stock

92153B

BOLT,FLANGE,8X16

92153-Y032

1
Out of stock

92161

DAMPER

92161-Y003

1
Out of stock

92161A

DAMPER

92161-Y005

1
Out of stock

92172

SCREW,6X16

92172-Y004

1
Out of stock

92210

NUT

92210-Y031

1
Out of stock
