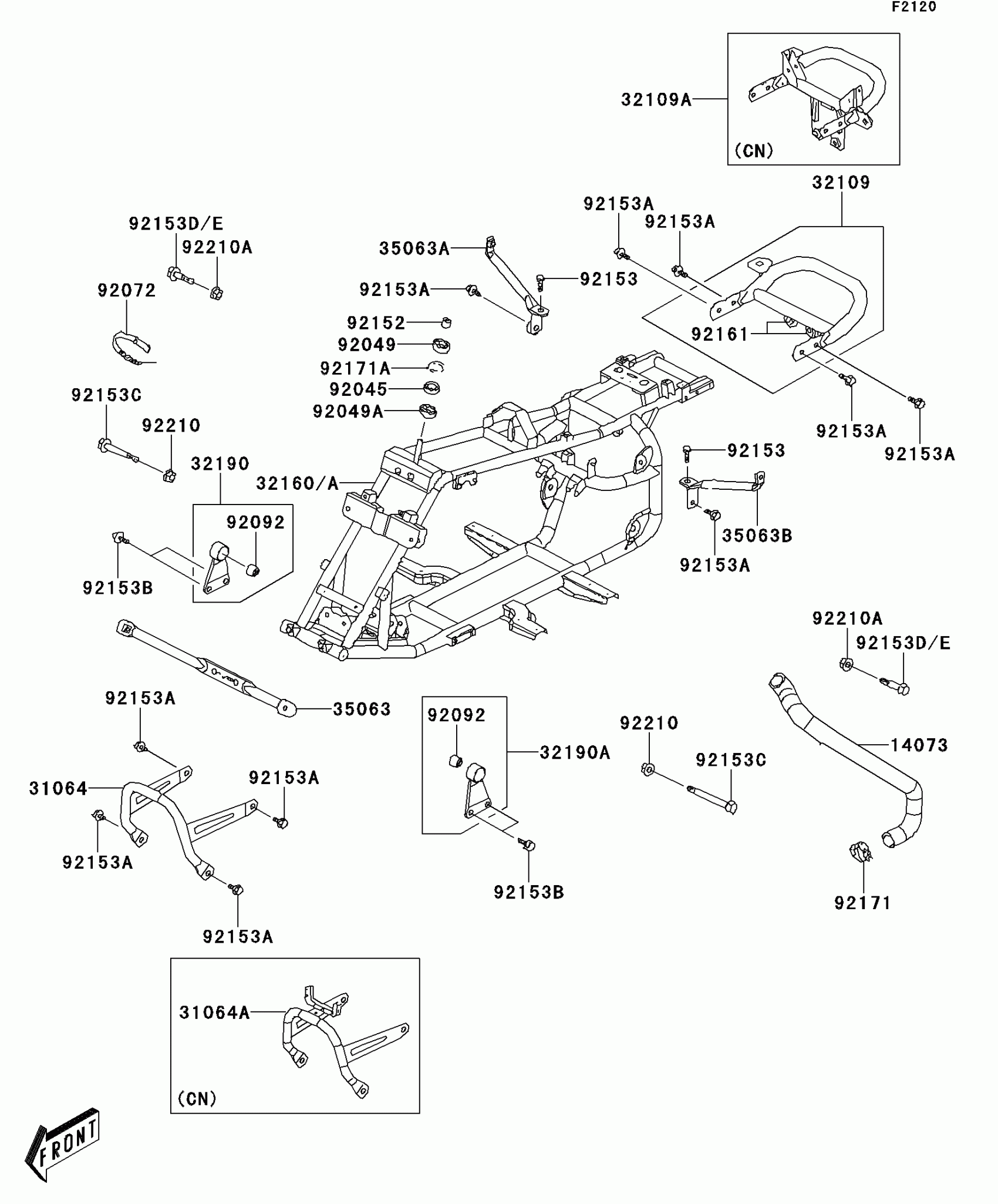

Kawasaki KFX®50 Frame Diagram

#

Description
Price

14073

DUCT

14073-Y002

$17.68

31064

PIPE-COMP,FRONT BUMPER,SILVER

31064-Y001-938

$54.37

31064A

PIPE-COMP,FRONT BUMPER,SILVER

31064-Y002-938

Unavailable

32109

GRIP-FRAME,RR

32109-Y001

$108.40

32109A

GRIP-FRAME,RR

32109-Y003

$115.69

32160A

FRAME-COMP

32160-Y002

$451.14

32190

BRACKET-ENGINE,RH

32190-Y001

$13.63

32190A

BRACKET-ENGINE,LH

32190-Y002

$13.63

35063

STAY,FR

35063-Y002

$12.02

35063A

STAY,REAR FENDER,RH

35063-Y004

$9.19

35063B

STAY,REAR FENDER,LH

35063-Y005

$9.19

92045

BEARING-BALL,6002

92045-Y009

$12.03

92049

SEAL-OIL,18X32X7

92049-Y003

$1.85

92049A

SEAL-OIL,22X35X7

92049-Y005

$1.79

92072

BAND

92072-Y003

$1.61

92092

BUSHING-RUBBER

92092-Y001

$3.94

92152

COLLAR

92152-Y009

$5.05

92153

BOLT,FLANGE,6X12

92153-Y023

$0.78

92153A

BOLT,FLANGE,8X12

92153-Y031

$1.41

92153B

BOLT,FLANGE,8X16

92153-Y032

$1.14

92153C

BOLT,FLANGE,10X70

92153-Y043

$2.25

92153E

BOLT,FLANGE,8X40

92153-Y069

$2.07

92161

DAMPER

92161-Y006

$1.24

92171

CLAMP

92171-Y004

$3.10

92171A

CLAMP

92171-Y009

$1.90

92210

NUT,10MM

92210-Y009

$2.17

92210A

NUT,FLANGE,8MM

92210-Y032

$1.42
