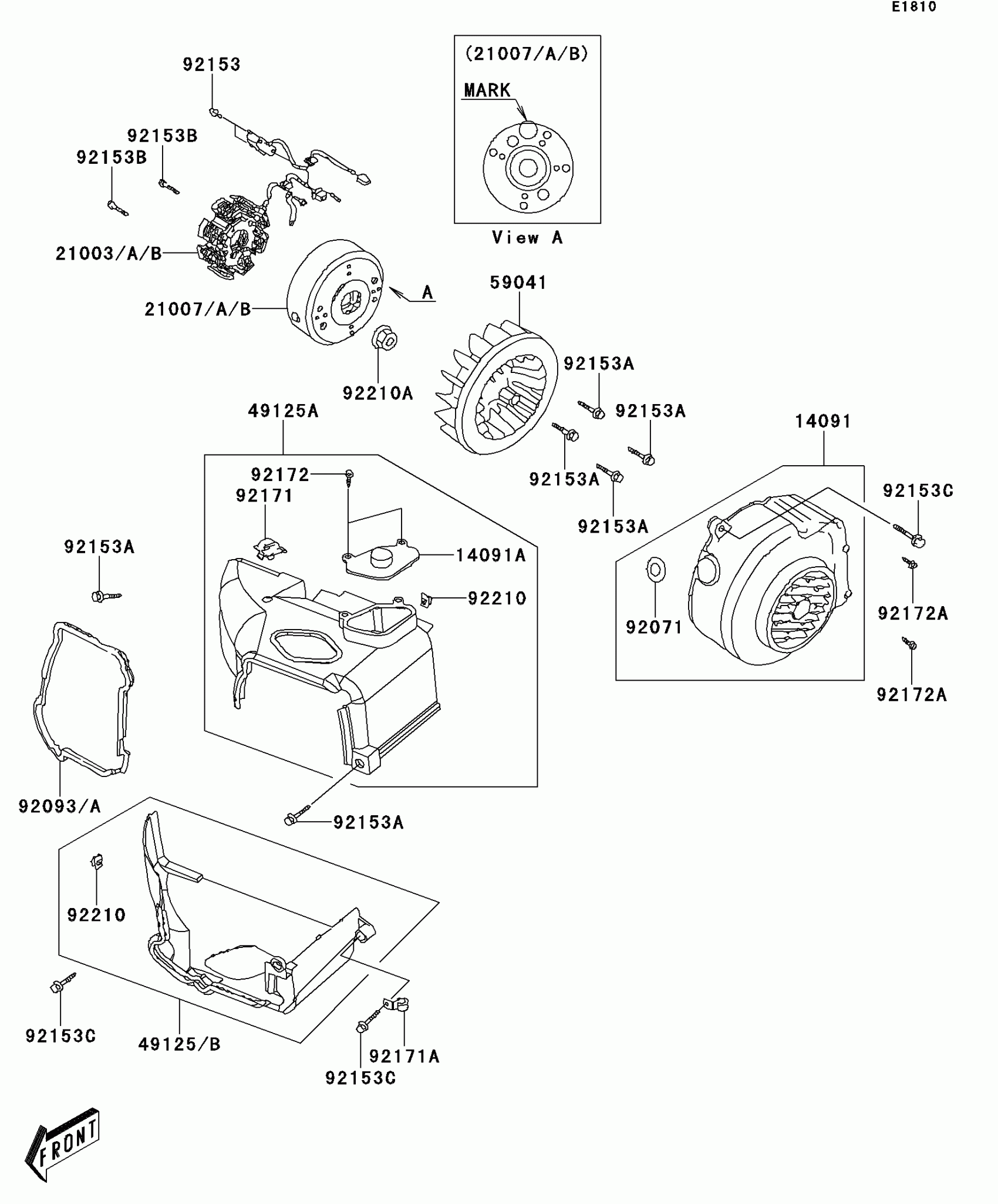

Kawasaki KFX®50 Generator Diagram

#

Description
Price

14091

COVER,FAN

14091-Y004

$19.33

14091A

COVER,SHROUD,UPP

14091-Y005

$1.90

21003

STATOR,D402

21003-Y001

$129.19

21003A

STATOR,D406

21003-Y003

$129.19

21003B

STATOR,D414

21003-Y004

$129.19

21007

ROTOR,D402

21007-Y002

$97.36

21007A

ROTOR,D406

21007-Y003

$97.36

21007B

ROTOR,D414

21007-Y004

$97.36

49125A

SHROUD,UPP

49125-Y003

$19.87

49125B

SHROUD,LWR

49125-Y005

$19.81

59041

FAN

59041-Y002

$14.02

92071

GROMMET

92071-Y002

Unavailable

92093A

SEAL,SHROUD

92093-Y010

$10.58

92153

BOLT,5X12

92153-Y015

$0.82

92153A

BOLT,FLANGE,6X16

92153-Y047

$2.60

92153B

BOLT,FLANGE,6X22

92153-Y050

$0.82

92153C

BOLT,FLANGE,6X25

92153-Y051

$1.14

92171

CLAMP

92171-Y001

$1.63

92171A

CLAMP

92171-Y002

$1.92

92172

SCREW,4X12

92172-Y017

$0.79

92172A

SCREW,5X16

92172-Y021

$0.79

92210

NUT,6MM

92210-Y011

$1.40

92210A

NUT,10MM

92210-Y029

$1.58
