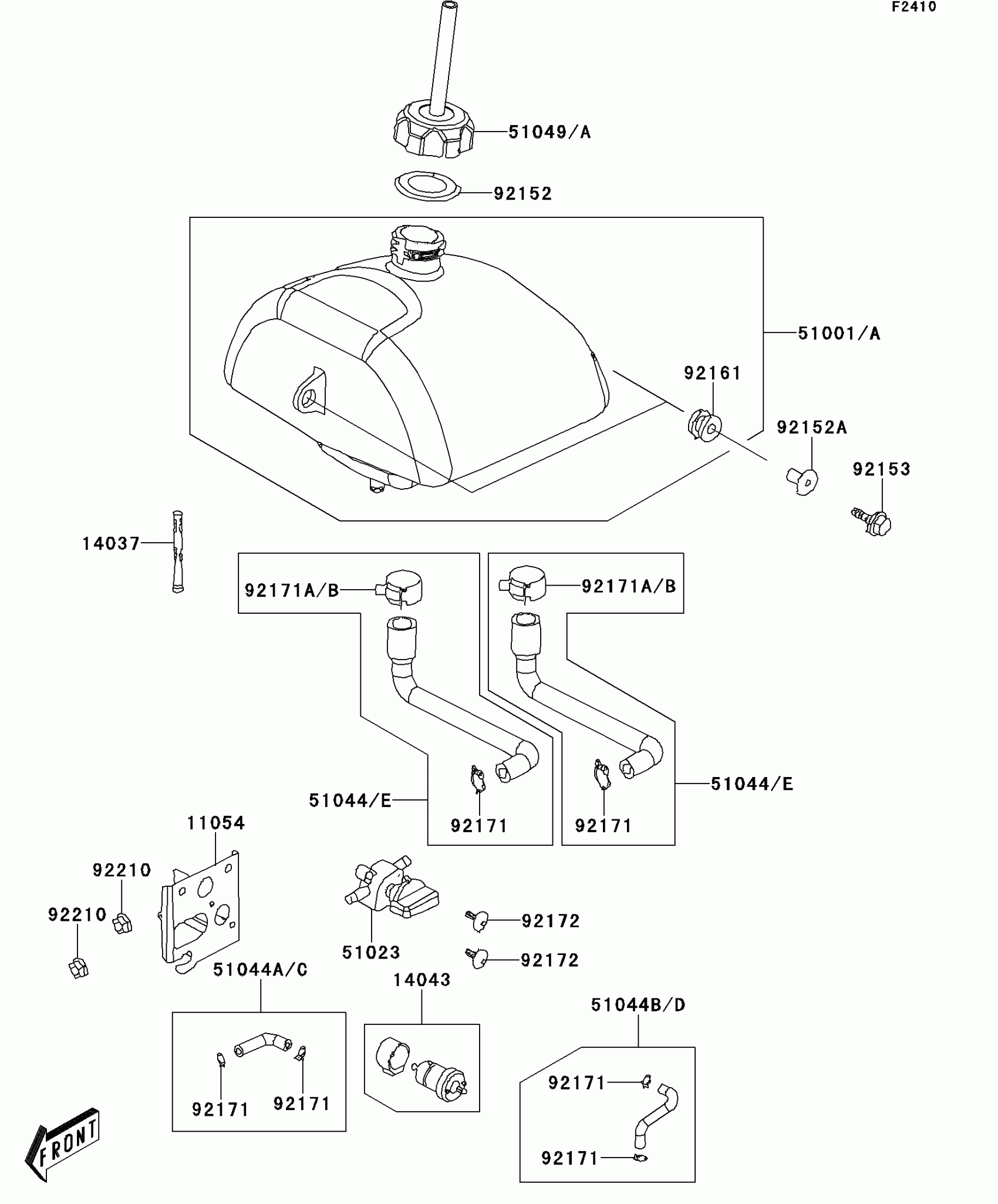

Kawasaki KFX®50 Fuel Tank Diagram

Description

Price

11054

BRACKET

11054-Y003

$7.36

14037

SCREEN

14037-Y001

$4.16

14043

FILTER,FUEL

14043-Y002

$11.89

51001A

TANK-COMP-FUEL

51001-Y002

$303.46

51023

TAP-ASSY

51023-Y001

Unavailable

51044C

TUBE-ASSY,FUEL

51044-Y005

Unavailable

51044D

TUBE-ASSY,FUEL

51044-Y006

Unavailable

51044E

TUBE-ASSY,FUEL TANK

51044-Y007

$3.57

51049A

CAP-TANK

51049-Y002

$24.86

92152

COLLAR

92152-Y001

$1.90

92152A

COLLAR

92152-Y013

$1.09

92153

BOLT,FLANGE,6X20

92153-Y049

$0.85

92161

DAMPER

92161-Y001

$3.44

92171

CLAMP

92171-Y011

$0.79

92171B

CLAMP

92171-Y021

$1.46

92172

SCREW,5X16

92172-Y010

$0.82

92210

NUT,6MM

92210-Y027

$0.79
