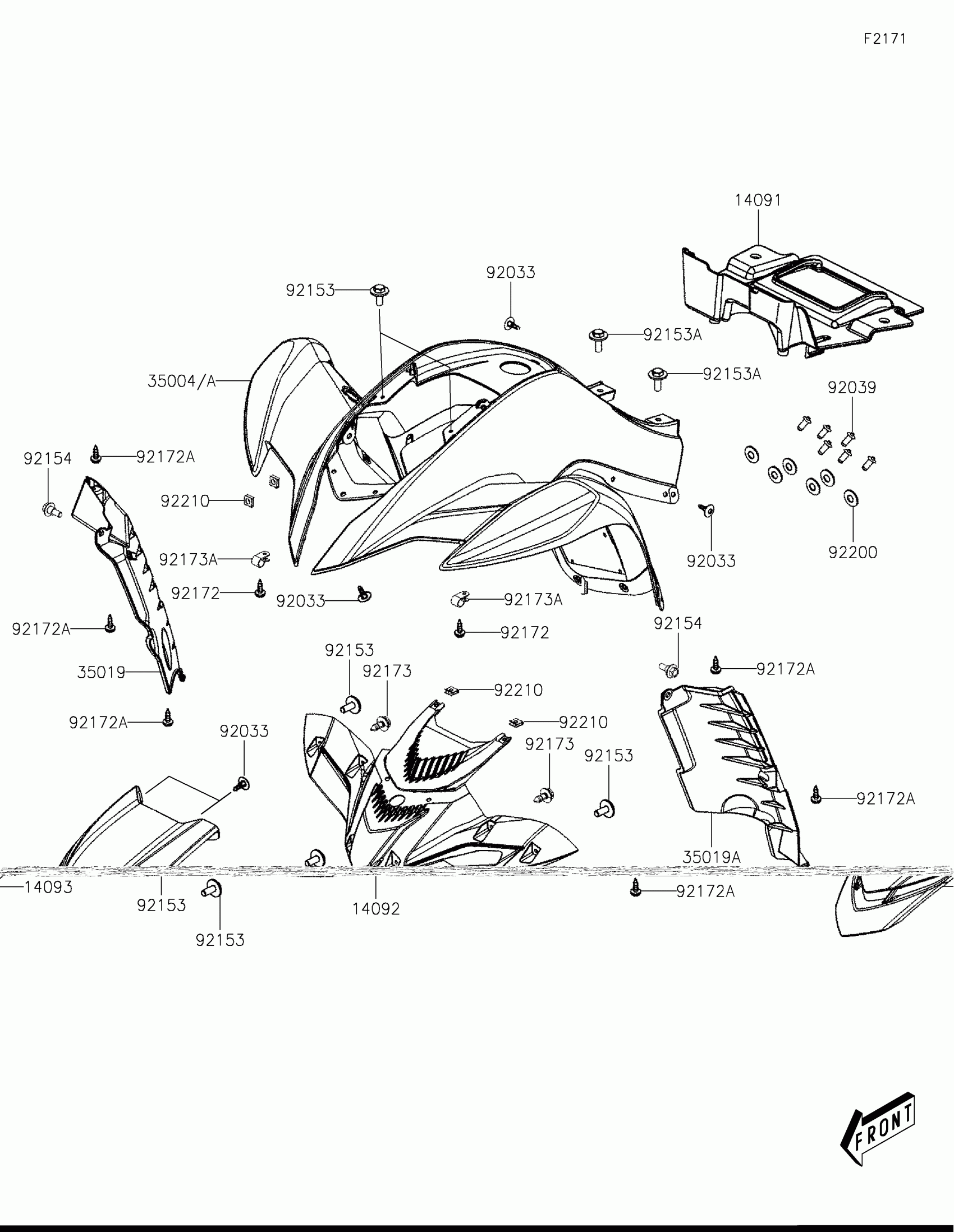

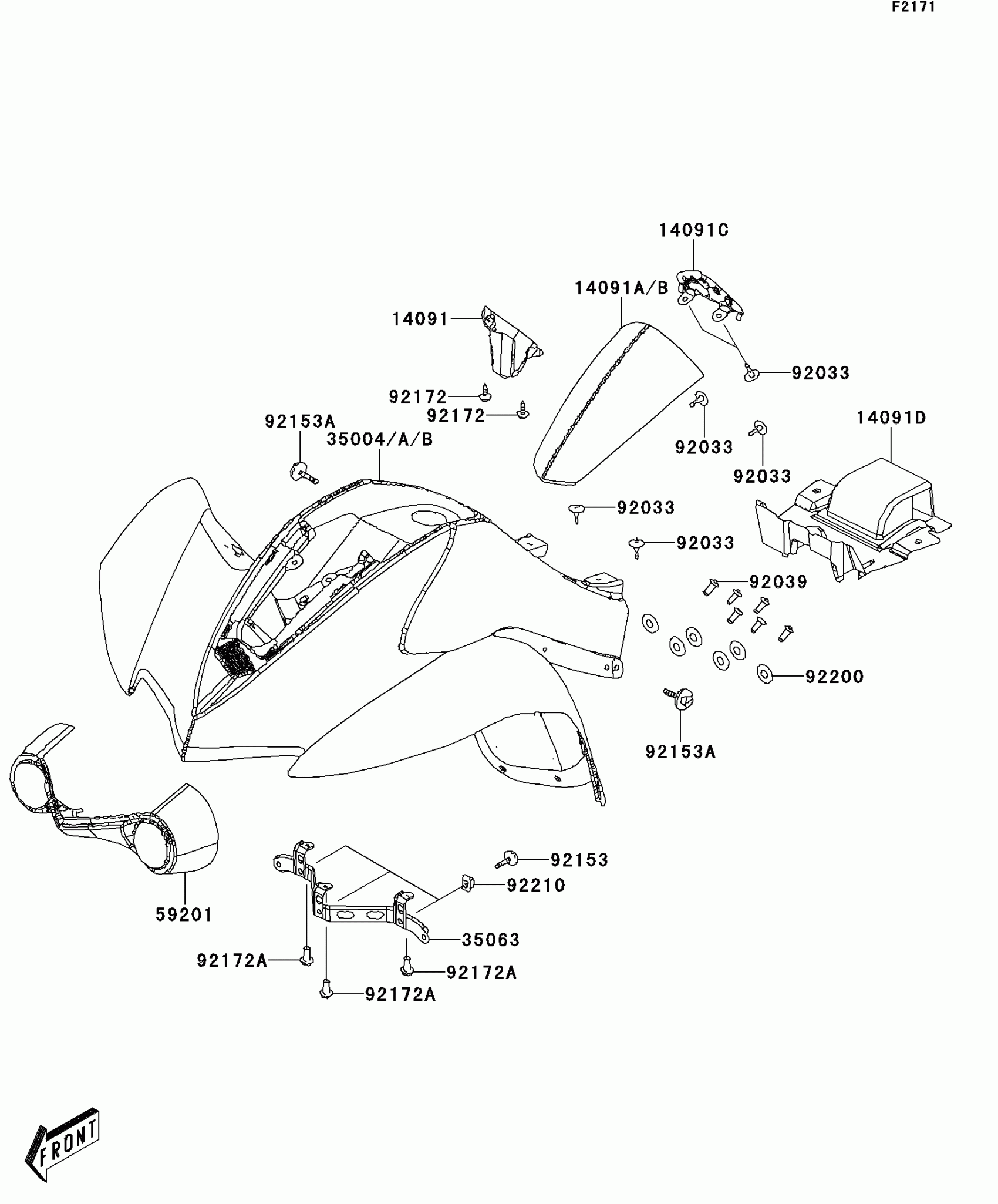

Kawasaki KFX®50 Front Fender(s) Diagram

Description

Price

14091

COVER,MAIN SWITCH,BLACK

14091-Y006-933

$3.69

14091A

COVER,FRONT,B.WHITE

14091-Y007-932

$27.74

14091C

COVER,CENTER,BLACK

14091-Y008-933

$3.39

14091D

COVER,INNER,BLACK

14091-Y013-933

$4.20

35004

FENDER-FRONT,GREEN

35004-Y001-930

$104.96

35004B

FENDER-FRONT,S.RED

35004-Y001-939

$129.35

35063

STAY,FRONT FENDER

35063-Y003

$15.66

59201

BUMPER,FRONT,BLACK

59201-Y001-933

$11.19

92033

RIVET

92033-Y010

$1.63

92039

RIVET,3.2X9.8

92039-Y001

$0.76

92153

BOLT,5X16

92153-Y013

$0.76

92153A

BOLT,6X16

92153-Y018

$1.30

92172

SCREW,4X12

92172-Y019

$1.02

92172A

SCREW,TAPPING,5X16

92172-Y020

$1.63

92200

WASHER,3MM

92200-Y017

$0.76

92210

NUT,5MM

92210-Y016

$1.40
