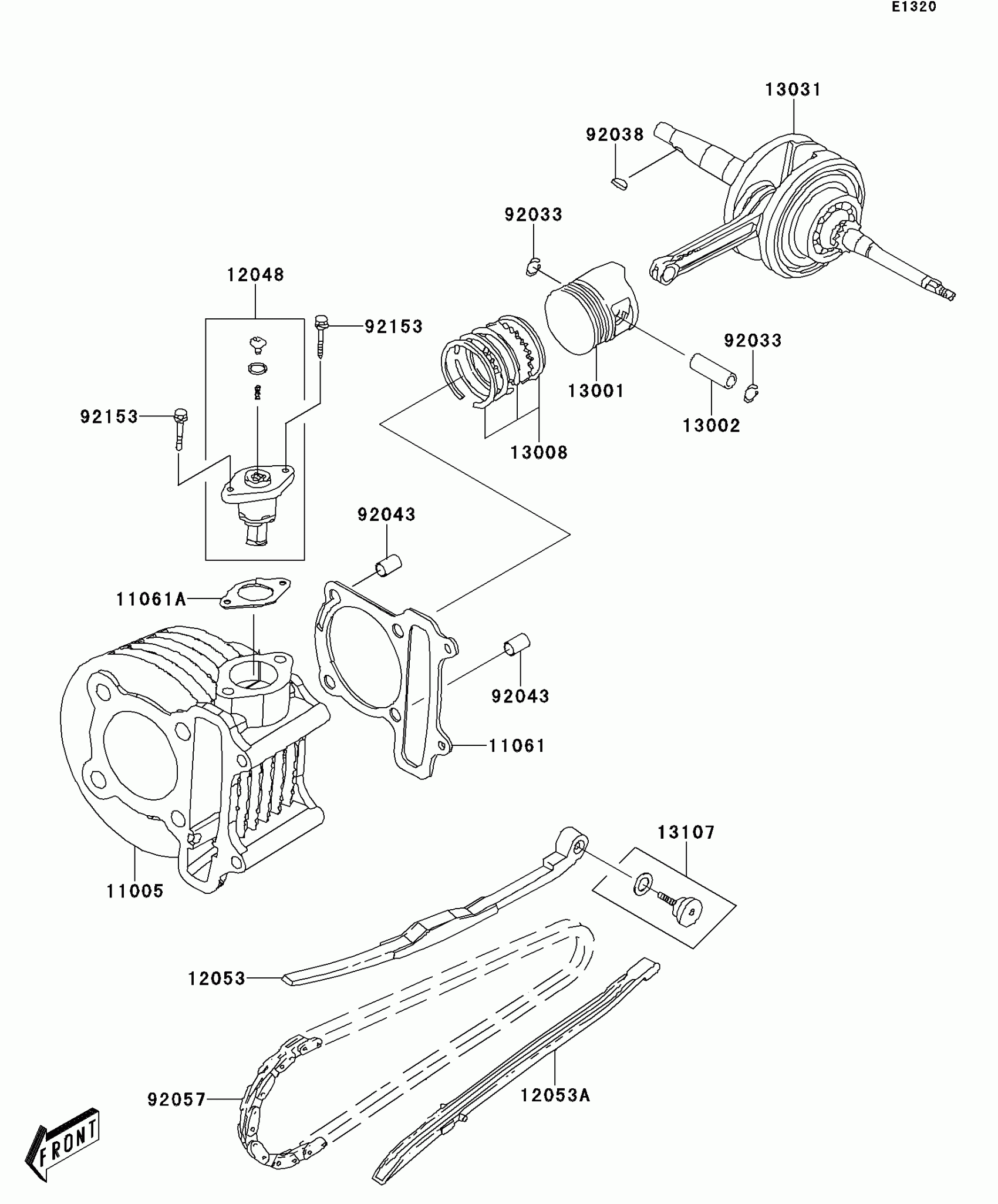

Kawasaki KFX®50 Crankshaft/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-Y001

$218.90

11061

GASKET,CYLINDER BASE

11061-Y008

$3.34

11061A

GASKET

11061-Y013

$2.12

12048

TENSIONER-ASSY

12048-Y002

$45.54

12053

GUIDE-CHAIN,TENSIONER

12053-Y001

$34.32

12053A

GUIDE-CHAIN

12053-Y003

$22.24

13001

PISTON-ENGINE

13001-Y002

$38.86

13002

PIN-PISTON

13002-Y002

$10.47

13008

RING-SET-PISTON

13008-Y002

$35.56

13031

CRANKSHAFT-COMP

13031-Y002

$327.27

13107

SHAFT,CHAIN GUIDE

13107-Y002

$4.44

92033

RING-SNAP

92033-Y001

$1.28

92038

KEY,WOODRUFF

92038-Y001

$1.81

92043

PIN,8X14

92043-Y006

$1.07

92057

CHAIN,CAMSHAFT

92057-Y001

$65.90

92153

BOLT,FLANGE,6X18

92153-Y048

$0.83
