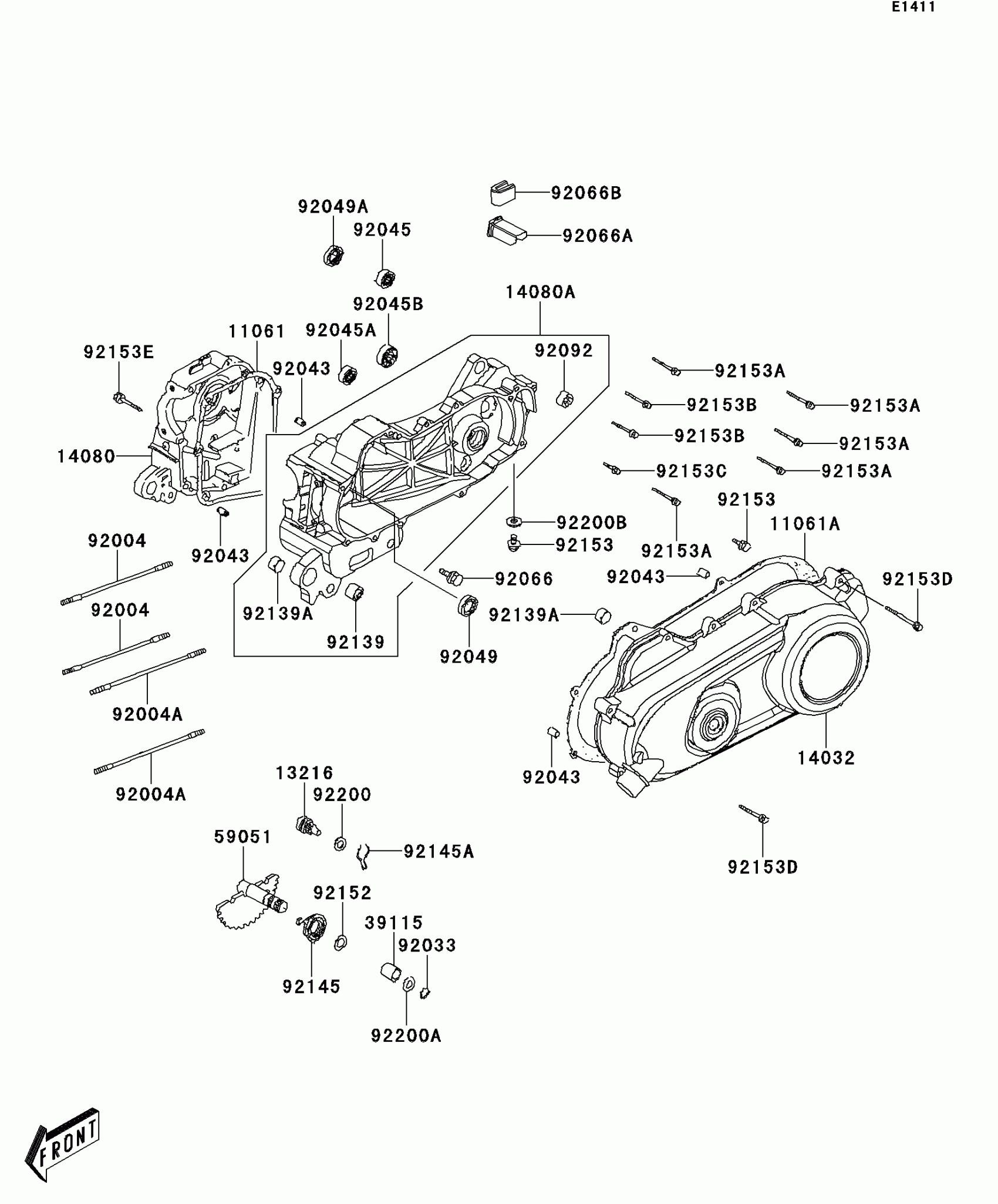

Kawasaki KFX®50 Crankcase Diagram

#

Description
Price

11061

GASKET,CRANK CASE

11061-Y002

$4.51

11061A

GASKET,CLUTCH COVER

11061-Y006

$14.90

13216

GEAR-COMP,KICK DRIVEN

13216-Y001

$28.32

14032

COVER-CLUTCH,BLACK

14032-Y001-931

$105.67

14080

CRANKCASE,RH

14080-Y002

$126.10

14080A

CRANKCASE,LH

14080-Y004

$320.31

39115

SHAFT-IDLER,KICK

39115-Y001

$2.42

59051

GEAR-SPUR,KICK STARTER

59051-Y001

$36.71

92004

STUD,7X168

92004-Y001

$3.81

92004A

STUD,7X176

92004-Y003

$4.22

92033

RING-SNAP

92033-Y012

$0.80

92043

PIN,8X14

92043-Y012

$1.36

92045

BEARING-BALL,6201

92045-Y002

$28.93

92045A

BEARING-BALL,6203

92045-Y003

$25.39

92045B

BEARING-BALL,6203

92045-Y006

$10.73

92049

SEAL-OIL,19.8X30X5

92049-Y001

$13.75

92049A

SEAL-OIL,17X30X6

92049-Y006

$5.99

92066

PLUG,DRAIN

92066-Y003

$2.71

92066A

PLUG

92066-Y004

$14.39

92066B

PLUG

92066-Y006

$2.51

92092

BUSHING-RUBBER

92092-Y002

$4.88

92139

BUSHING

92139-Y001

$5.12

92139A

BUSHING

92139-Y002

$1.42

92145

SPRING

92145-Y001

$10.59

92145A

SPRING,KICK DRIVEN GEAR

92145-Y011

$1.61

92152

COLLAR

92152-Y006

$1.46

92153

BOLT,FLANGE,8X12

92153-Y001

$1.22

92153A

BOLT,FLANGE,8X40

92153-Y035

$2.98

92153B

BOLT,FLANGE,8X35

92153-Y039

$1.59

92153C

BOLT,FLANGE,6X12

92153-Y046

$0.83

92153D

BOLT,FLANGE,6X35

92153-Y053

$1.71

92153E

BOLT,FLANGE,6X45

92153-Y054

$4.44

92200

WASHER,10MM

92200-Y002

$1.53

92200A

WASHER

92200-Y008

$1.17

92200B

WASHER,8MM

92200-Y010

$0.68
