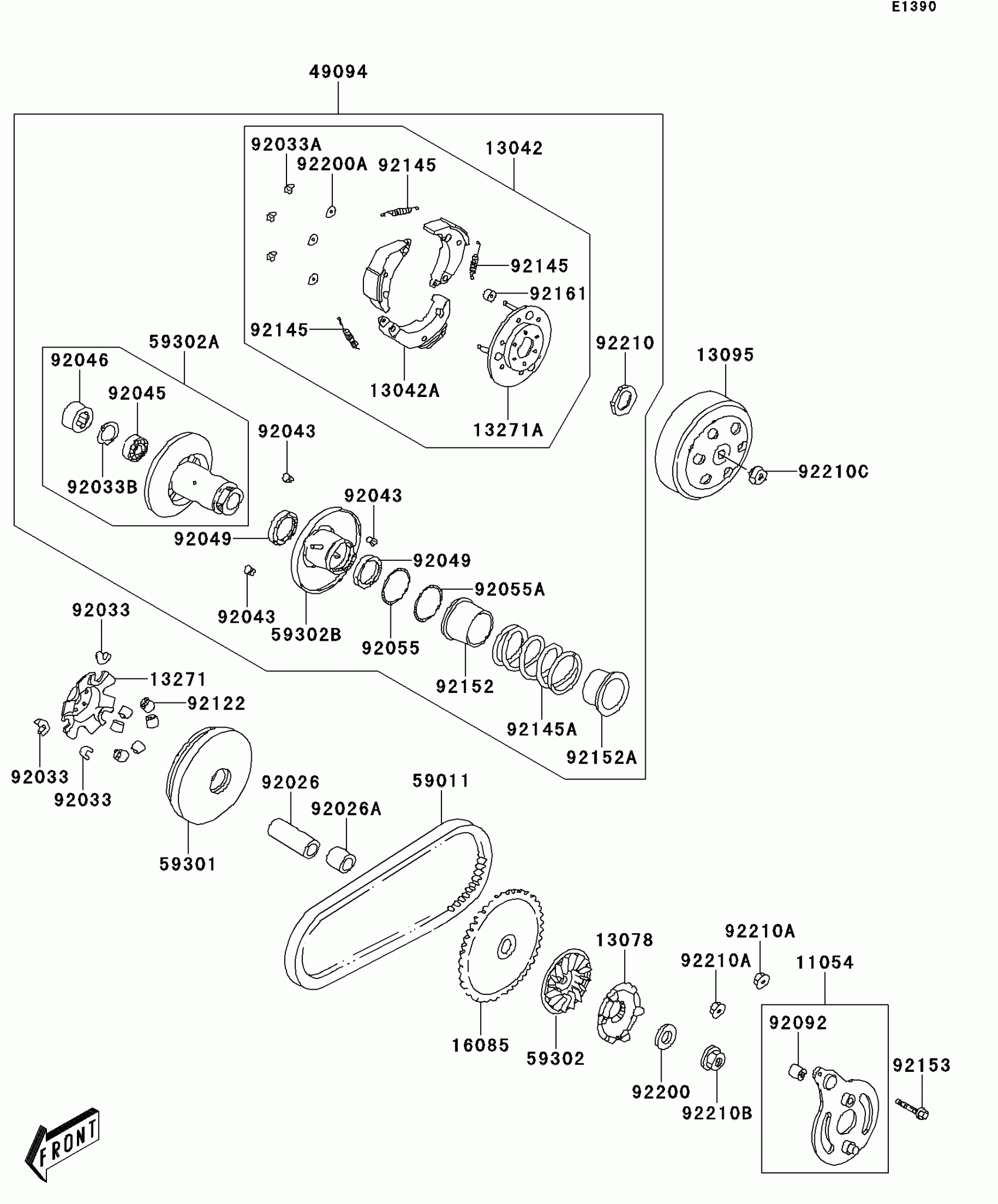

Kawasaki KFX®50 Belt Converter Diagram
#
11054
BRACKET,ENG HANGER
11054-Y006
$36.00
13042
WEIGHT,ASSY
13042-Y001
$73.53
13042A
WEIGHT,CLUTCH
13042-Y003
$23.03
13078
RATCHET,KICK STARTER
13078-Y001
$16.81
13095
HOUSING-COMP-CLUTCH
13095-Y001
$42.94
13271
PLATE,MOVABLE DRIVE
13271-Y004
$16.99
13271A
PLATE,DRIVE COMP
13271-Y005
$14.01
16085
GEAR
16085-Y003
$19.00
49094
CONVERTER-ASSY-DRIVEN
49094-Y002
$235.10
59011
BELT,DRIVE
59011-Y001
$52.36
59301
SHEAVE-MOVABLE
59301-Y001
$32.41
59302
SHEAVE-COMP,FIEXED DRIVE
59302-Y002
$16.02
59302A
SHEAVE-COMP,FIXED
59302-Y003
$101.93
59302B
SHEAVE-COMP,MOVABLE
59302-Y005
$66.57
92026
SPACER
92026-Y001
$16.94
92026A
SPACER
92026-Y003
$4.20
92033
RING-SNAP
92033-Y005
$2.44
92033A
RING-SNAP,6MM
92033-Y007
$0.76
92033B
RING-SNAP
92033-Y013
$1.40
92043
PIN,GUIDE
92043-Y003
$2.23
92045
BEARING-BALL,6901U
92045-Y001
$19.31
92046
BEARING-NEEDLE,17X25X18
92046-Y001
$19.76
92049
SEAL-OIL,34X39X3
92049-Y007
$5.13
92055
RING-O,36X1.5
92055-Y004
$1.76
92055A
RING-O,39.8X2.2
92055-Y006
$3.17
92092
BUSHING-RUBBER
92092-Y002
$5.65
92122
ROLLER
92122-Y002
$5.13
92145
SPRING,CLUTCH
92145-Y006
$3.12
92145A
SPRING
92145-Y008
$39.35
92152
COLLAR,SEAL
92152-Y002
$7.28
92152A
COLLAR,SPRING
92152-Y004
$8.69
92153
BOLT,FLANGE,8X50
92153-Y037
$2.66
92161
DAMPER
92161-Y002
$4.20
92200
WASHER,12MM
92200-Y003
$2.56
92200A
WASHER,6MM
92200-Y005
$0.76
92210
NUT,28MM
92210-Y002
$3.69
92210A
NUT,8MM
92210-Y013
$1.90
92210B
NUT,12MM
92210-Y020
$4.73
92210C
NUT,10MM
92210-Y029
$1.58
