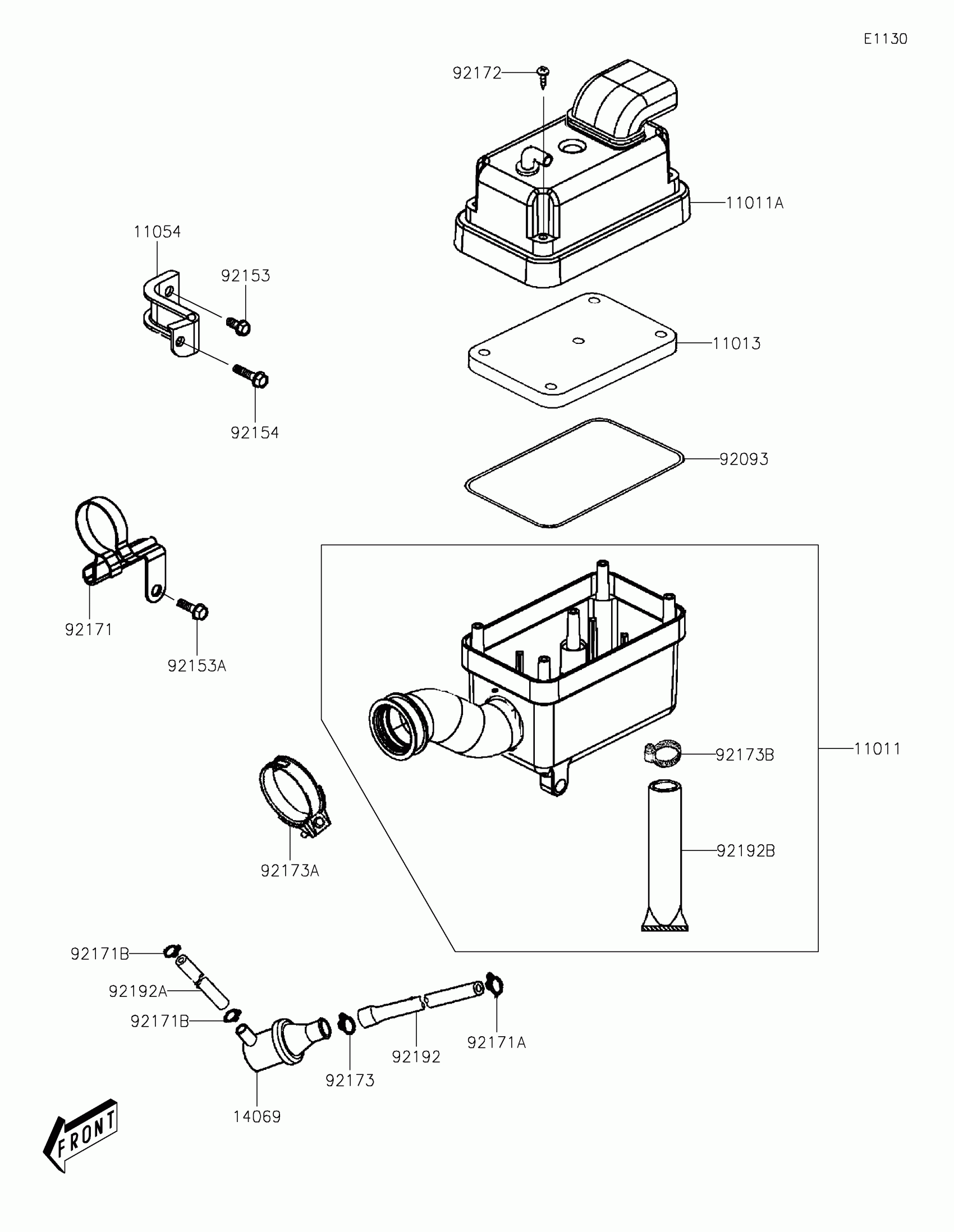

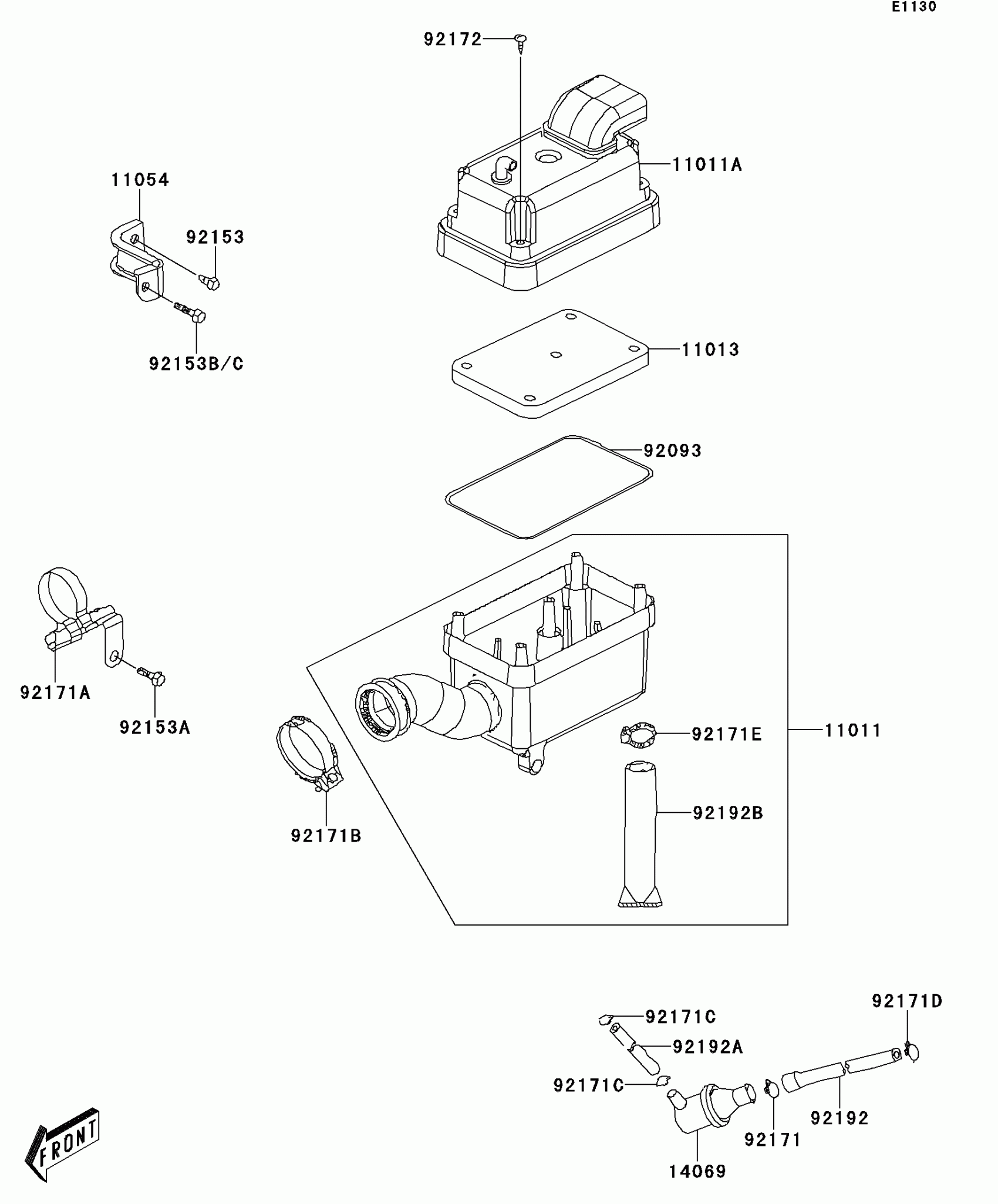

Kawasaki KFX®50 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER,LWR

11011-Y003

$67.64

11011A

CASE-AIR FILTER,UPP

11011-Y004

$60.34

11013

ELEMENT-AIR FILTER

11013-Y001

$8.01

11054

BRACKET

11054-Y002

$4.72

14069

BREATHER

14069-Y002

$7.32

92093

SEAL,AIR FILTER

92093-Y002

$5.13

92153

BOLT,FLANGE,6X12

92153-Y023

$0.76

92153A

BOLT,FLANGE,6X22

92153-Y026

$0.79

92154

BOLT,FLANGE,6X25

92154-Y130

$0.68

92171

CLAMP

92171-Y007

$6.62

92171A

CLAMP

92171-Y011

$0.79

92171B

CLAMP

92171-Y012

$0.76

92172

SCREW,5X20

92172-Y018

$0.79

92173

CLAMP,BREATHER TUBE

92173-Y100

$1.75

92173A

CLAMP,44MM

92173-Y101

$15.59

92173B

CLAMP

92173-Y102

$13.97

92192

TUBE

92192-Y025

$5.18

92192A

TUBE

92192-Y026

$2.23

92192B

TUBE,DRAIN

92192-Y027

$6.32
