Description

Price

13127

SHAFT-TRANSMISSION INPUT

13127-0039

$235.56

13144

SPROCKET-OUTPUT,14T

13144-0042

$37.74

13262

GEAR-TRANSMISSION SPUR,16T

13262-0352

Unavailable

13262B

GEAR,INPUT REV,11T

13262-0356

$109.11

13262C

GEAR,OUTPUT LOW,29T

13262-0357

$109.11

13262D

GEAR,OUTPUT 2ND,27T

13262-0358

$109.11

13262E

GEAR,OUTPUT REV,26T

13262-0362

$109.11

13262F

GEAR,OUTPUT 5TH,22T

13262-0476

$109.11

13262G

GEAR,INPUT 2ND&3RD,15T&17T

13262-0503

$109.11

13262H

GEAR,OUTPUT 3RD,26T

13262-0504

$109.11

13262I

GEAR,INPUT 4TH,18T

13262-0595

$109.11

13262J

GEAR,OUTPUT 4TH,23T

13262-0596

$109.11

13262K

GEAR,INPUT 5TH,21T

13262-0614

$109.11

13280

HOLDER

13280-0188

$48.58

13307

SHAFT-COMP-OUTPUT

13307-0002

$172.55

39115

SHAFT-IDLER,REVERSE

39115-0014

$32.13

92015

NUT,20MM

92015-1963

$14.90

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92033A

RING-SNAP,25MM

92033-1172

$5.08

92046

BEARING-NEEDLE,16X22X14

92046-0023

$21.14

92055

RING-O,21X1.9

92055-0128

$4.09

92122

ROLLER

92122-1201

$2.24

92139

BUSHING,21.4X26X12.8

92139-0152

$32.72

92139A

BUSHING,20X24X12.75

92139-0153

$22.86

92139B

BUSHING,25X31X22.7

92139-0154

$43.96

92139C

BUSHING,28X31X11

92139-0155

$14.13

92139D

BUSHING,25X27X12.2

92139-0229

$24.76

92152

COLLAR,25X30X14

92152-0524

$21.36

92153

BOLT,TORX,6X20

92153-1653

$2.15

92153A

BOLT,TORX,6X30

92153-1654

$2.24

92153B

BOLT,TORX,8X30

92153-1655

$2.73

92200

WASHER,28.1X34.0X1.2

92200-0051

$4.15

92200A

WASHER,16X28X1

92200-0302

$4.86

92200B

WASHER,25.1X30X1.2

92200-0303

$4.09

92200C

WASHER,21.4X32X1.2

92200-0304

$4.09

92200D

WASHER,THRUST,28.3X34X1.2

92200-0305

$5.15

92200E

WASHER,THRUST,16.1X28.0X1.0

92200-0413

$4.09

92200F

WASHER

92200-1065

$6.63

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

480A

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

551

PIN,DOWEL,4X25

551A0425

$2.24

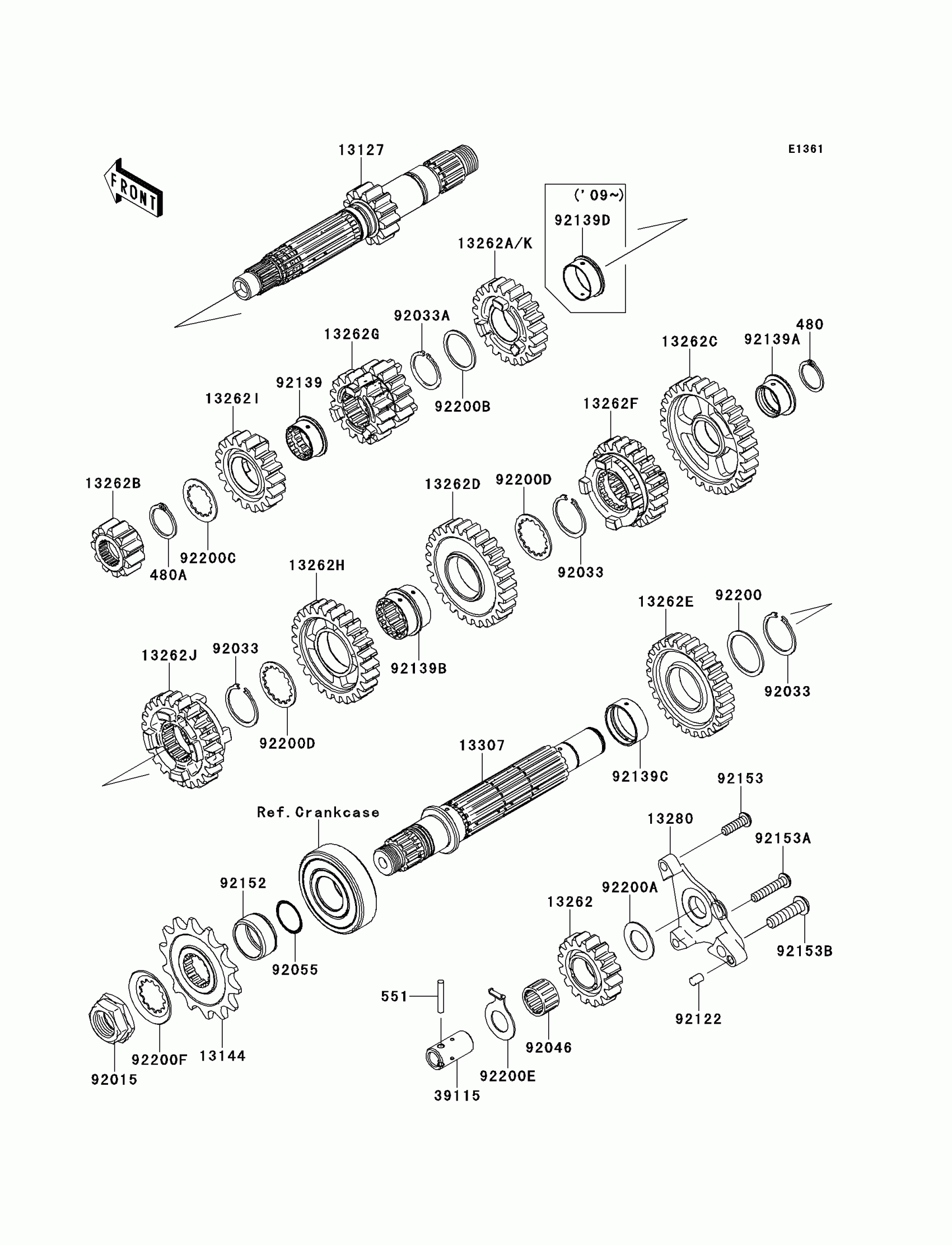

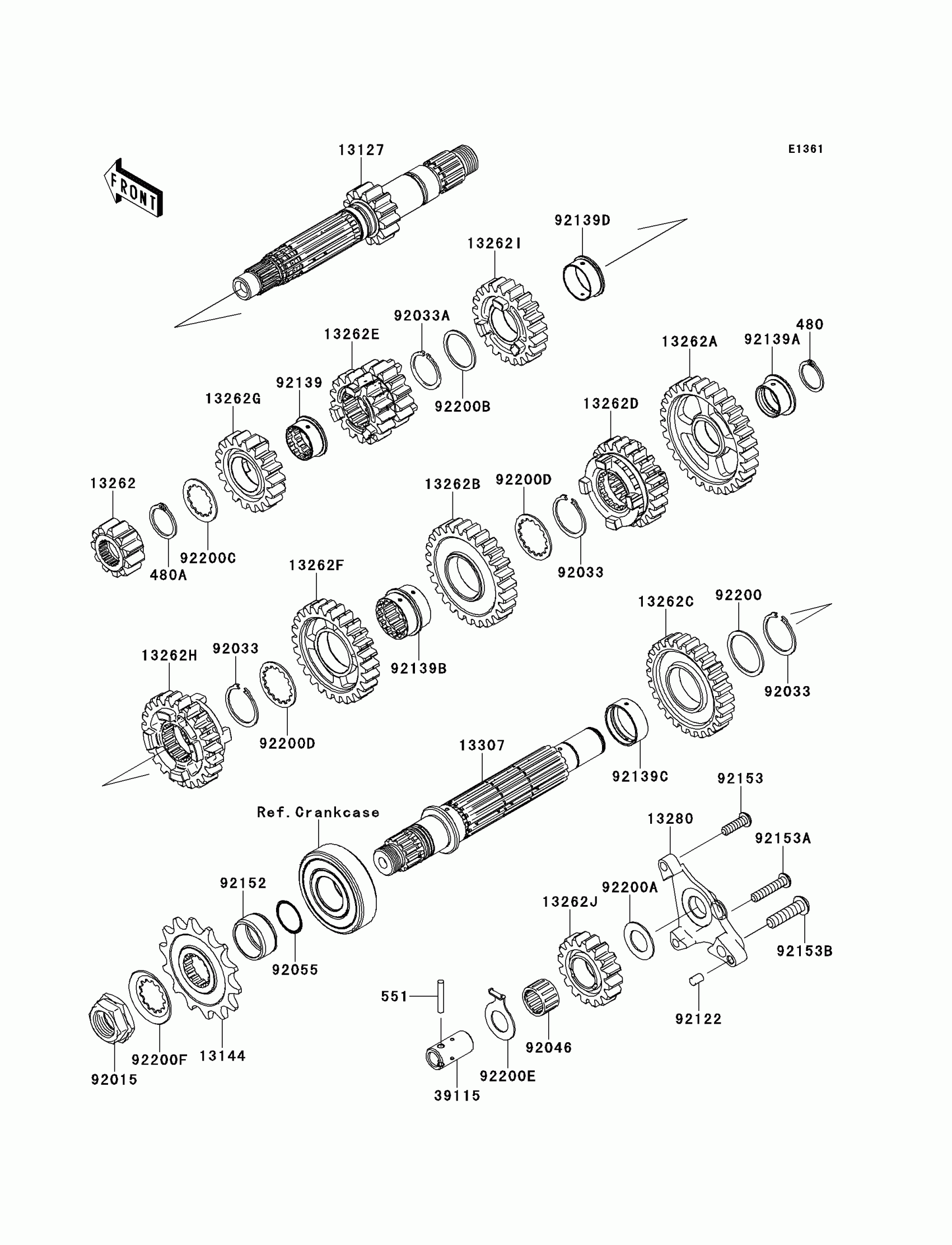

Kawasaki KFX®450R Transmission Diagram

SHAFT-TRANSMISSION INPUT

SPROCKET-OUTPUT,14T

GEAR-TRANSMISSION SPUR,16T

GEAR,INPUT REV,11T

GEAR,OUTPUT LOW,29T

GEAR,OUTPUT 2ND,27T

GEAR,OUTPUT REV,26T

GEAR,OUTPUT 5TH,22T

GEAR,INPUT 2ND&3RD,15T&17T

GEAR,OUTPUT 3RD,26T

GEAR,INPUT 4TH,18T

GEAR,OUTPUT 4TH,23T

GEAR,INPUT 5TH,21T

HOLDER

SHAFT-COMP-OUTPUT

SHAFT-IDLER,REVERSE

NUT,20MM

RING-SNAP,25.9X30.6X1.2

RING-SNAP,25MM

BEARING-NEEDLE,16X22X14

RING-O,21X1.9

ROLLER

BUSHING,21.4X26X12.8

BUSHING,20X24X12.75

BUSHING,25X31X22.7

BUSHING,28X31X11

BUSHING,25X27X12.2

COLLAR,25X30X14

BOLT,TORX,6X20

BOLT,TORX,6X30

BOLT,TORX,8X30

WASHER,28.1X34.0X1.2

WASHER,16X28X1

WASHER,25.1X30X1.2

WASHER,21.4X32X1.2

WASHER,THRUST,28.3X34X1.2

WASHER,THRUST,16.1X28.0X1.0

WASHER

CIRCLIP-TYPE-C,20MM

CIRCLIP-TYPE-C,22MM

PIN,DOWEL,4X25
