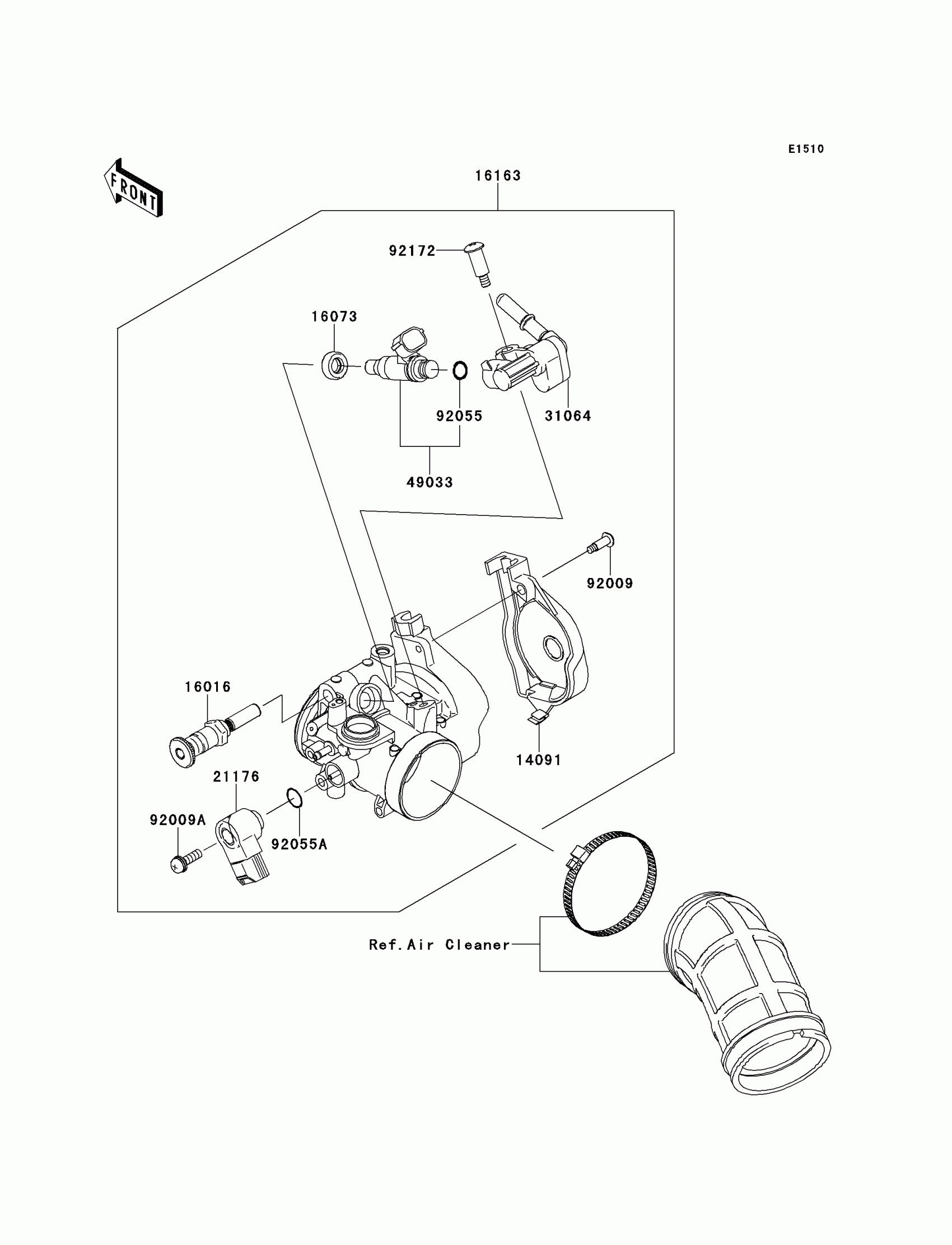

Kawasaki KFX®450R Throttle Diagram

Description

Price

14091

COVER

14091-0728

$59.76

16016

PLUNGER

16016-0022

$46.09

16073

INSULATOR

16073-3707

$6.18

16163

THROTTLE-ASSY,SINGLE BARREL42

16163-0083

$544.41

21176

SENSOR,TPS

21176-0001

$228.63

31064

PIPE-COMP

31064-0090

$66.08

49033

NOZZLE-INJECTION

49033-0010

$138.97

92009

SCREW,4X4.4

92009-1549

$5.24

92009A

SCREW,THROTTLE SENSOR

92009-1981

$2.41

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-1671

$3.73

92172

SCREW,PIPE INJECTION

92172-0064

$2.80
