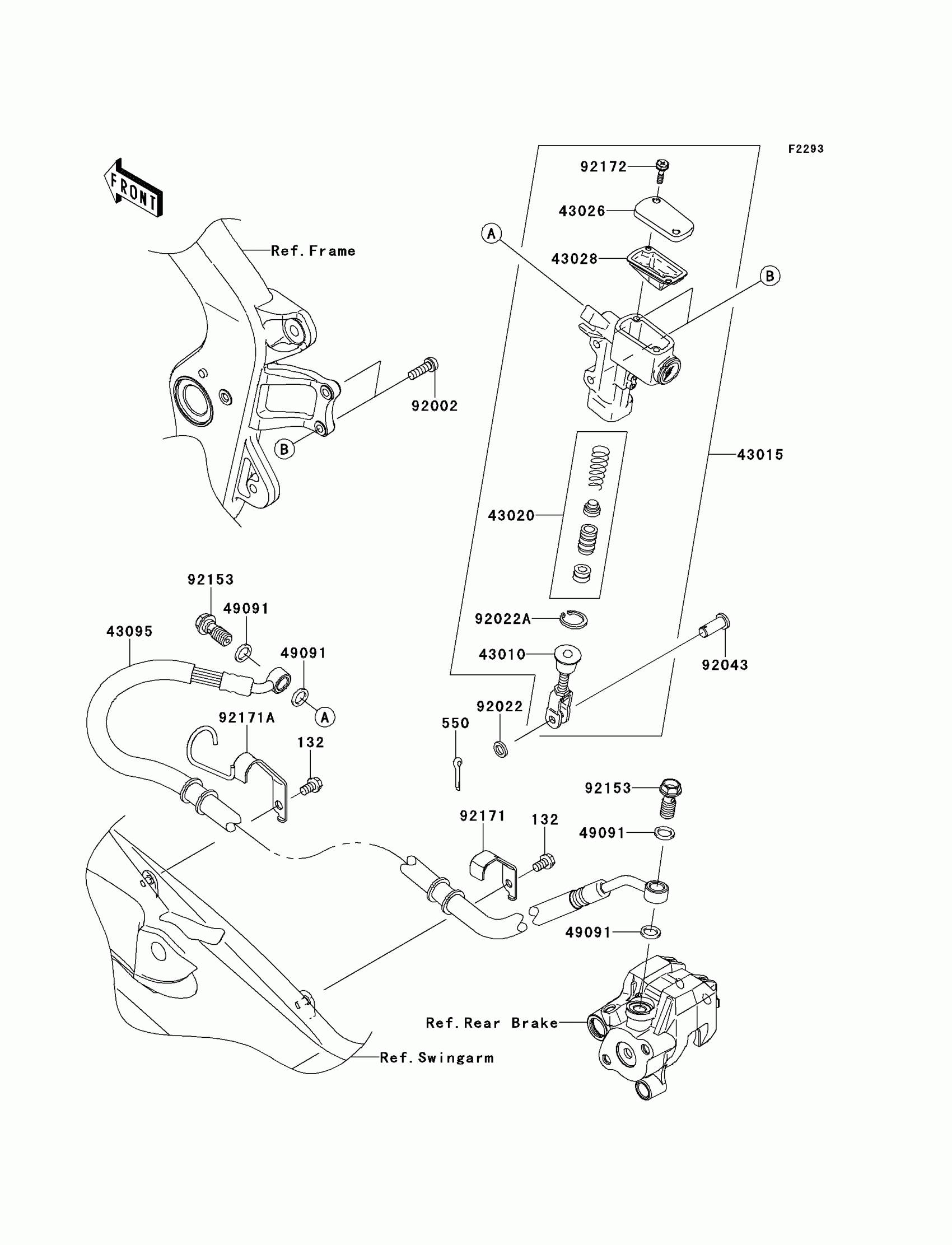

Kawasaki KFX®450R Rear Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

550

PIN-COTTER,2.0X15

550AA2015

$1.12

43010

ROD-ASSY-BRAKE

43010-0006

$55.84

43015

CYLINDER-ASSY-MASTER,RR

43015-0107

$321.06

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1086

$15.60

43028

DIAPHRAGM

43028-1092

$20.74

43095

HOSE-BRAKE,RR

43095-0345

$50.65

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,6X20

92002-1418

$4.92

92022

WASHER,8.5X13X1

92022-1028

$3.92

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92043

92043-0004

$11.16

92153

BOLT,OIL,L=23

92153-0627

$5.48

92171

CLAMP

92171-0661

$5.92

92171A

CLAMP

92171-1648

$5.92

92172

SCREW

92172-0286

$2.61
