Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.67

132B

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132C

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

610

ROLLER,4X8

610A0408

$4.31

670

O RING

670D1505

$4.31

670A

O RING,7MM

670D1507

$1.70

13107

SHAFT,OIL PUMP,SCAVENGE

13107-0134

$31.86

13107A

SHAFT,O/P IDLE

13107-0138

$8.12

13234

SHAFT-COMP,OIL PUMP,FEED

13234-0029

$104.28

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-0032

$42.44

16142A

COVER-PUMP

16142-0033

$42.44

16154

ROTOR-PUMP,SCAVENGE

16154-0069

$31.86

32153

PIPE

32153-1189

$8.66

39193

PIPE-OIL

39193-0038

$132.49

59051

GEAR-SPUR,O/P DRIVEN,28T

59051-0044

$30.45

59051A

GEAR-SPUR,O/P IDLE,26T

59051-0073

$42.44

92022

WASHER,8X16X0.5

92022-1475

$4.11

92033

RING-SNAP

92033-0019

$1.33

92055

RING-O,OD=13

92055-074

$8.58

92122

ROLLER,2.5X11.8

92122-0021

$2.61

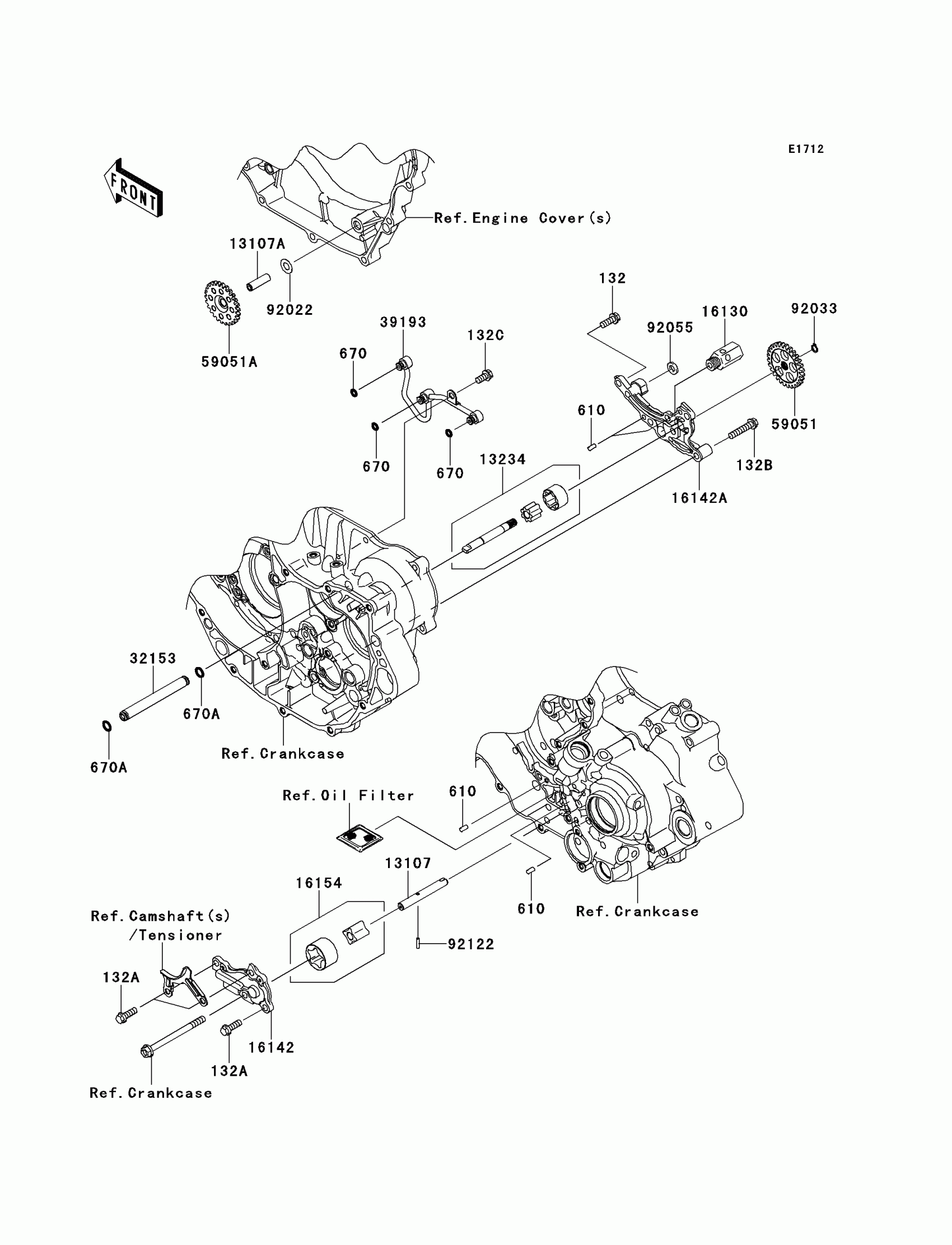

Kawasaki KFX®450R Oil Pump Diagram

BOLT-FLANGED-SMALL,6X16

BOLT-FLANGED-SMALL,6X18

BOLT-FLANGED-SMALL,6X30

BOLT-FLANGED-SMALL,6X12

ROLLER,4X8

O RING

O RING,7MM

SHAFT,OIL PUMP,SCAVENGE

SHAFT,O/P IDLE

SHAFT-COMP,OIL PUMP,FEED

VALVE-ASSY-RELIEF

COVER-PUMP

COVER-PUMP

ROTOR-PUMP,SCAVENGE

PIPE

PIPE-OIL

GEAR-SPUR,O/P DRIVEN,28T

GEAR-SPUR,O/P IDLE,26T

WASHER,8X16X0.5

RING-SNAP

RING-O,OD=13

ROLLER,2.5X11.8
