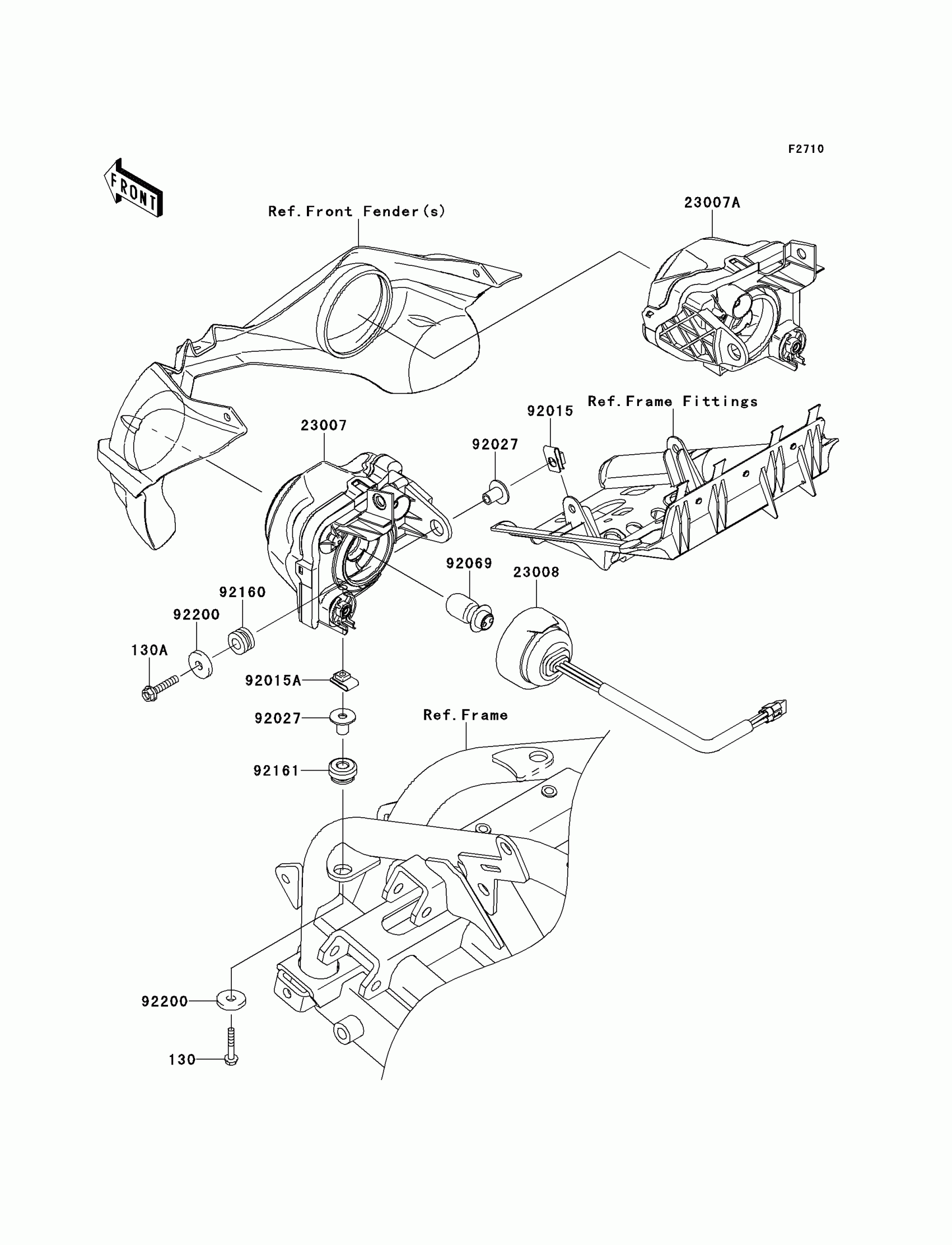

Kawasaki KFX®450R Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,5X30

130BA0530

$3.53

130A

BOLT-FLANGED,6X30

130BA0630

$1.46

23007

LENS-COMP,HEAD LAMP,LH

23007-0094

$108.72

23007A

LENS-COMP,HEAD LAMP,RH

23007-0095

$108.72

23008

SOCKET-ASSY,HEAD LAMP

23008-0079

$30.22

92015

NUT,6MM

92015-1602

$7.34

92015A

NUT,5MM

92015-1710

$6.22

92027

COLLAR,L=16.1

92027-1847

$6.22

92069

BULB,12V 30/30W

92069-1080

$30.59

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER

92161-0483

$4.86

92200

WASHER,6.5X20X3.2

92200-0359

$2.15
