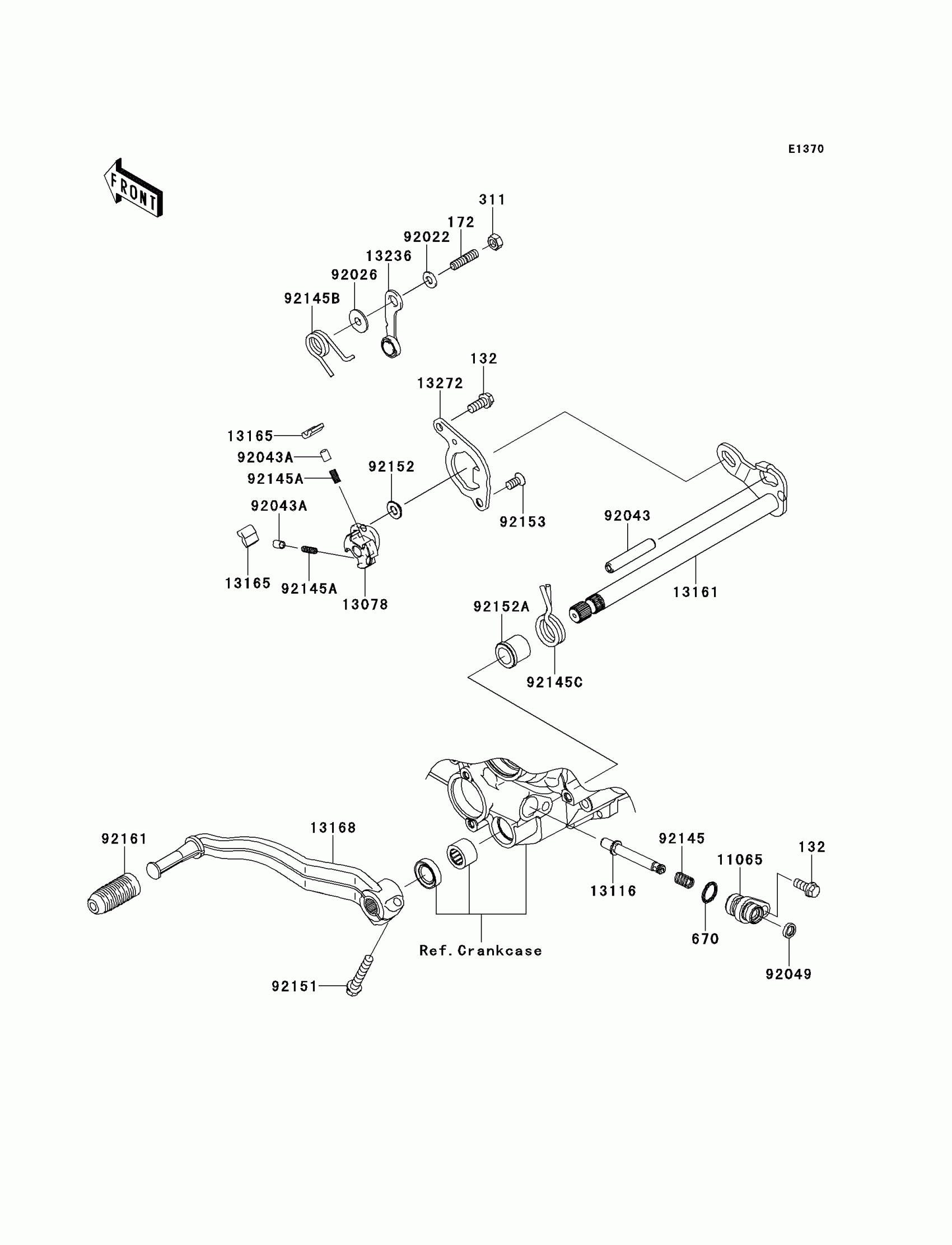

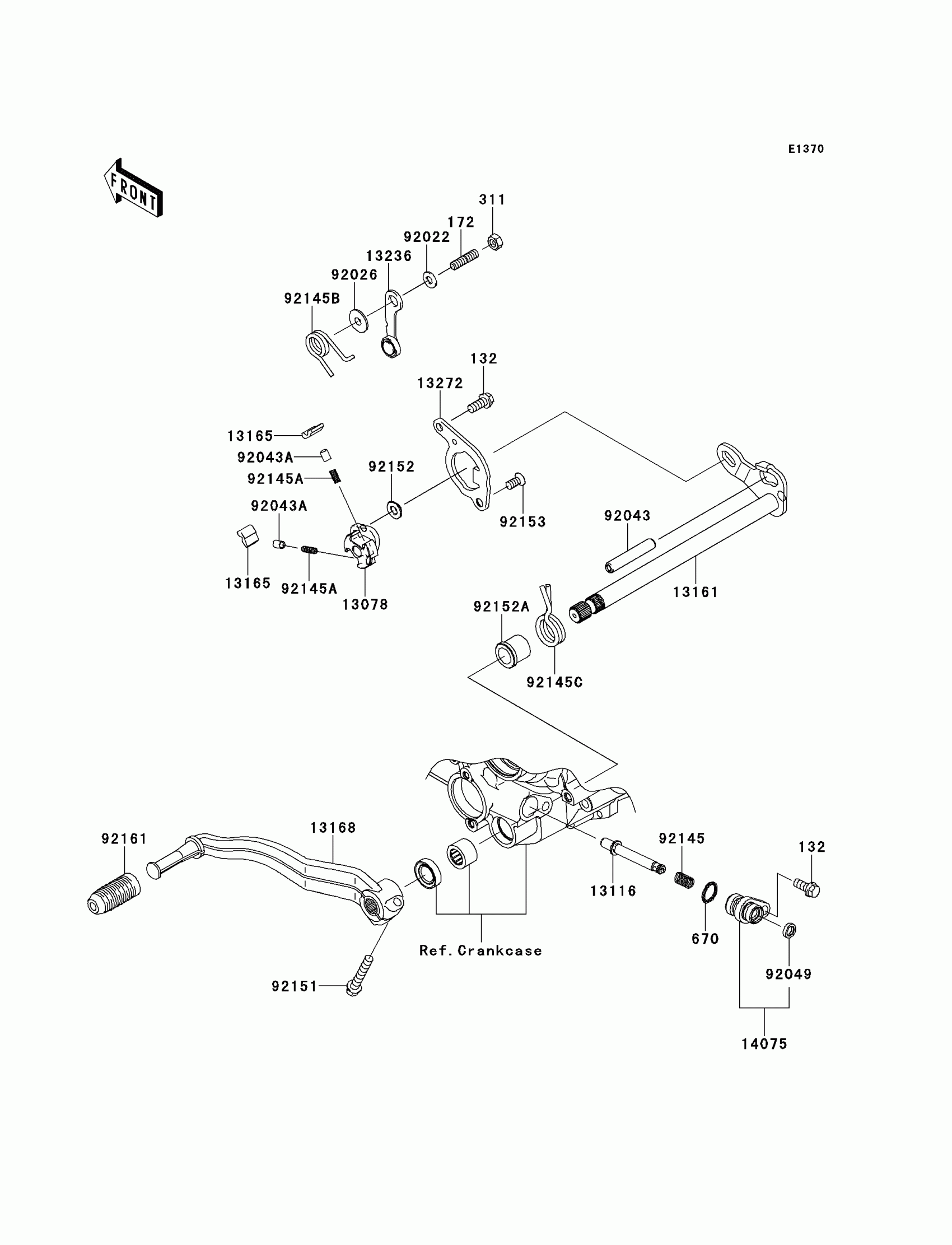

Kawasaki KFX®450R Gear Change Mechanism Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X14
132BD0614
$3.67
172
BOLT-STUD,6X12
172BA0612
$0.87
311
NUT-HEX,6MM
311BA0600
$2.23
670
O RING,12MM
670B2012
$3.23
13078
RATCHET
13078-0012
$71.23
13116
ROD-PUSH
13116-0024
$49.03
13161
LEVER-COMP-CHANGE SHAFT
13161-0055
$61.40
13165
PAWL
13165-0017
$20.49
13168
LEVER
13168-0162
$88.13
13236
LEVER-COMP,POSITION
13236-0129
$16.27
13272
PLATE
13272-0073
$14.26
14075
CAP-ASSY
14075-0005
Unavailable
92022
WASHER,6X12.8X1.2
92022-1827
$4.69
92026
SPACER
92026-1217
$5.52
92043
PIN,8X45
92043-0140
$10.90
92043A
PIN,PLUNGER
92043-1676
$8.72
92049
SEAL-OIL,6.6X11X2.5
92049-0094
$5.92
92145
SPRING,23.6MM
92145-0397
$5.86
92145A
SPRING
92145-0453
$3.87
92145B
SPRING
92145-0457
$4.05
92145C
SPRING,RETURN
92145-1493
$13.72
92151
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92152
COLLAR
92152-1414
$7.63
92152A
COLLAR,RETURN SPRING
92152-1419
$7.63
92153
BOLT,6X11.7
92153-0848
$3.23
92161
DAMPER
92161-0359
$4.66
