2010 Kawasaki KFX®450R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

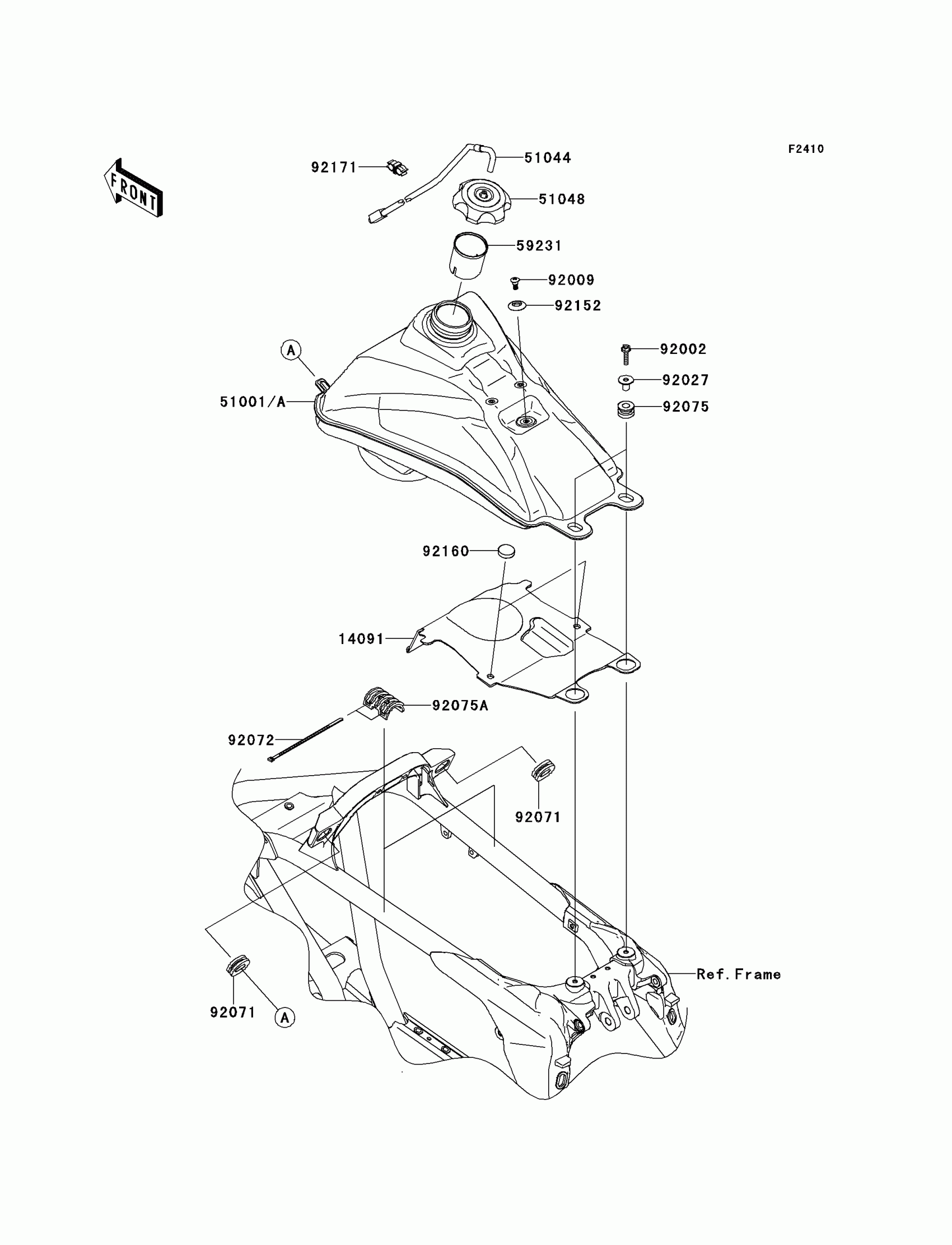

2010 Kawasaki KFX®450R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,FUEL TANK,UNDER

14091-0558

1
Out of stock

51001A

TANK-COMP-FUEL

51001-0337

1
Out of stock

51044

TUBE-ASSY,TANK CAP

51044-0019

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1
Out of stock

59231

FILLER,FUEL TANK

59231-0029

1
Out of stock

92002

BOLT,6X25

92002-1339

1
Out of stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92027

COLLAR,L=16.1

92027-1847

1
Out of stock

92071

GROMMET

92071-0040

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92075

DAMPER

92075-1787

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-1806

1
Out of stock

92152

COLLAR

92152-1346

1
Out of stock

92160

DAMPER

92160-1396

1
Out of stock

92171

CLAMP

92171-0129

1

$3.33

In stock
