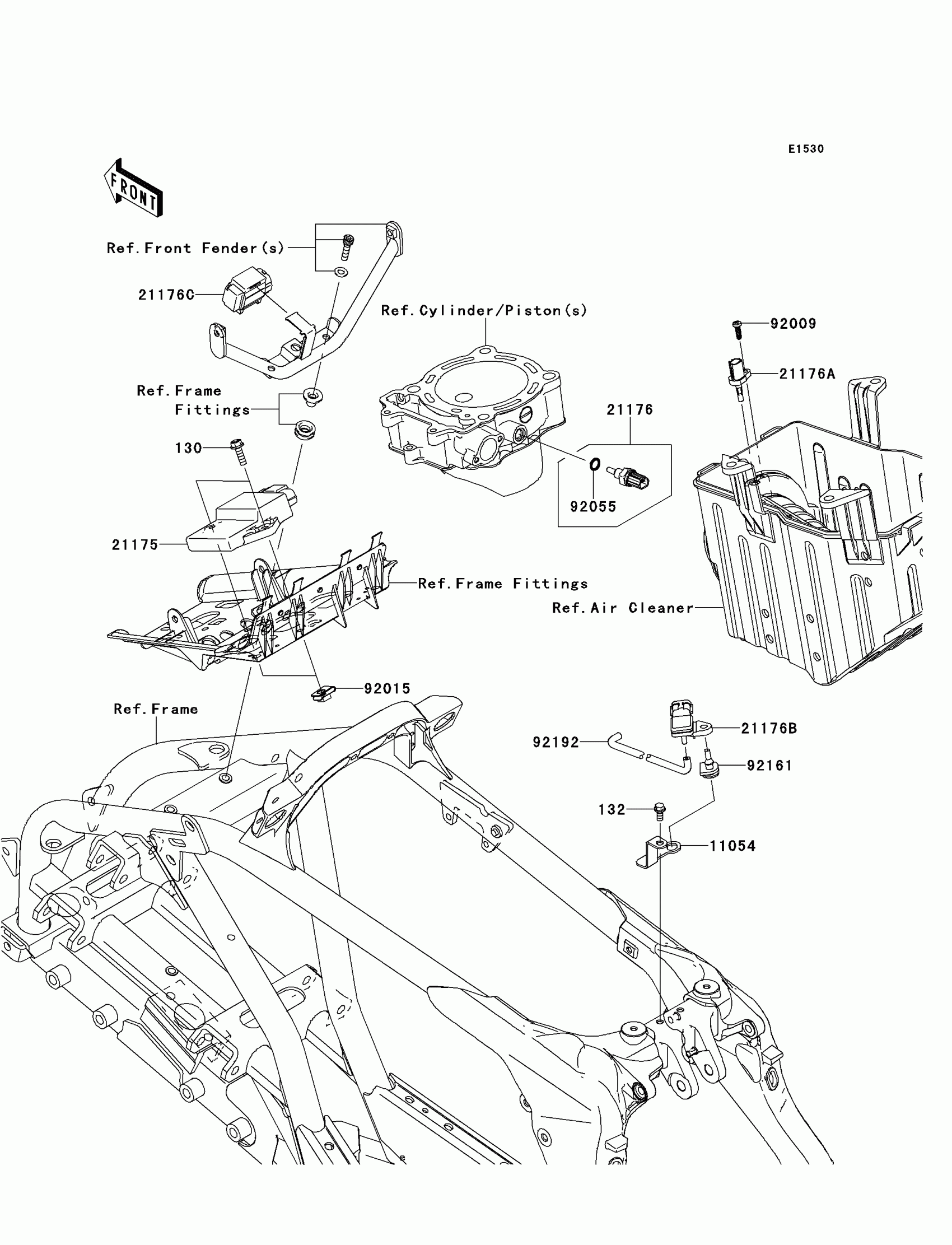

Kawasaki KFX®450R Fuel Injection Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BB0620

$0.47

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

11054

BRACKET,PRESSURE SENSOR

11054-1838

$22.63

21175

CONTROL UNIT-ELECTRONIC

21175-0099

$510.76

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176B

SENSOR,PRESSURE

21176-0058

$144.21

21176C

SENSOR,VEHICLE-DOWN

21176-0066

$104.78

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92015

NUT,6MM

92015-1602

$5.61

92055

RING-O,9.5X1.9

92055-0016

$6.77

92161

DAMPER

92161-0041

$4.59

92192

TUBE,3X7X17&190

92192-0356

$3.42
