Description

Price

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

550

PIN-COTTER,2.5X20

550AA2520

$1.36

550A

PIN-COTTER,3.0X25

550AA3025

$0.62

13107

SHAFT,FRONT AXLE

13107-0159

$43.28

13272

PLATE

13272-0081

$4.09

39007

ARM-SUSP,FR,UPP,LH,SILVER

39007-0148-16H

$148.03

39007B

ARM-SUSP,FR,UPP,RH,SILVER

39007-0149-16H

$148.03

39007D

ARM-SUSP,FR,LWR,LH,SILVER

39007-0150-16H

$176.49

39007F

ARM-SUSP,FR,LWR,RH,SILVER

39007-0151-16H

$176.49

39186

KNUCKLE,LH

39186-0076

Unavailable

39186A

KNUCKLE,RH

39186-0077

Unavailable

42036

SLEEVE

42036-0037

$58.46

42036A

SLEEVE

42036-1376

$14.71

59266

JOINT-BALL

59266-0013

$65.53

59266A

JOINT-BALL

59266-0014

$72.37

59266B

JOINT-BALL

59266-0015

$109.11

92022

WASHER,12.3X22X1.6

92022-1065

$3.96

92033

RING-SNAP

92033-0046

$2.71

92033A

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92152

COLLAR,10X17X14.5

92152-1455

$9.07

92153

BOLT,FLANGED,10X70

92153-1606

$4.65

92153A

BOLT,FLANGED,10X95

92153-1859

$10.79

92210

NUT,CASTLE,12MM

92210-0395

$3.86

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

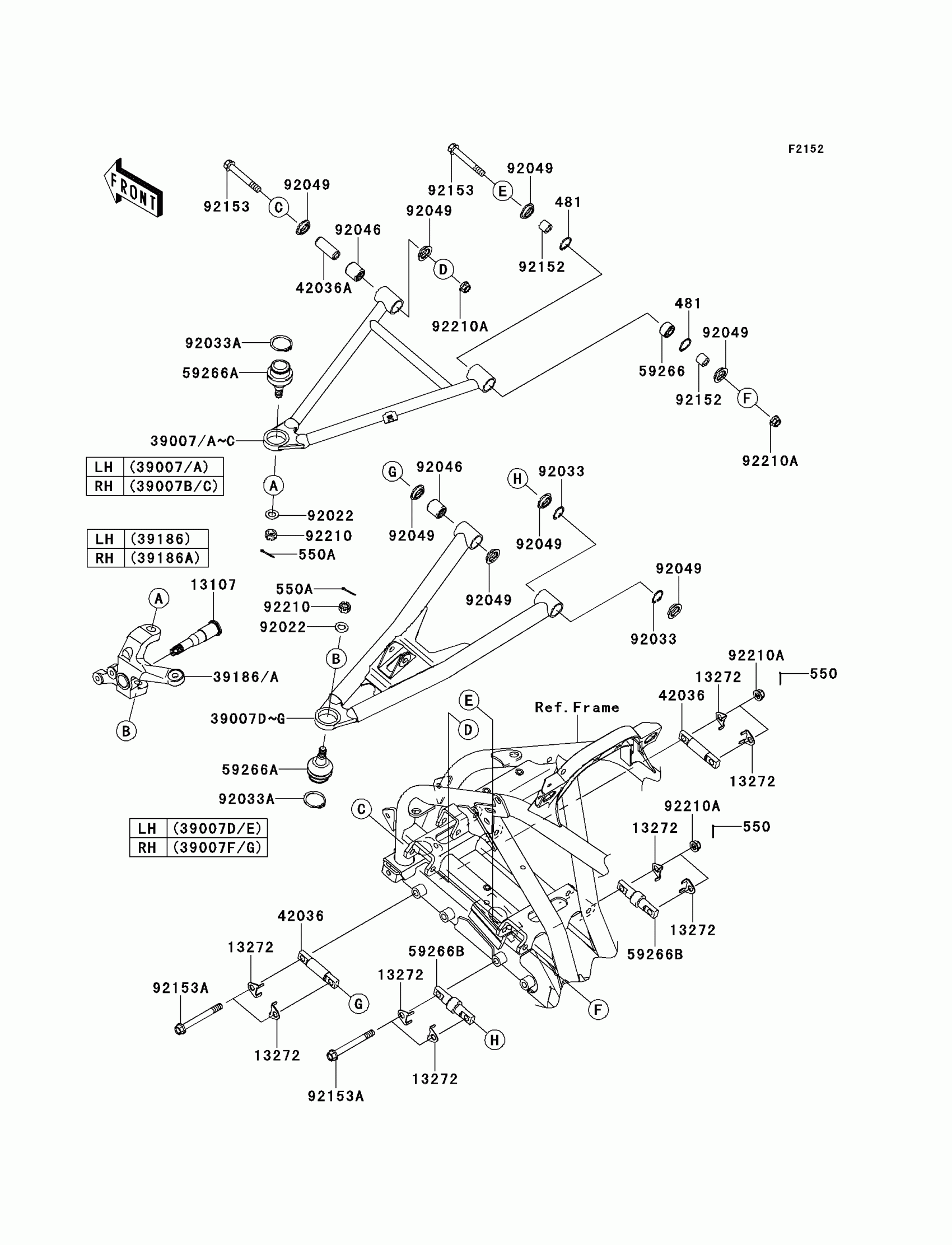

Kawasaki KFX®450R Front Suspension Diagram

CIRCLIP-TYPE-C,24MM

PIN-COTTER,2.5X20

PIN-COTTER,3.0X25

SHAFT,FRONT AXLE

PLATE

ARM-SUSP,FR,UPP,LH,SILVER

ARM-SUSP,FR,UPP,RH,SILVER

ARM-SUSP,FR,LWR,LH,SILVER

ARM-SUSP,FR,LWR,RH,SILVER

KNUCKLE,LH

KNUCKLE,RH

SLEEVE

SLEEVE

JOINT-BALL

JOINT-BALL

JOINT-BALL

WASHER,12.3X22X1.6

RING-SNAP

RING-SNAP,C-TYPE,32MM

BEARING-NEEDLE

SEAL-OIL,MHA17245.7F

COLLAR,10X17X14.5

BOLT,FLANGED,10X70

BOLT,FLANGED,10X95

NUT,CASTLE,12MM

NUT,LOCK,FLANGED,10MM
