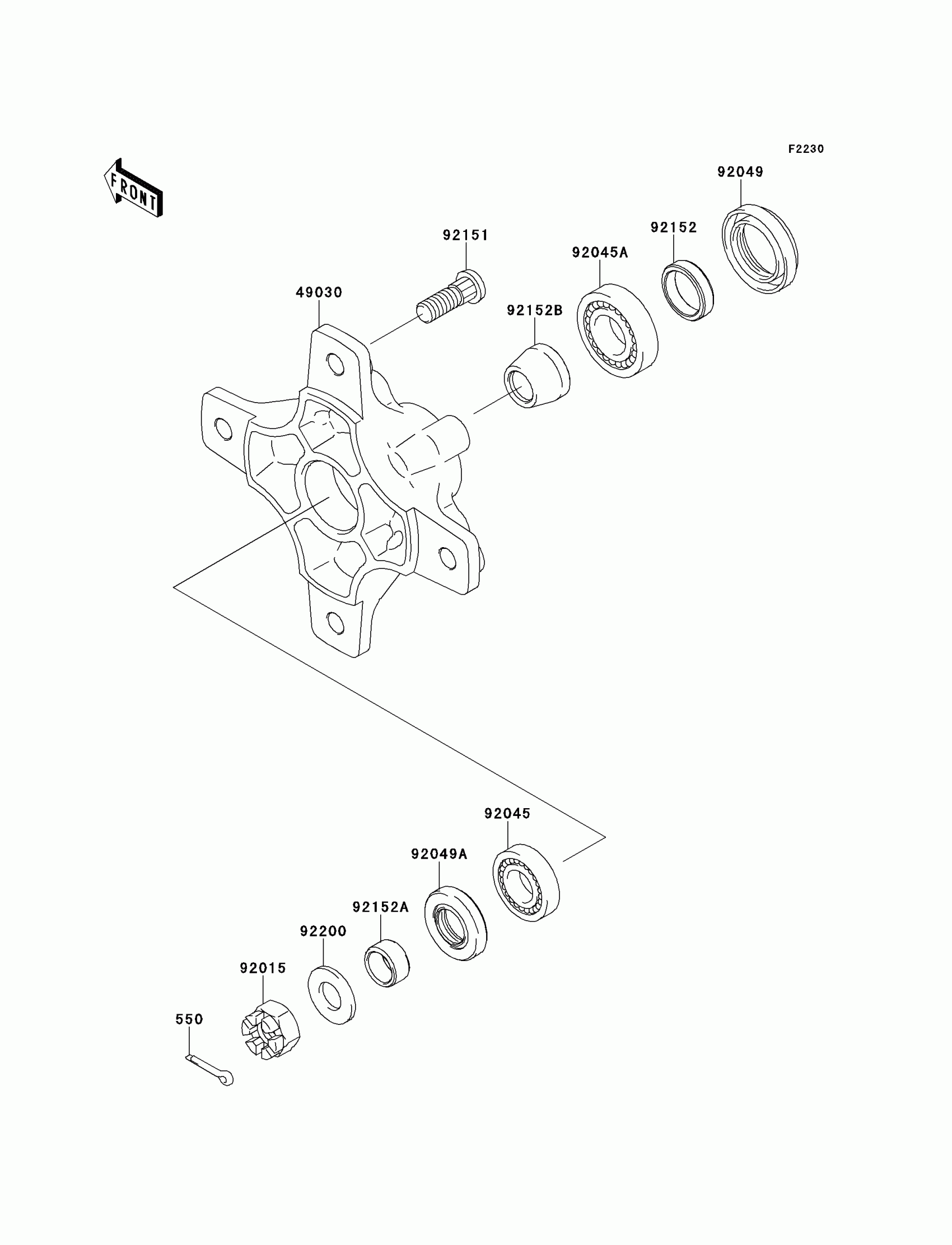

Kawasaki KFX®450R Front Hub Diagram

Description

Price

550

PIN-COTTER,3.0X30

550AA3030

$2.51

49030

HUB,FR

49030-1142

$133.73

92015

NUT,CASTLE,14MM

92015-1765

$9.91

92045

BEARING-BALL,62022RD

92045-0112

$16.83

92045A

BEARING-BALL,60042RD

92045-0113

Unavailable

92049

SEAL-OIL,MT028N1

92049-1612

$8.01

92049A

SEAL-OIL,MHSA20X35X7

92049-1613

$6.88

92151

BOLT,10X29.5

92151-1392

$4.50

92152

COLLAR,22.2X28X7

92152-0437

$9.09

92152A

COLLAR,15.2X20X16

92152-0609

$7.72

92152B

COLLAR

92152-1462

$13.55

92200

WASHER,14.2X28X2.5

92200-0392

$3.55
