Description

Price

32085

STOPPER

32085-1437

$13.04

32085A

STOPPER,LH

32085-1517

$7.99

41080

DISC,FR

41080-1534

$213.26

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0010

Unavailable

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-0011

Unavailable

43048

PISTON-CALIPER

43048-0007

$38.06

43049

PACKING,PISTON

43049-0008

$15.78

43049A

PACKING,WIPER

43049-0009

$15.78

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH

43080-0056

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0057

Unavailable

43082

PAD-ASSY-BRAKE,FR,LH

43082-0077

$53.12

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0078

$53.12

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

92043

PIN,PAD

92043-1356

$10.65

92145

SPRING,PAD

92145-1260

$15.40

92145A

SPRING,PAD,LH

92145-1354

$9.78

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92151

BOLT,FLANGED,8X19

92151-1793

$2.45

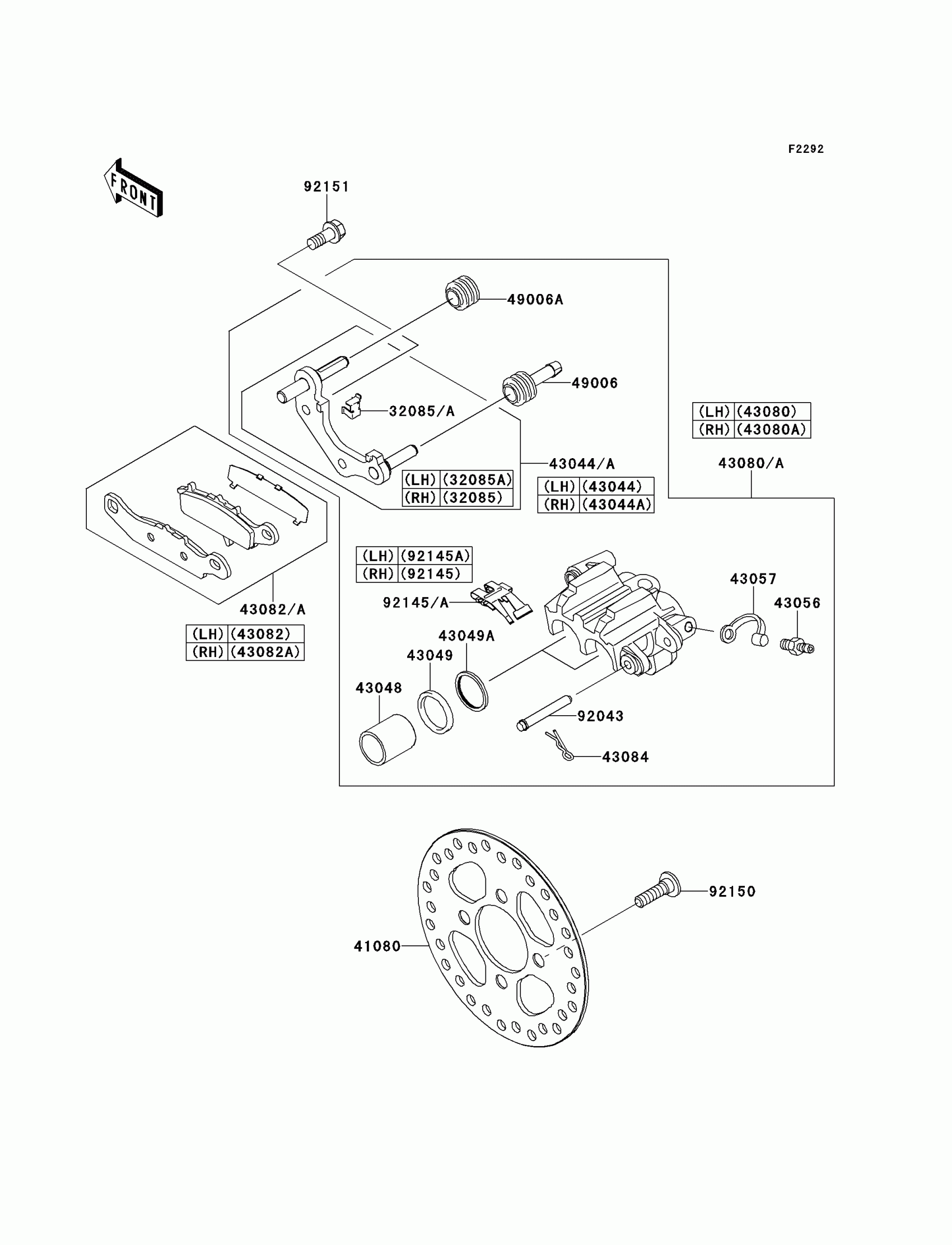

Kawasaki KFX®450R Front Brake Diagram

STOPPER

STOPPER,LH

DISC,FR

HOLDER-COMP-CALIPER,FR,LH

HOLDER-COMP-CALIPER,FR,RH

PISTON-CALIPER

PACKING,PISTON

PACKING,WIPER

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,LH

CALIPER-SUB-ASSY,FR,RH

PAD-ASSY-BRAKE,FR,LH

PAD-ASSY-BRAKE,FR,RH

CLAMP,PAD

BOOT,CALIPER

BOOT,CALIPER

PIN,PAD

SPRING,PAD

SPRING,PAD,LH

BOLT,SOCKET,8X30

BOLT,FLANGED,8X19
