Description

Price

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

11054

BRACKET,PAD,UPP,LH

11054-0279

$24.30

11054A

BRACKET,PAD,UPP,RH

11054-0280

$24.30

11054B

BRACKET,IGNITION COIL

11054-1805

$24.30

11054C

BRACKET

11054-1819

$15.94

11054D

BRACKET,TOOL CASE

11054-1881

$22.30

11055

BRACKET,AIR CLEANER BOX,LH

11055-0070

$20.34

11055A

BRACKET,AIR CLEANER BOX,RH

11055-0071

$20.34

11055B

BRACKET,ELECTRIC

11055-1003

$35.51

12053

GUIDE-CHAIN

12053-0077

$33.04

13272

PLATE,CHAIN GUIDE

13272-0080

$4.09

14091

COVER,AIR CLEANER

14091-0744

$15.71

32190

BRACKET-ENGINE

32190-0281

$49.03

32190A

BRACKET-ENGINE,FR,LWR,LH

32190-0296

$33.35

32190B

BRACKET-ENGINE,FR,LWR,RH

32190-0297

$33.35

32190C

BRACKET-ENGINE,HEAD,LH

32190-0298

$33.35

32190D

BRACKET-ENGINE,HEAD,RH

32190-0299

$33.35

92002

BOLT,10X145

92002-1348

$18.57

92002A

BOLT,ARM,10MM

92002-1576

$5.86

92009

SCREW,6X15

92009-3830

$3.32

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015B

NUT,6MM

92015-1602

$7.34

92022

WASHER,8.4X23X2.5

92022-3744

$4.18

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92028

BUSHING

92028-1507

$5.25

92072

BAND,L=186

92072-056

$5.00

92072A

BAND

92072-1085

$18.15

92075

DAMPER

92075-1634

$4.69

92075A

DAMPER

92075-277

$2.84

92122

ROLLER

92122-0020

$9.09

92150

BOLT,FLANGED,10X40

92150-1711

$12.35

92152

COLLAR

92152-0585

$10.79

92153

BOLT,8X20

92153-0892

$3.12

92153A

BOLT,6X50,WHITE

92153-0925

$5.92

92153B

BOLT,FLANGED,8X20

92153-0995

$4.86

92160

DAMPER

92160-1075

$6.57

92161

DAMPER

92161-0048

$6.37

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130B

BOLT-FLANGED,8X18

130CD0818

$3.12

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

411

WASHER-PLAIN,5MM

411AA0500

$0.56

411A

WASHER-PLAIN,6MM

411AA0600

$2.92

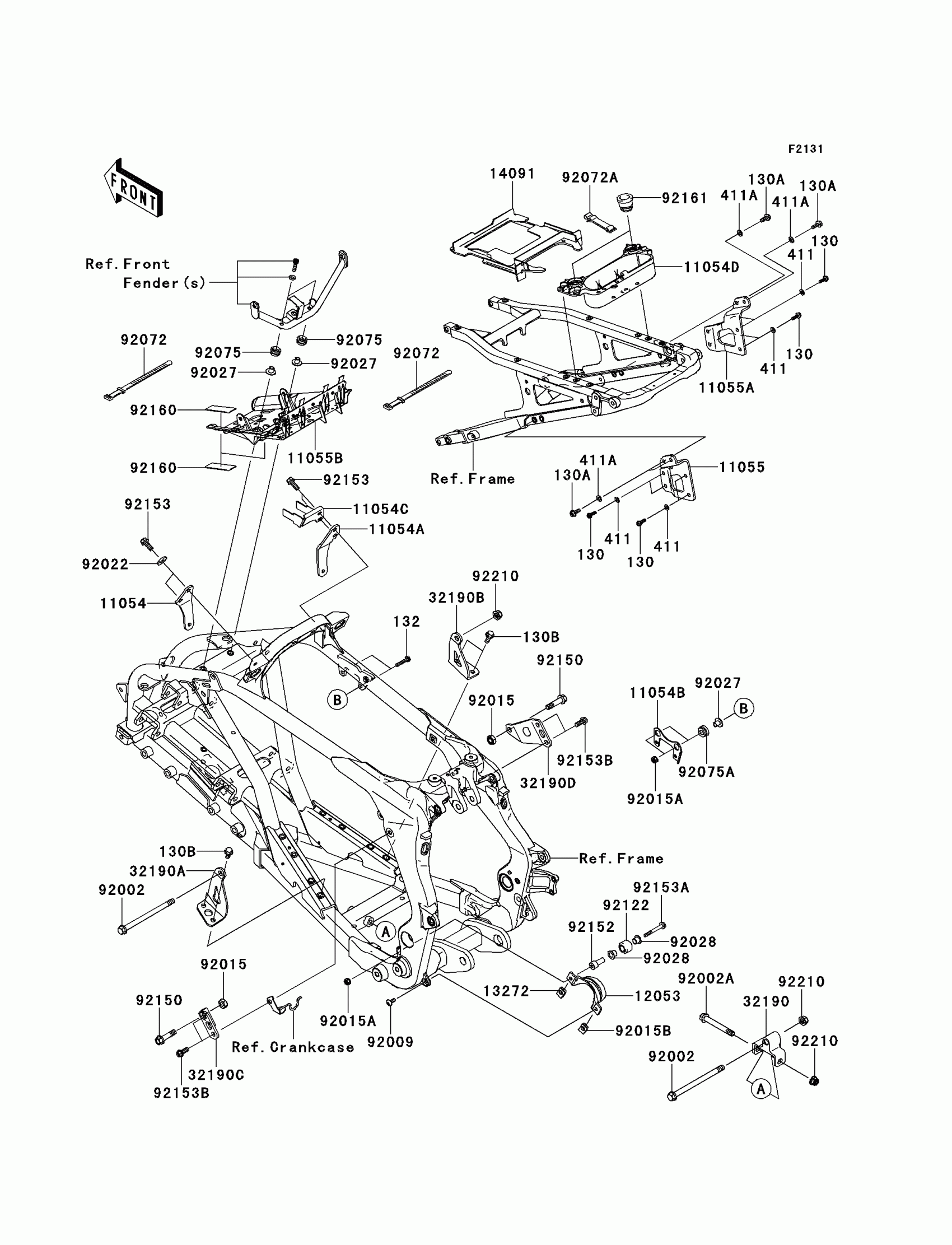

Kawasaki KFX®450R Frame Fittings Diagram

BOLT-FLANGED,5X16

BOLT-FLANGED,6X16

BRACKET,PAD,UPP,LH

BRACKET,PAD,UPP,RH

BRACKET,IGNITION COIL

BRACKET

BRACKET,TOOL CASE

BRACKET,AIR CLEANER BOX,LH

BRACKET,AIR CLEANER BOX,RH

BRACKET,ELECTRIC

GUIDE-CHAIN

PLATE,CHAIN GUIDE

COVER,AIR CLEANER

BRACKET-ENGINE

BRACKET-ENGINE,FR,LWR,LH

BRACKET-ENGINE,FR,LWR,RH

BRACKET-ENGINE,HEAD,LH

BRACKET-ENGINE,HEAD,RH

BOLT,10X145

BOLT,ARM,10MM

SCREW,6X15

NUT,LOCK,10MM,BLACK

NUT,LOCK,FLANGED,6MM

NUT,6MM

WASHER,8.4X23X2.5

COLLAR,FLANGED,L=12.1,BLACK

BUSHING

BAND,L=186

BAND

DAMPER

DAMPER

ROLLER

BOLT,FLANGED,10X40

COLLAR

BOLT,8X20

BOLT,6X50,WHITE

BOLT,FLANGED,8X20

DAMPER

DAMPER

NUT,LOCK,FLANGED,10MM

BOLT-FLANGED,8X18

BOLT-FLANGED-SMALL,6X30

WASHER-PLAIN,5MM

WASHER-PLAIN,6MM
