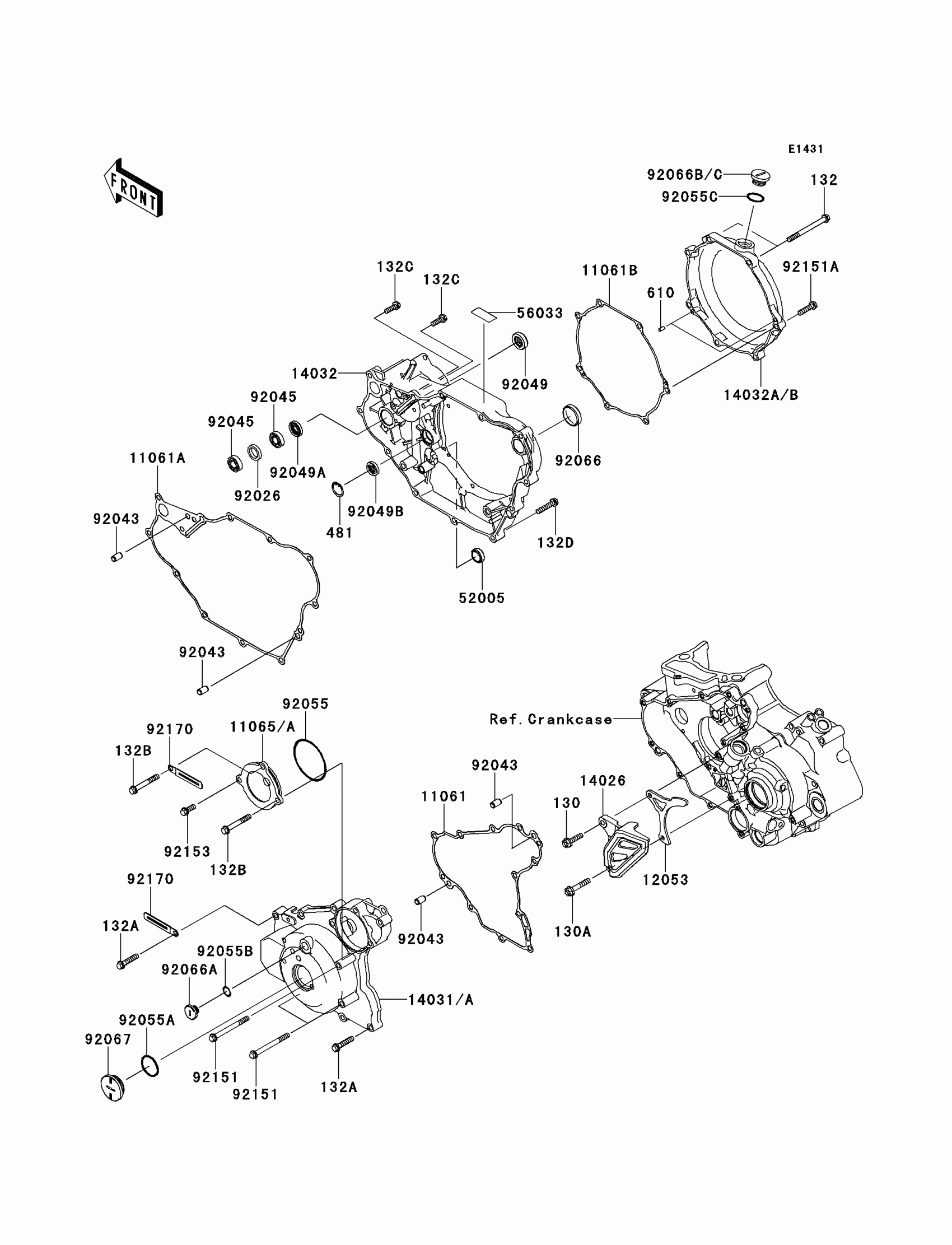

Kawasaki KFX®450R Engine Cover(s) Diagram
#
130
BOLT-FLANGED,6X25
130BB0625
$2.80
130A
BOLT-FLANGED,6X35
130BB0635
$4.76
132
BOLT-FLANGED-SMALL,6X18
132BA0618
$3.67
132A
BOLT-FLANGED-SMALL,6X30
132BC0630
$2.15
132B
BOLT-FLANGED-SMALL,6X45
132BC0645
$2.95
132C
BOLT-FLANGED-SMALL,6X70
132BC0670
$3.90
132D
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
11061
GASKET,GENERATOR COVER
11061-0235
$17.63
11061A
GASKET,CLUTCH COVER
11061-0236
$30.72
11061B
GASKET,CLUTCH OUTER COVER
11061-0259
$28.84
11065A
CAP,STARTER LIMITER
11065-0224
$57.92
12053
GUIDE-CHAIN
12053-0081
$10.03
14026
COVER-CHAIN
14026-0035
$31.15
14031A
COVER-GENERATOR
14031-0085
Unavailable
14032
COVER-CLUTCH
14032-0083
Unavailable
14032B
COVER-CLUTCH,OUTER
14032-0103
$141.01
52005
GAUGE,OIL LEVEL
52005-0019
$14.76
56033
LABEL-MANUAL,OIL CAPACITY
56033-0200
$7.29
92026
SPACER,16X22X4.3
92026-0064
$7.75
92043
PIN,8X14
92043-0130
$2.24
92045
BEARING-BALL,6900C3
92045-0039
$16.52
92049
SEAL-OIL,12X24X7
92049-0040
Unavailable
92049A
SEAL-OIL,12X22X5
92049-0041
Unavailable
92049B
SEAL-OIL,10X20X5
92049-1542
$7.95
92055
RING-O,58X2.5
92055-0110
$5.15
92055A
RING-O,27.7X2.4
92055-091
$6.22
92055B
RING-O,ID=13.8
92055-1141
$3.92
92055C
RING-O,20X2
92055-1146
$8.58
92066
PLUG,KICK STARTER
92066-0075
$8.05
92066A
PLUG,12X8
92066-0092
$8.05
92066B
PLUG,18X9
92066-0103
$10.69
92067
PLUG,30X8
92067-024
$11.29
92151
BOLT,6X65
92151-1199
$4.87
92151A
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92153
BOLT,6X16
92153-0695
$3.07
92170
CLAMP
92170-1514
$4.31
481
CIRCLIP-TYPE-C,20MM
481J2000
$7.71
610
ROLLER,4X8
610A0408
$4.31
