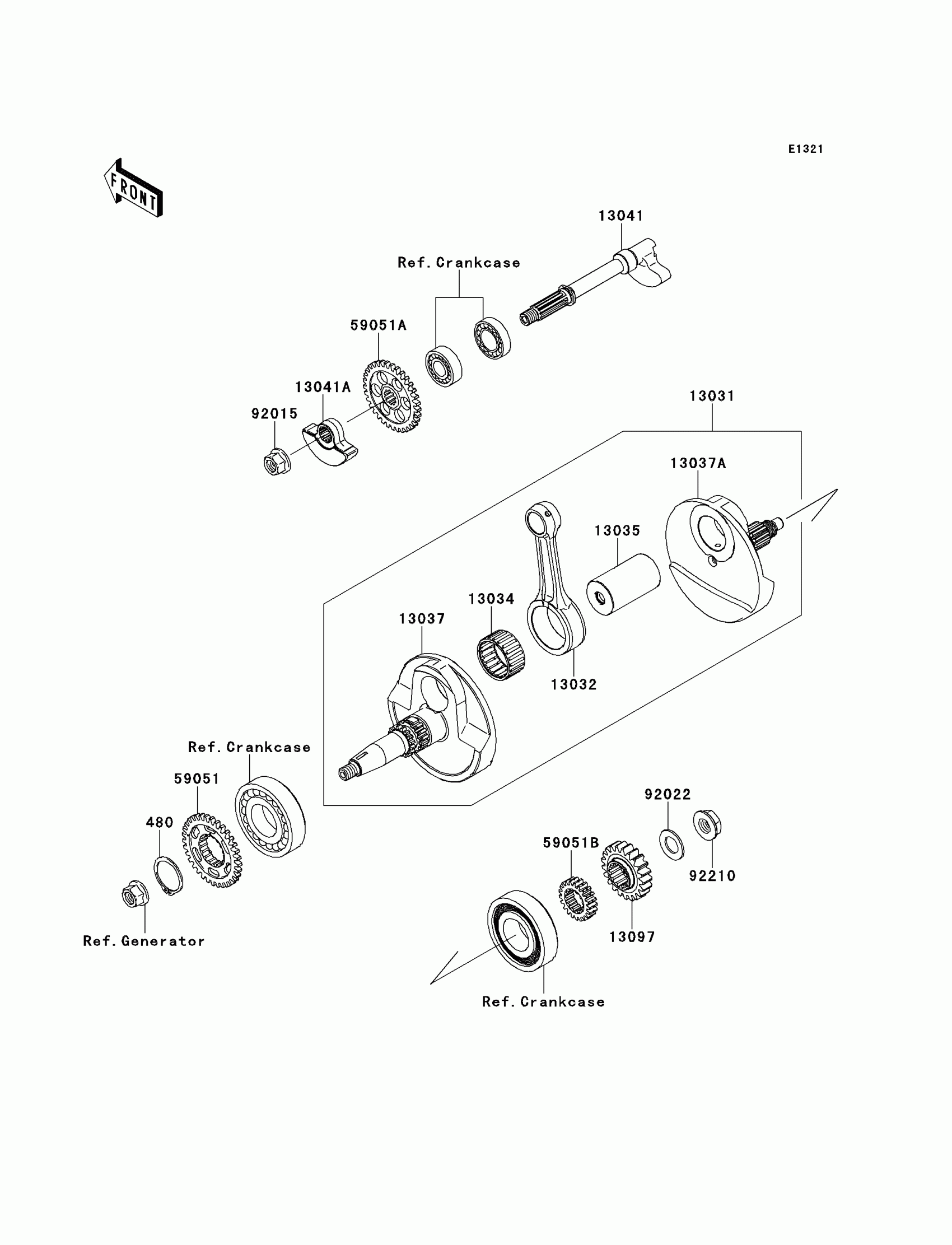

Kawasaki KFX®450R Crankshaft Diagram

Description

Price

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

13031

CRANKSHAFT-COMP

13031-0068

$554.68

13032

ROD-CONNECTING

13032-0054

$126.50

13034

BEARING-BIG END,B4

13034-0006

$73.49

13035

PIN-CRANK

13035-0013

$51.58

13037

CRANKSHAFT,LH

13037-0082

$229.91

13037A

CRANKSHAFT,RH

13037-0083

$229.91

13041

BALANCER,SHAFT

13041-0017

$260.10

13041A

BALANCER,WEIGHT

13041-0021

$53.69

13097

GEAR-PRIMARY SPUR,21T

13097-0061

$69.82

59051

GEAR-SPUR,BALANCER DRIVE,33T

59051-0070

$59.62

59051A

GEAR-SPUR,BALANCER DRIVEN,33T

59051-0071

$59.62

59051B

GEAR-SPUR,OIL PUMP DRIVE,21T

59051-0075

$28.82

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92022

WASHER,16.3X29X1.75

92022-1356

$7.34

92210

NUT,LEFT HANDED,16MM

92210-0350

$10.30
