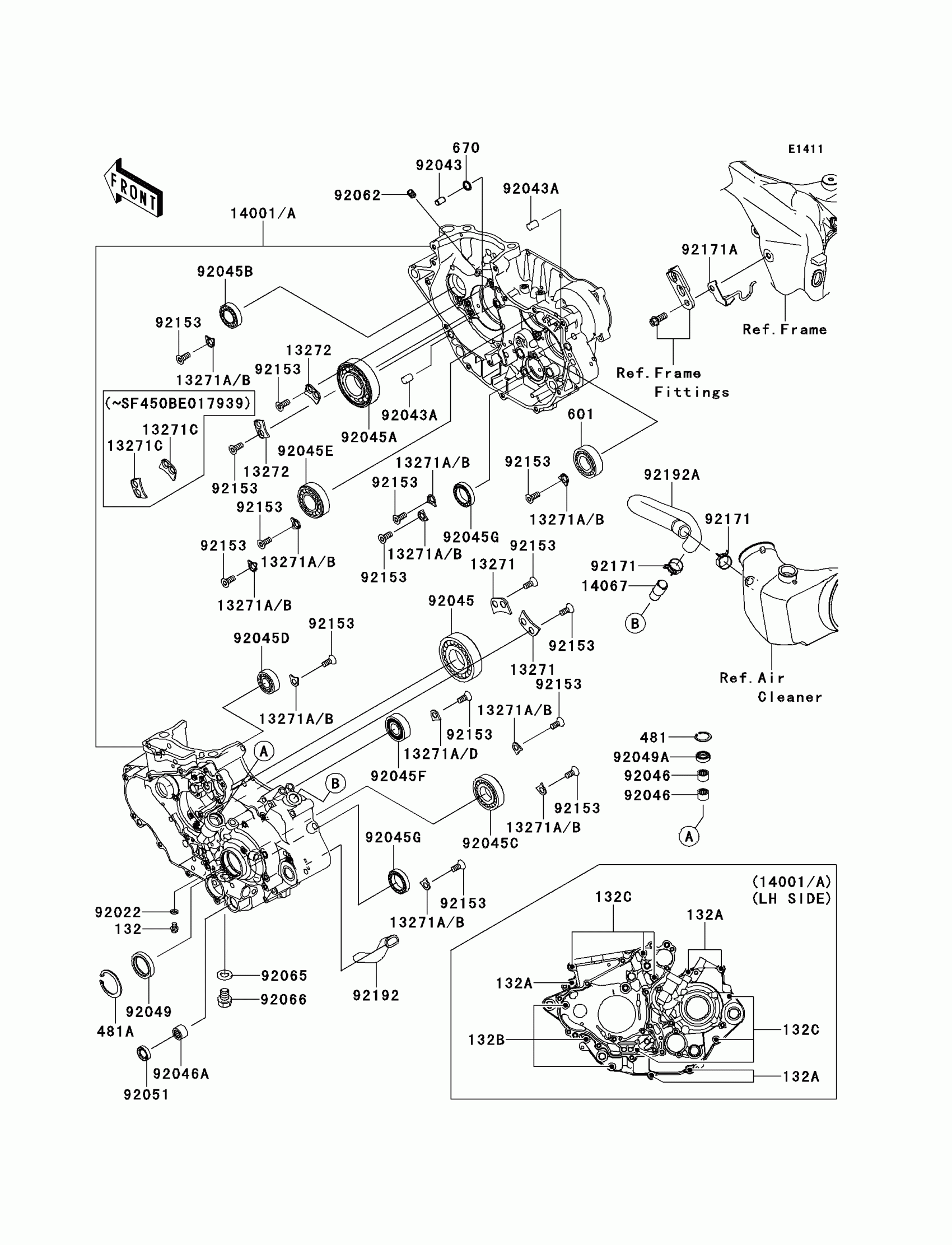

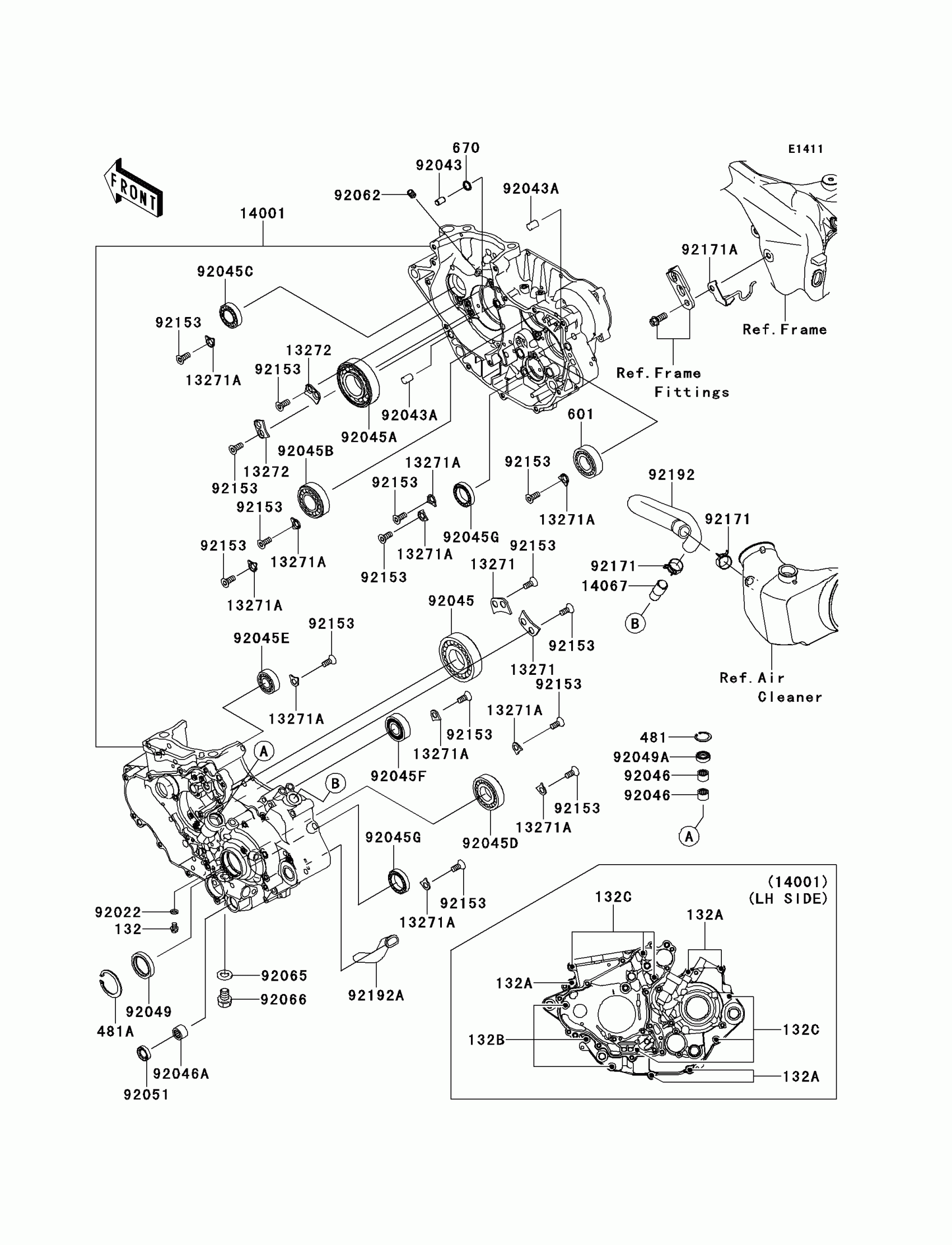

Kawasaki KFX®450R Crankcase Diagram

#

Description
Price

13271

PLATE

13271-0334

$7.75

13271A

PLATE

13271-0345

$5.33

13272

PLATE

13272-0494

$6.19

14001A

SET-CRANKCASE

14001-0139

Unavailable

14067

FITTING,BREATHER

14067-006

$21.09

92022

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,8X14

92043-0130

$2.24

92043A

PIN,10X14

92043-1506

$3.32

92045

BEARING-BALL,B32-32U-A-EC4 UR5

92045-0024

$47.29

92045A

BEARING-BALL,B32-32-A-DUX8EC4

92045-0031

$55.89

92045B

BEARING-BALL,6904C3UR5

92045-0038

$23.92

92045C

BEARING-BALL,25X62X17

92045-0056

$33.85

92045D

BEARING-BALL,6202SH2C3

92045-0079

Unavailable

92045E

BEARING-BALL,TM-SX05A4604

92045-0081

Unavailable

92045F

BEARING-BALL,3TM-5X0391LUC3

92045-0082

Unavailable

92045G

BEARING-BALL,6805JRZ

92045-1432

$32.41

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,TC 30 40 7

92049-0030

$19.94

92049A

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92062

NOZZLE,6X8,GREEN

92062-1078

$4.69

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92153

BOLT,6X11.7

92153-0848

$3.23

92171

CLAMP

92171-0862

$5.92

92171A

CLAMP

92171-0879

$14.26

92192

TUBE,OIL RETURN

92192-0318

Unavailable

92192A

TUBE,BREATHER

92192-0432

$7.57

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

132A

BOLT-FLANGED-SMALL,6X50

132BD0650

$4.76

132B

BOLT-FLANGED-SMALL,6X60

132BD0660

$5.25

132C

BOLT-FLANGED-SMALL,6X80

132BD0680

$6.25

481

CIRCLIP

481J2100

$1.34

481A

CIRCLIP-TYPE-C,40MM

481J4000

$5.55

601

BEARING-BALL,#6204

601A6204

$12.90

670

O RING,8MM

670D1508

$4.31
