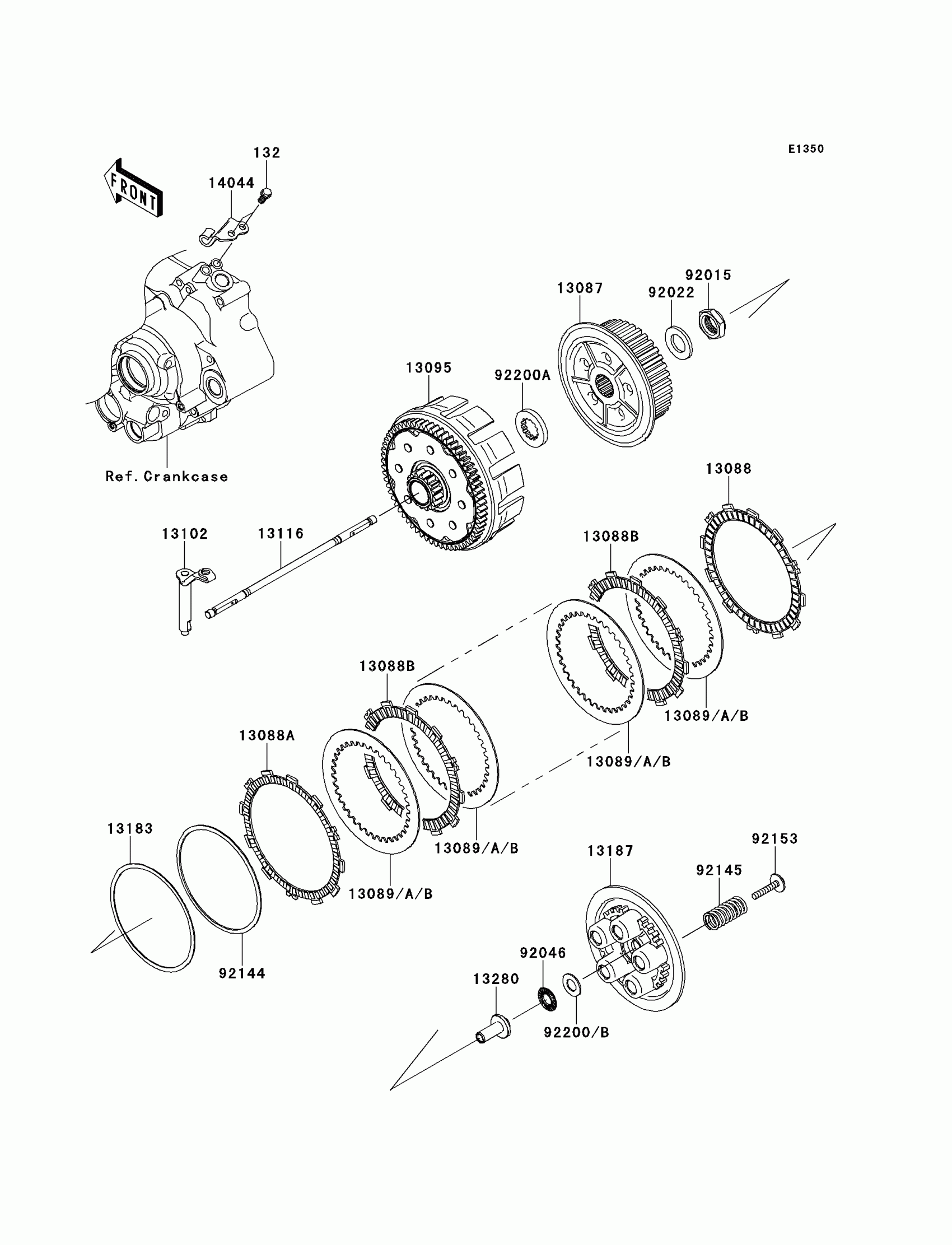

Kawasaki KFX®450R Clutch Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X14
132BD0614
$3.67
13087
HUB-CLUTCH
13087-0015
$119.28
13088
PLATE-FRICTION
13088-0010
$21.49
13088A
PLATE-FRICTION
13088-0029
$22.52
13088B
PLATE-FRICTION
13088-0035
$21.49
13089
PLATE-CLUTCH,T=2.0
13089-1005
Unavailable
13089A
PLATE-CLUTCH,T=1.2
13089-1010
Unavailable
13089B
PLATE-CLUTCH,T=1.6
13089-1095
$12.80
13095
HOUSING-COMP-CLUTCH
13095-0074
$375.31
13102
RELEASE-COMP-CLUTCH
13102-0030
$54.80
13116
ROD-PUSH
13116-0019
$69.79
13183
PLATE,JUDDER SPRING
13183-1722
$18.94
13187
PLATE-CLUTCH OPERATING
13187-0007
$79.08
13280
HOLDER
13280-0067
$33.91
14044
HOLDER-CABLE
14044-0027
$9.09
92015
NUT,20MM
92015-1725
$18.89
92022
WASHER,20.3X36X3.7
92022-1868
$9.51
92046
BEARING-NEEDLE,FNTA-1326
92046-1190
$11.33
92144
SPRING,JUDDER
92144-1591
$13.24
92145
SPRING
92145-0458
Unavailable
92153
BOLT,WP,6X35
92153-1876
$2.61
92200
WASHER,13.4X25X1.0
92200-0045
Unavailable
92200A
WASHER,25X41X5.5
92200-0245
$10.30
92200B
WASHER,13.4X25X1.5
92200-0479
$4.33
