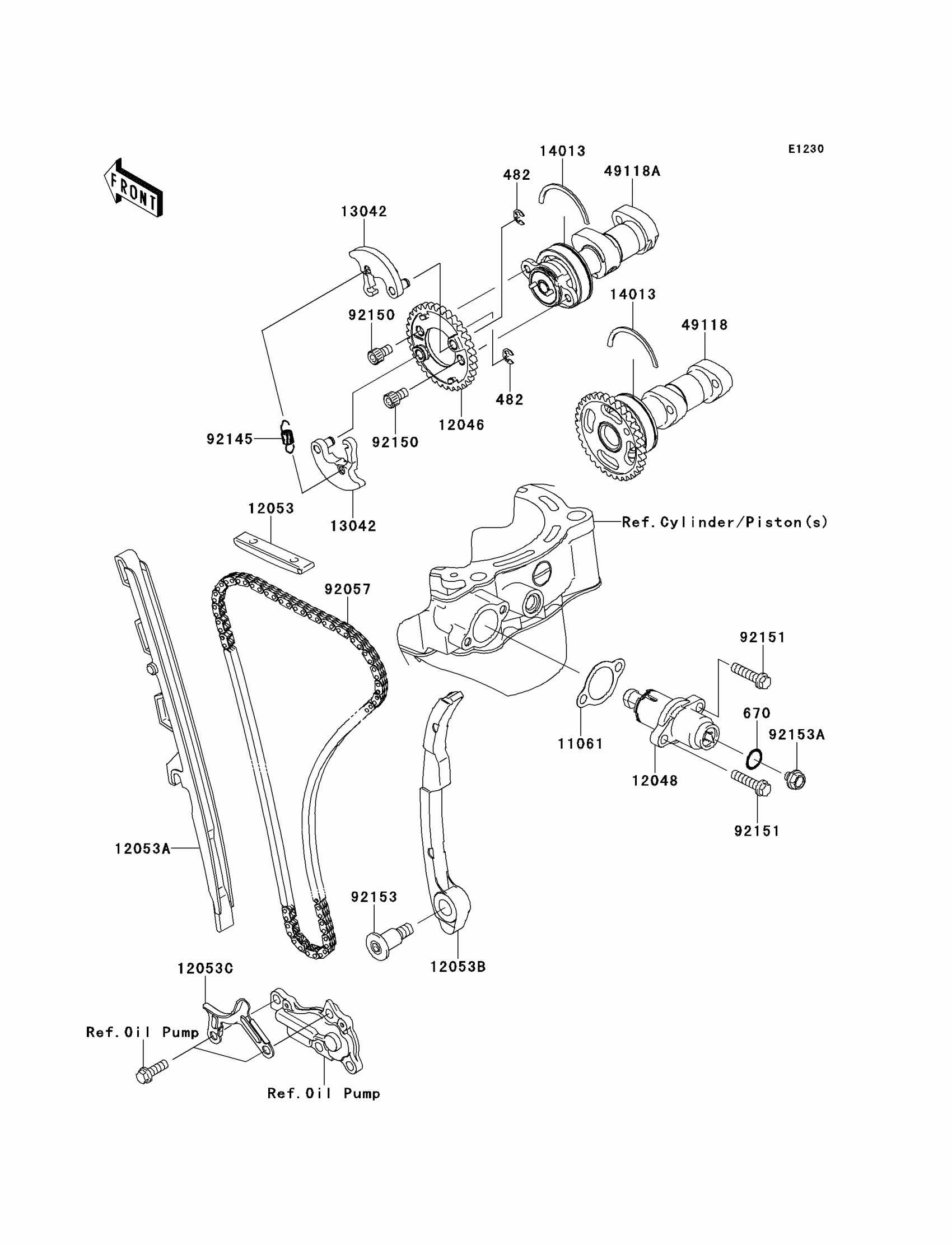

Kawasaki KFX®450R Camshaft(s)/Tensioner Diagram

Description

Price

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36

670

O RING,10MM

670D2010

$1.41

11061

GASKET

11061-0260

$4.24

12046

SPROCKET,34T

12046-0043

$65.29

12048

TENSIONER-ASSY

12048-0050

$103.75

12053

GUIDE-CHAIN,UPP

12053-0051

$19.45

12053A

GUIDE-CHAIN,FR

12053-0078

$49.52

12053B

GUIDE-CHAIN,RR

12053-0079

$73.50

12053C

GUIDE-CHAIN,CRANK

12053-0110

$7.90

13042

WEIGHT

13042-0005

$33.76

14013

RING-POSITION

14013-0001

$4.18

49118

CAMSHAFT-COMP,INTAKE

49118-0095

$221.10

49118A

CAMSHAFT-COMP,EXHAUST

49118-0105

$282.30

92057

CHAIN,CAM,98XRH2010-126M

92057-0078

$51.76

92145

SPRING

92145-0541

$3.09

92150

BOLT,SOCKET,6X10

92150-1650

$3.85

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT,8X29.5

92153-0717

$12.95

92153A

BOLT,6X6

92153-1380

$1.32
