Description

Price

11010

FILTER-ASSY-AIR

11010-0135

Unavailable

11011

CASE-AIR FILTER,UPP

11011-0075

$59.80

11013

ELEMENT-AIR FILTER

11013-0017

$110.76

11065

CAP

11065-0186

$4.83

13280

HOLDER,PLASTIC CAGE

13280-0208

$72.50

13280A

HOLDER,A/C-DUCT

13280-0230

$12.00

13280B

HOLDER,RESONATOR TANK

13280-0231

$5.24

14073

DUCT,A/C,INLET

14073-0115

$37.99

14073A

DUCT,THROBO-A/C

14073-0154

$37.99

39045

DUCT-ASSY

39045-0026

$64.02

49006

BOOT,DRAIN PIPE

49006-0049

$3.48

92002

BOLT,6X100

92002-2274

$4.66

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER

92022-2220

$1.25

92093

SEAL

92093-0104

Unavailable

92093A

SEAL

92093-0116

$7.63

92150

BOLT,6X20

92150-1014

$4.11

92152

COLLAR

92152-1255

$4.13

92161

DAMPER

92161-0538

$3.99

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0837

$7.82

92171A

CLAMP,39MM

92171-0998

$11.40

92171B

CLAMP

92171-1383

$4.40

92171C

CLAMP,AIR FILTER CASE

92171-1426

$5.30

92171D

CLAMP,99.5MM

92171-1596

$4.29

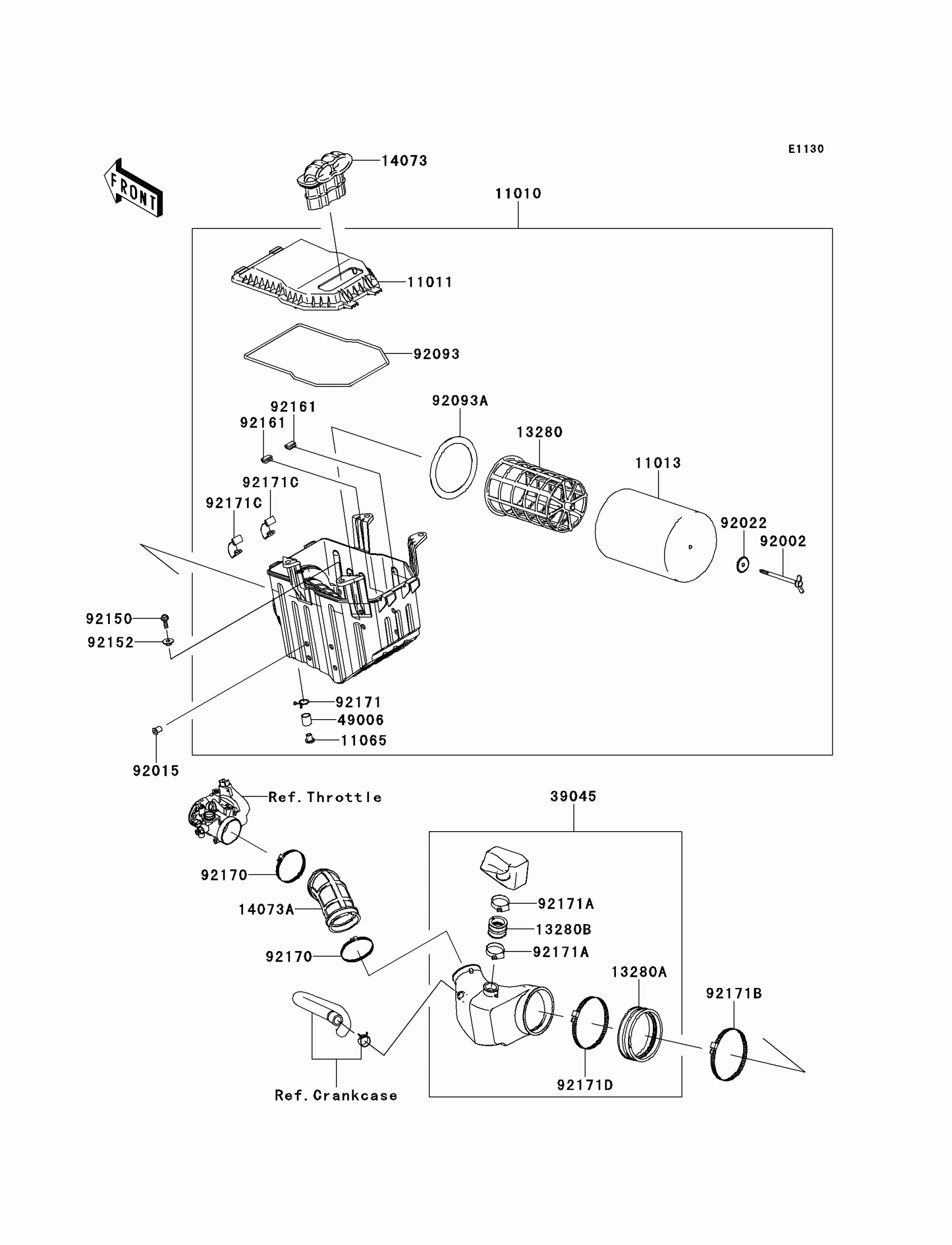

Kawasaki KFX®450R Air Cleaner Diagram

FILTER-ASSY-AIR

CASE-AIR FILTER,UPP

ELEMENT-AIR FILTER

CAP

HOLDER,PLASTIC CAGE

HOLDER,A/C-DUCT

HOLDER,RESONATOR TANK

DUCT,A/C,INLET

DUCT,THROBO-A/C

DUCT-ASSY

BOOT,DRAIN PIPE

BOLT,6X100

NUT,WELL,5MM

WASHER

SEAL

SEAL

BOLT,6X20

COLLAR

DAMPER

CLAMP

CLAMP

CLAMP,39MM

CLAMP

CLAMP,AIR FILTER CASE

CLAMP,99.5MM
