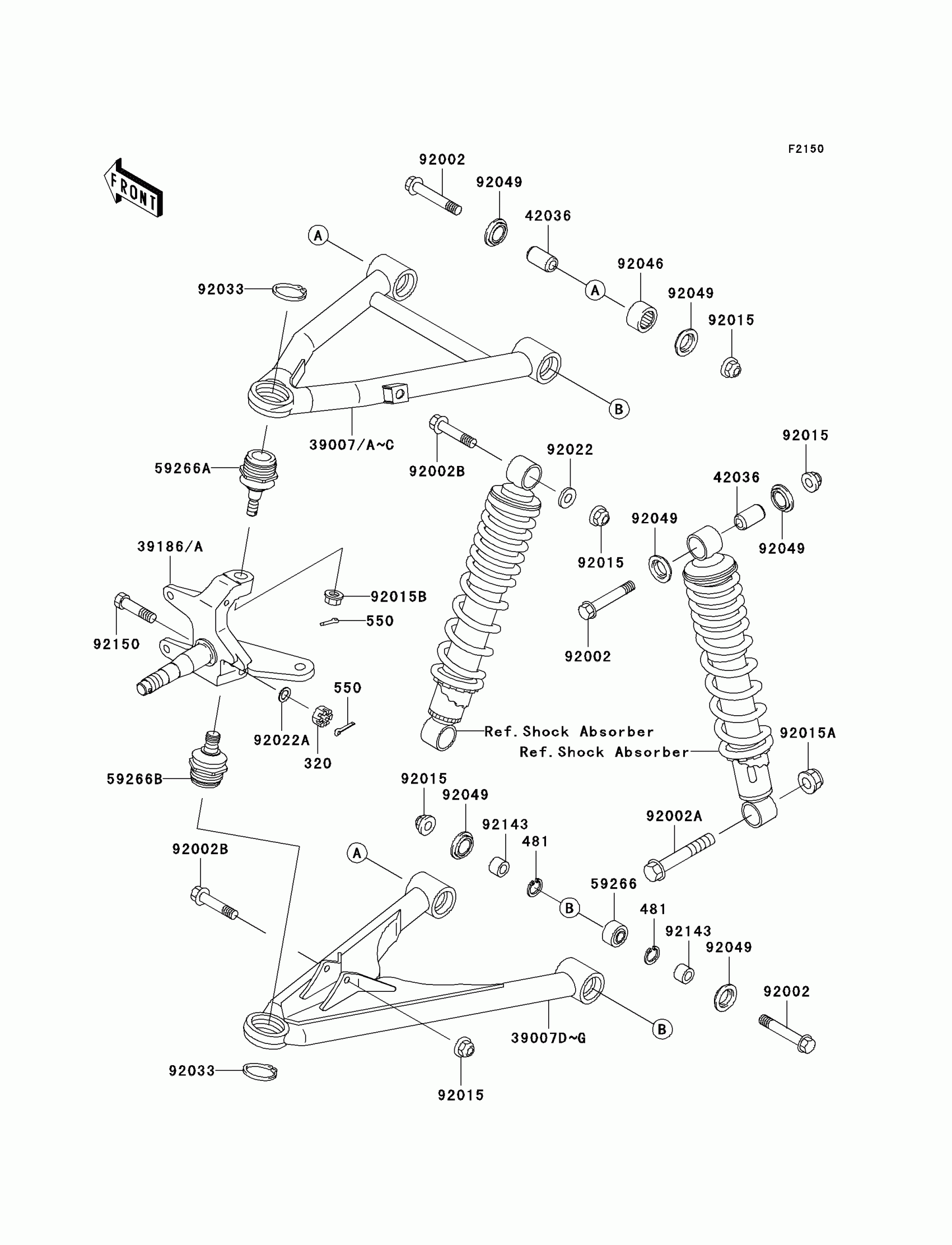

Kawasaki KFX 250 Mojave Suspension Diagram

#

Description
Price

320

NUT-CASTLE

320H1000

$7.88

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

550

PIN COTTER 2.0X15

550D2015

$1.04

39007A

ARM-SUSP,LH,UPP,G.GRAY

39007-1220-HN

Unavailable

39007C

ARM-SUSP,RH,UPP,G.GRAY

39007-1221-HN

Unavailable

39007E

ARM-SUSP,FR,LH,LWR,G.GRAY

39007-1222-HN

Unavailable

39007G

ARM-SUSP,FR,RH,LWR,G.GRAY

39007-1223-HN

$130.10

39186

KNUCKLE,LH

39186-1062

$301.11

39186A

KNUCKLE,RH

39186-1064

$301.11

42036

SLEEVE,10X17X40

42036-1183

$17.97

59266

JOINT-BALL

59266-1011

$65.53

59266A

JOINT-BALL

59266-1075

$97.19

59266B

JOINT-BALL

59266-1098

$106.71

92002

BOLT,FLANGED,10X61

92002-1738

$7.84

92002A

BOLT,FLANGED,12X78

92002-1739

$13.38

92002B

BOLT,FLANGED,10X46

92002-1740

$7.69

92015

NUT,LOCK,10MM

92015-1597

$5.52

92015A

NUT,LOCK,12MM

92015-1617

$8.98

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92022

WASHER,10X22X3.2

92022-176

$4.78

92022A

WASHER,10.2X16X1

92022-1829

$4.31

92033

RING-SNAP,30MM

92033-1218

$8.12

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92143

COLLAR,10X17X12

92143-1010

$9.18

92150

BOLT,10X44

92150-1226

$11.51
