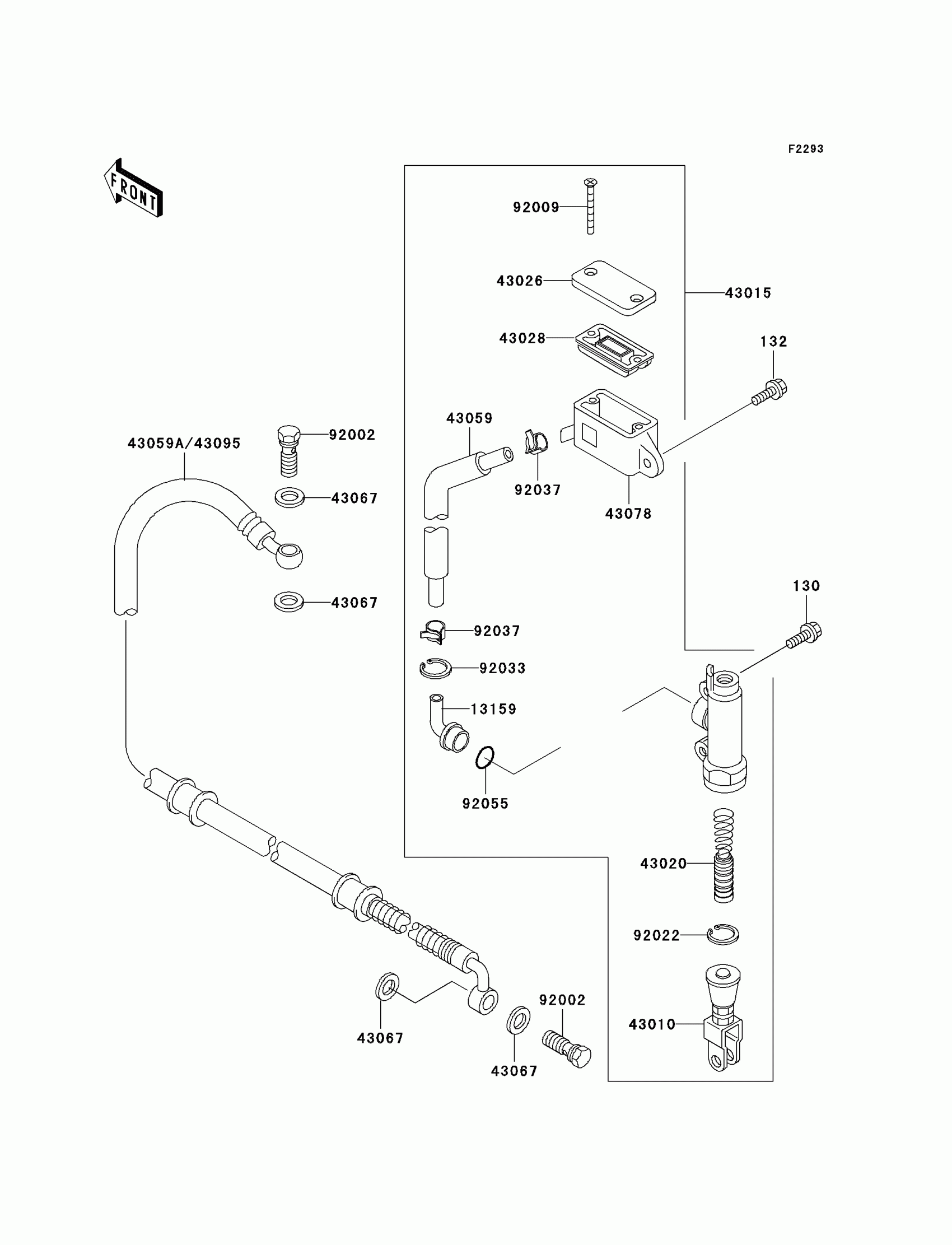

Kawasaki KFX 250 Mojave Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X14

130S0814

$4.01

132

BOLT-FLANGED-SMALL

132G0614

$1.42

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE,RR

43010-1060

$70.58

43015

CYLINDER-ASSY-MASTER,RR

43015-1326

$413.56

43020

PISTON-COMP-BRAKE

43020-1063

$65.22

43026

CAP-BRAKE

43026-1022

$51.90

43028

DIAPHRAGM

43028-1061

$16.18

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1369

$36.75

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR

43078-1078

$33.90

43095

HOSE-BRAKE,RR

43095-1250

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,5MM

92009-1409

$5.86

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable
