Description

Price

601

BEARING-BALL,#6008UU

601A6008UU

$61.39

11012

CAP,WHEEL

11012-1969

$5.65

11046

BRACKET,CALIPER

11046-1062

$57.89

13091

HOLDER,DISC PLATE

13091-1449

$122.23

41046

HOUSING-BEARING

41046-1086

$295.90

41068

AXLE,RR

41068-1235

$747.90

41086

FLANGE,REAR SPROCKET

41086-1070

$117.10

42041

SPROCKET-HUB,43T

42041-1433

$56.22

42045

NUT,CASTLE,18MM

42045-018

$9.23

43058

RING,SNAP

43058-1060

$5.83

49030

HUB,RR

49030-1078

$156.38

92002

BOLT,10X30

92002-1388

$9.48

92002A

BOLT,10MM

92002-1459

$5.33

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,LOCK,37MM

92015-1545

$19.74

92022

WASHER,37.5X48X2.3

92022-1746

$7.98

92033

RING-SNAP,95MM

92033-1216

$39.96

92033A

RING-SNAP,75MM

92033-1217

$25.51

92041

COTTER,4.0X35

92041-1053

$3.92

92049

SEAL-OIL

92049-1237

$16.13

92055

RING-O,76MM

92055-1213

$9.57

92055A

RING-O,38MM

92055-1317

$4.60

92057

CHAIN,DRIVE,EK520SR-O2X90L

92057-1254

$246.21

92058

JOINT-CHAIN,DRIVE,EK520SR-O2

92058-1060

$10.26

92143

COLLAR,L=159

92143-1036

$50.11

92200

WASHER,18.5X52X4.5

92200-1474

$8.10

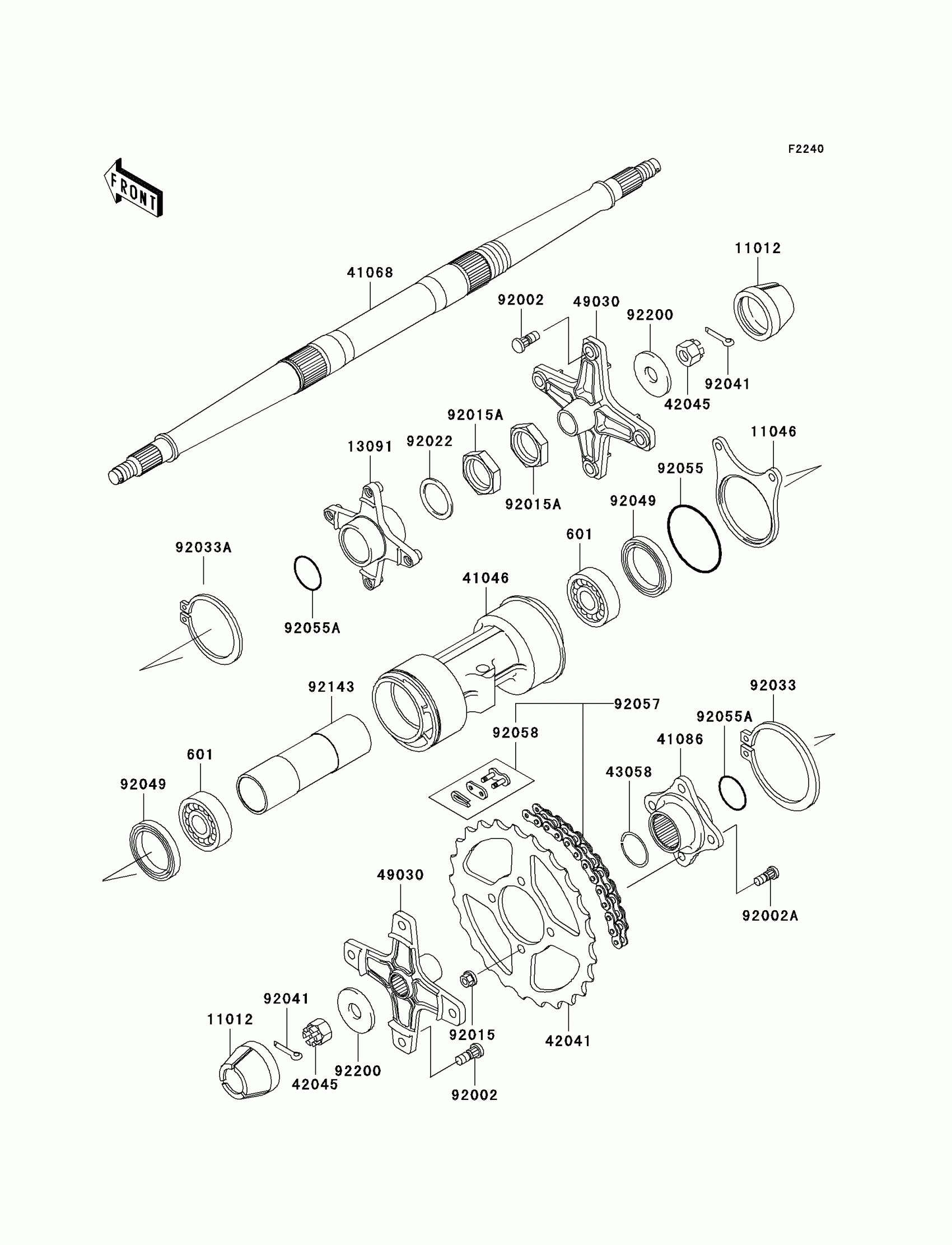

Kawasaki KFX 250 Mojave Rear Hub Diagram
