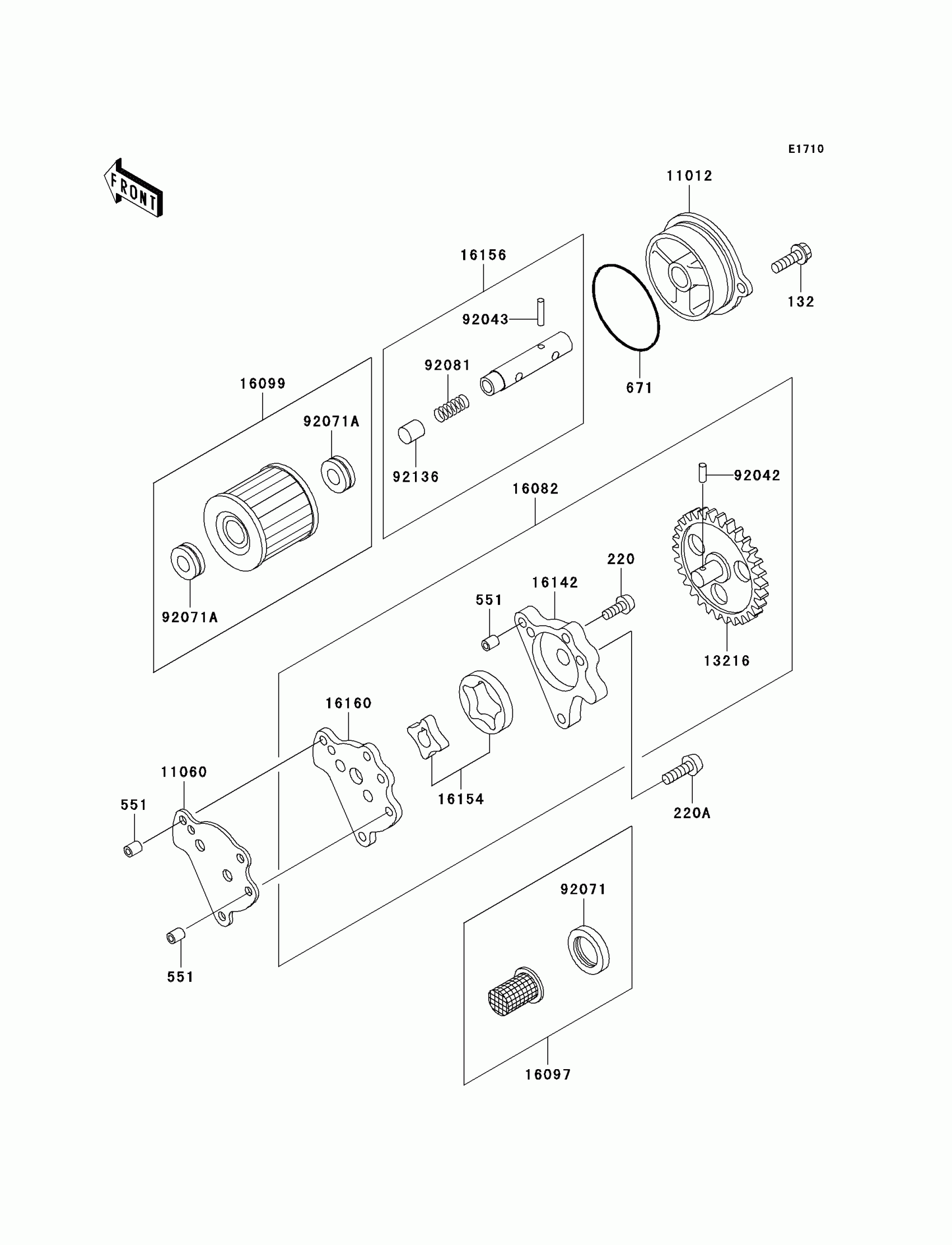

Kawasaki KFX 250 Mojave Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

551

PIN-DOWEL,6X8

551A0608

$3.53

671

O RING,55MM

671B2555

$4.67

11012

CAP,OIL FILTER

11012-1695

$74.53

11060

GASKET,OIL PUMP

11060-1130

Unavailable

13216

GEAR-COMP,OIL PUMP

13216-1096

$120.64

16082

PUMP-ASSY-OIL

16082-1082

$198.34

16097

FILTER-ASSY-OIL

16097-1001

$9.30

16099

ELEMENT-OIL FILTER

16099-004

$7.06

16142

COVER-PUMP

16142-1056

$49.76

16154

ROTOR-PUMP

16154-1008

$35.48

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

$18.77

16160

BODY,OIL PUMP

16160-1069

$35.13

92042

PIN,DOWEL,4X12.8

92042-041

$5.71

92043

PIN,SPRING,2.2X13.5

92043-123

$4.17

92071

GROMMET,OIL STRAINER

92071-100

$4.14

92071A

GROMMET,OIL FILTER

92071-101

$4.14

92081

SPRING,PISTON

92081-043

$4.14

92136

VALVE

92136-002

$4.14
