Description

Price

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,8X25

130G0825

$2.89

130B

BOLT-FLANGED,8X30

130J0830

$4.15

130C

BOLT-FLANGED

130Z0865

$7.92

180

BOLT-UPSET-WS,6X16

180G0616

$2.52

220

SCREW-PAN-CROSS

220F0630

$1.77

39027

BUMPER-FRONT

39027-1051

$22.63

55020

GUARD,FRONT HUB,INNER,LH

55020-1223

$46.15

55020A

GUARD,FRONT HUB,INNER,RH

55020-1224

$46.15

55020B

GUARD,FRONT HUB,OUTER

55020-1263

$30.47

55020D

GUARD,ENGINE,G.GRAY

55020-1458-HN

$72.48

55020E

GUARD,RR,P.C.GRAY

55020-1704-CQ

$48.95

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,8MM

92015-1432

$6.57

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022A

WASHER,7X16X1.2

92022-1344

$3.92

92027

COLLAR,10X21.3X7

92027-1817

$15.14

92027A

COLLAR,6.8X10X20

92027-1856

$6.27

92075

DAMPER,INNER

92075-1822

$5.24

92075A

DAMPER

92075-1828

$6.45

92075B

DAMPER

92075-1829

$7.69

92075C

DAMPER

92075-1872

$21.11

92160

DAMPER

92160-1102

$1.38

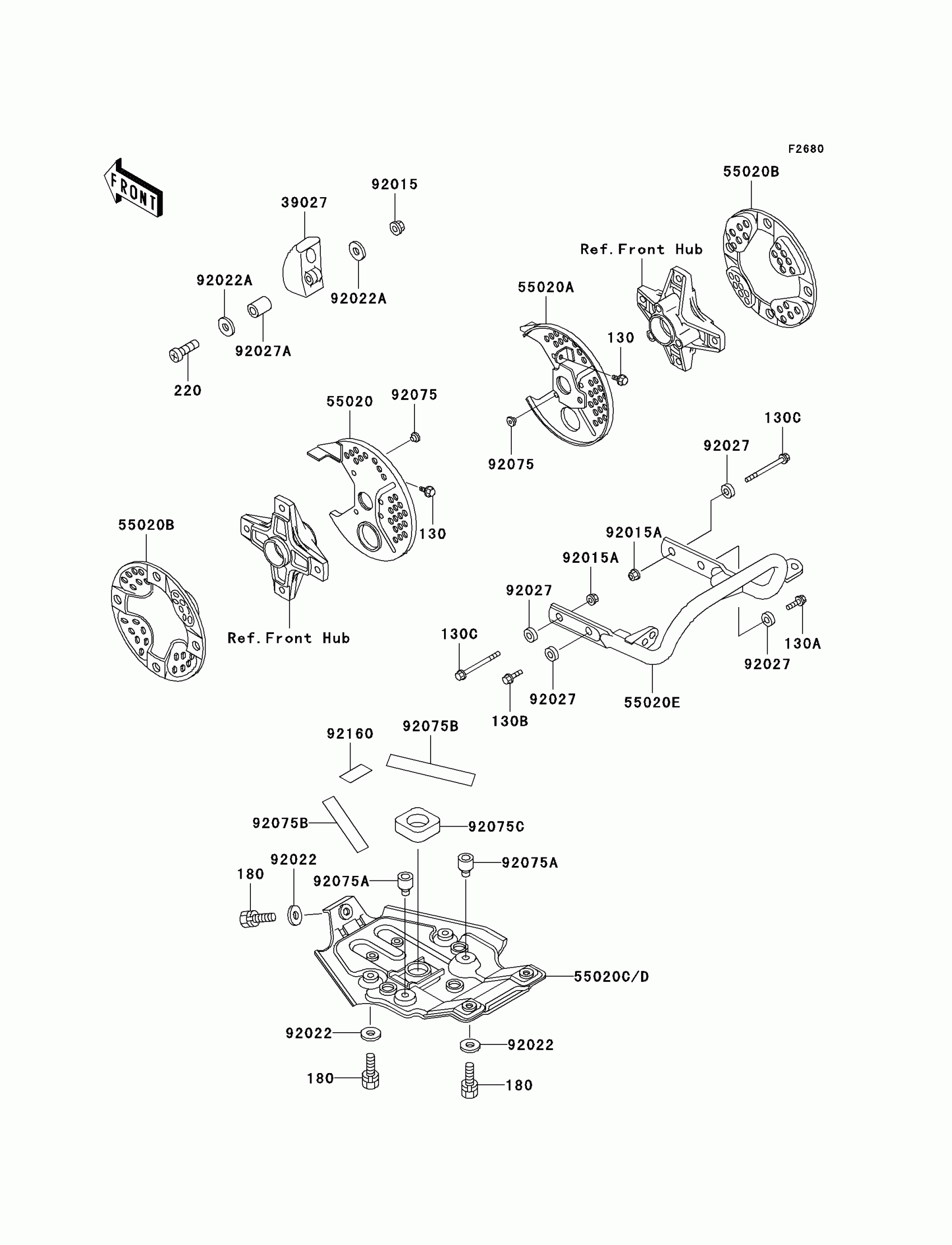

Kawasaki KFX 250 Mojave Guard(s) Diagram

BOLT-FLANGED,6X10

BOLT-FLANGED,8X25

BOLT-FLANGED,8X30

BOLT-FLANGED

BOLT-UPSET-WS,6X16

SCREW-PAN-CROSS

BUMPER-FRONT

GUARD,FRONT HUB,INNER,LH

GUARD,FRONT HUB,INNER,RH

GUARD,FRONT HUB,OUTER

GUARD,ENGINE,G.GRAY

GUARD,RR,P.C.GRAY

NUT,FLANGED,6MM,BLACK

NUT,8MM

WASHER,6.5X20X1.6

WASHER,7X16X1.2

COLLAR,10X21.3X7

COLLAR,6.8X10X20

DAMPER,INNER

DAMPER

DAMPER

DAMPER

DAMPER
