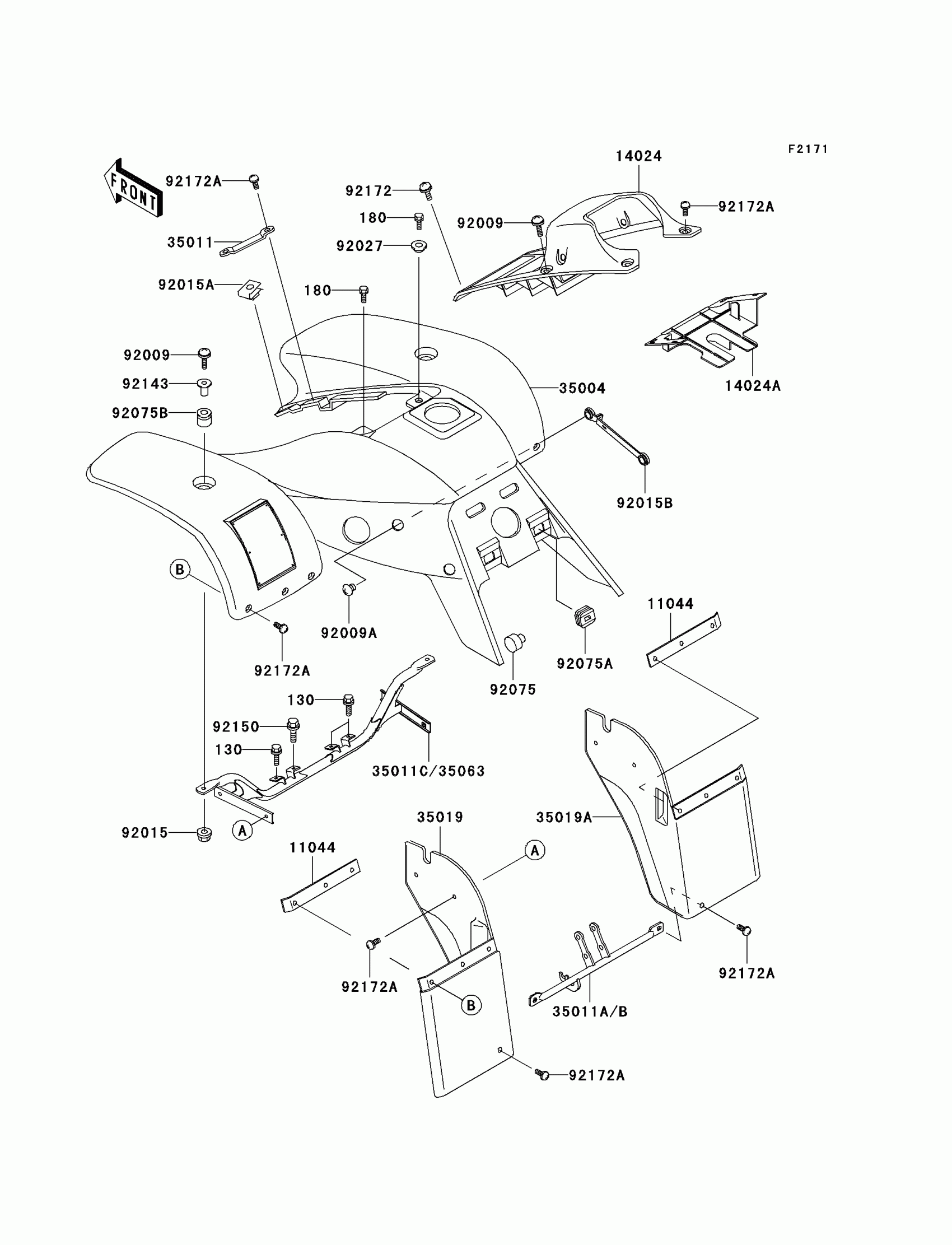

Kawasaki KFX 250 Mojave Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130P0612

$3.84

180

BOLT-UPSET-WS,6X35

180D0635

Unavailable

11044

BRACKET,FLAP

11044-1934

$11.40

14024

COVER,FRONT FENDER,BLACK

14024-1268-6D

$39.14

14024A

COVER,FRONT FENDER,INNER

14024-1297

$11.30

35004

FENDER-FRONT,L.GREEN

35004-1379-6W

$197.99

35011

STAY,FRONT FENDER

35011-1324

$12.14

35011B

STAY,FLAP,G.GRAY

35011-1637-HN

Unavailable

35019

FLAP,LH

35019-1172

$26.21

35019A

FLAP,RH

35019-1173

$26.21

35063

STAY,FRONT FENDER

35063-1169

$43.93

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92009A

SCREW,16MM

92009-1508

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92015B

NUT

92015-1701

$12.48

92027

COLLAR,L=5.6

92027-1933

$5.78

92075

DAMPER,DUAL SEAT

92075-023

$4.92

92075A

DAMPER

92075-1834

$9.18

92075B

DAMPER,CASE

92075-222

$7.34

92143

COLLAR,L=9.6

92143-1016

$6.22

92150

BOLT,FLANGED,6X16

92150-1358

$4.39

92172

SCREW,6X18

92172-0002

$2.80

92172A

SCREW,6X14

92172-0004

$2.80
