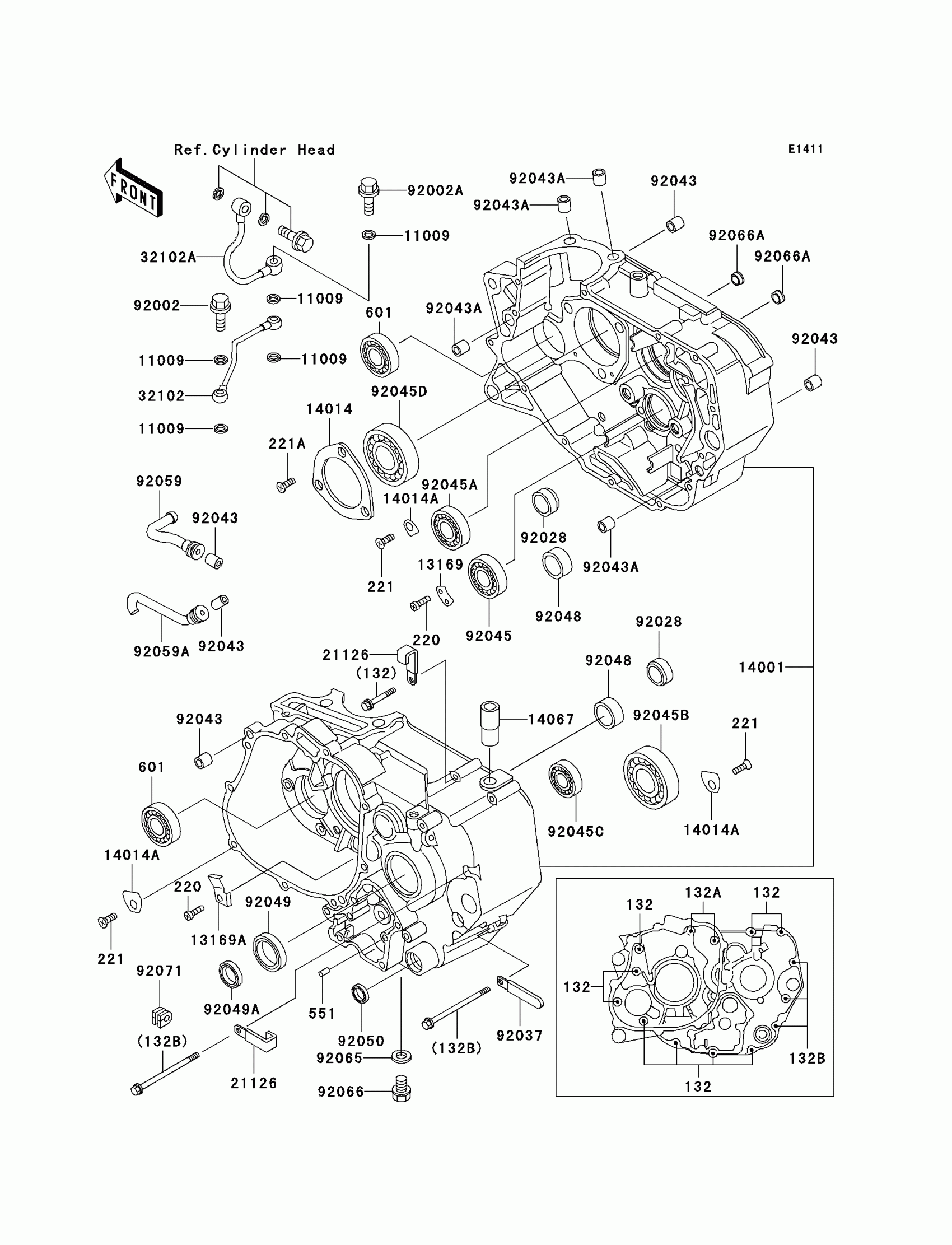

Kawasaki KFX 250 Mojave Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

132A

BOLT-FLANGED-SMALL,6X75

132J0675

$4.89

132B

BOLT-FLANGED-SMALL

132J0695

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

221

SCREW-CSK-CROS,6X12

221B0612

$2.06

221A

SCREW-CSK-CROS,6X16

221B0616

$0.59

551

PIN-DOWEL,6X12

551A0612

$0.94

601

BEARING-BALL,#6204

601A6204

$12.90

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

13169

PLATE,GEAR CHANGE DRUM

13169-014

$5.23

13169A

PLATE

13169-1691

$5.18

14001

SET-CRANKCASE

14001-5354

$945.31

14014

PLATE-POSITION,CRANK BEARING

14014-1004

$11.61

14014A

PLATE-POSITION

14014-1057

$4.69

14067

FITTING,BREATHER

14067-006

$21.09

21126

CLAMP,WIRING HARNESS

21126-008

$4.73

32102

PIPE

32102-1127

$42.77

32102A

PIPE

32102-1187

$64.39

92002

BOLT,BANJO,10X25

92002-1170

$9.51

92002A

BOLT,BANJO,10X36.5

92002-1751

$13.38

92028

BUSHING,23X30X13

92028-132

$38.06

92037

CLAMP,L=45

92037-1539

$5.00

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,10.1X12X14

92043-4009

$6.22

92045

BEARING-BALL,#6905

92045-036

$27.88

92045A

BEARING-BALL,TMB204 JR

92045-1041

$32.24

92045B

BEARING-BALL,TM-SX0597LU

92045-1127

$43.34

92045C

BEARING-BALL,6804

92045-1171

$29.86

92045D

BEARING-BALL

92045-1172

$48.87

92048

RACE,26X33X13

92048-1057

$31.78

92049

SEAL-OIL,TC32457

92049-1159

$8.60

92049A

SEAL-OIL

92049-1541

$9.79

92050

SEAL-OIL

92050-082

$8.58

92059

TUBE

92059-1694

$24.61

92059A

TUBE

92059-1695

$39.96

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066A

PLUG

92066-1282

$6.51

92071

GROMMET

92071-1139

$6.38
