2004 Kawasaki KFX 250 Mojave Clutch Diagram

← All diagrams

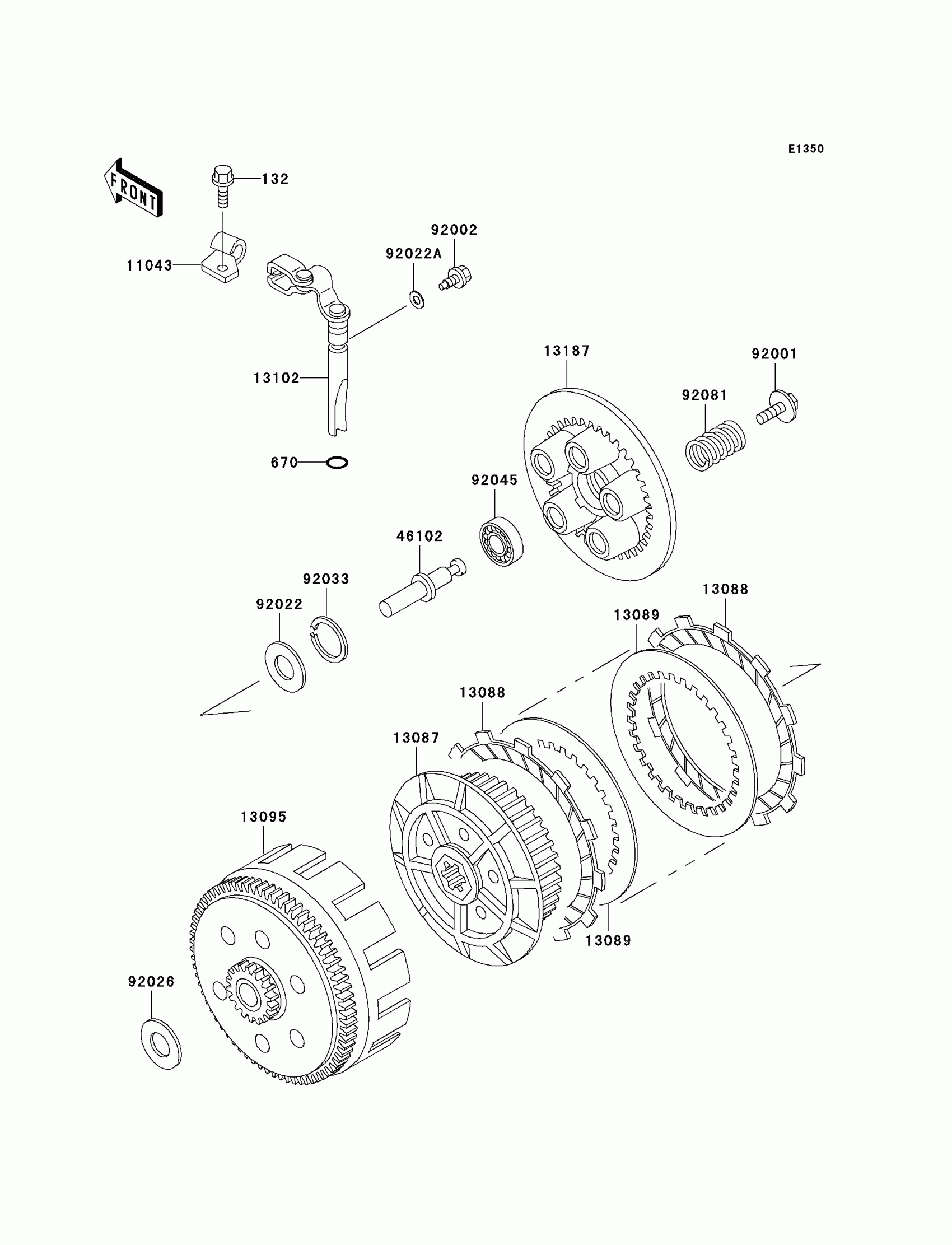

Find the part on the Clutch diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KFX 250 Mojave Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

670

O RING,9MM

670B1509

1
Out of stock

11043

BRACKET,CLUTCH CABLE

11043-1931

1
Out of stock

13087

HUB,CLUTCH

13087-1001

1
Out of stock

13088

PLATE-FRICTION

13088-1057

1
Out of stock

13089

PLATE-CLUTCH,T=1.6

13089-013

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1148

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1064

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1008

1
Out of stock

46102

ROD,CLUTCH PUSH

46102-1033

1
Out of stock

92001

BOLT,CLUTCH SPRING,6X18

92001-1576

1
Out of stock

92002

BOLT,FLANGED,6X9.5

92002-1356

1
Out of stock

92022

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92026

SPACER,20.1X30X4

92026-1274

1
Out of stock

92033

RING-SNAP,18MM

92033-029

1
Out of stock

92045

BEARING-BALL,6001C3ML01

92045-1235

1
Out of stock

92081

SPRING,CLUTCH

92081-083

1
Out of stock
